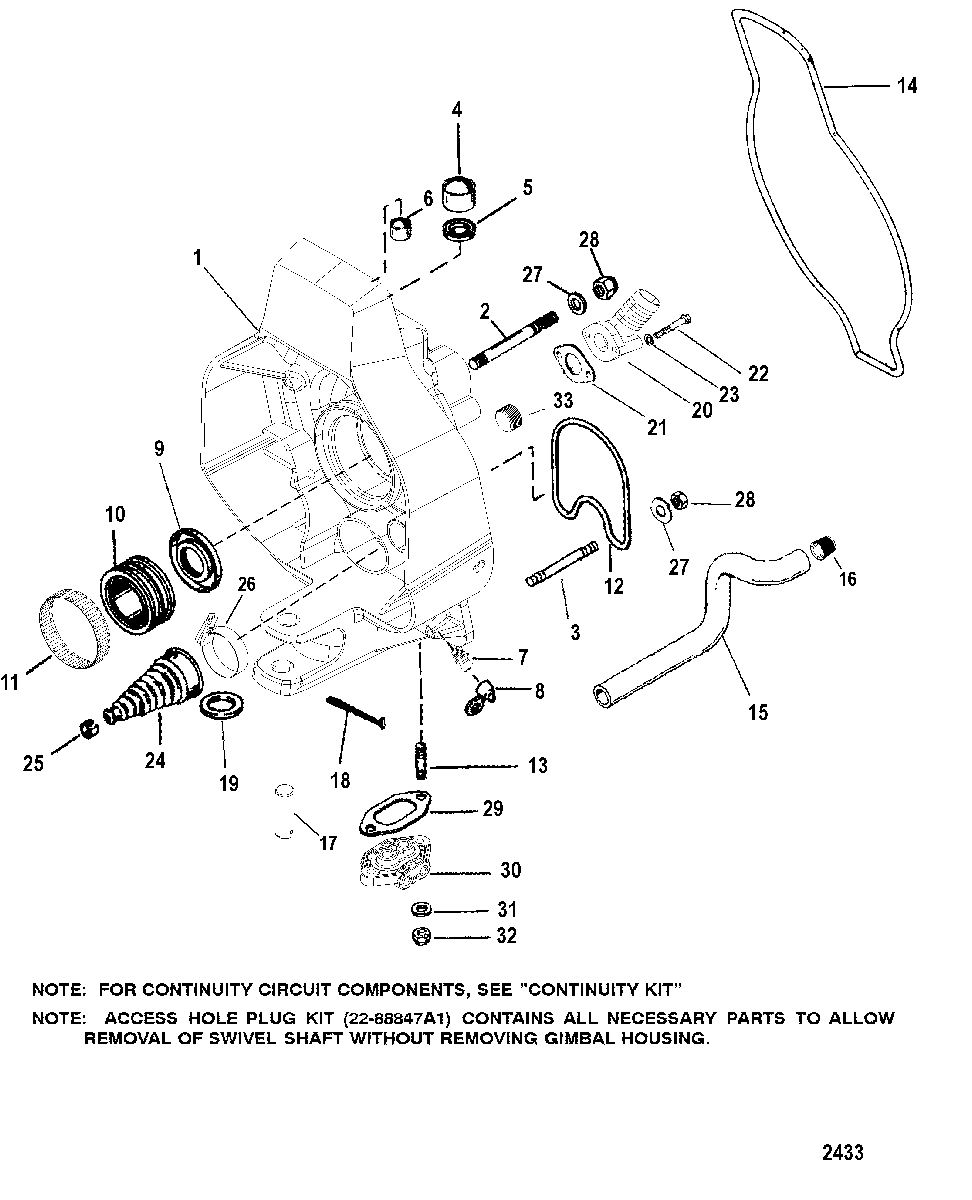

Gimbal Housing для Mercruiser - BRAVO X THREE 0M100001 THRU 0W249999

  • №
    Артикул
    Название
  • 1
    8M0096216 GIMBAL HOUSING ASSEMBLY
    GIMBAL HOUSING ASSEMBLY
  • 2
    16-56296 STUD, (.437-20 x 4.750)
    STUD, (.437-20 x 4.750)
  • 3
    16-818834 STUD, (.437-20 x 4.250)
    STUD, (.437-20 x 4.250)
  • 4
    23-983571 BUSHING
    BUSHING
  • 5
    26-8M2005029 SEAL, Oil
    SEAL, Oil
  • 6
    23-98356 BUSHING
    BUSHING
  • 7
    22-74036 FITTING, Grease
    (Use with greased bearing)
    FITTING, Grease
    (Use with greased bearing)
  • 7
    10-8M2015913 PLUG, (.250-28 x .320)
    (Use with non-greased bearing)
    PLUG, (.250-28 x .320)
    (Use with non-greased bearing)
  • 8
    19-77633Q LUBRICAP
    LUBRICAP
  • 9
    26-88416 SEAL, Oil
    SEAL, Oil
  • 10
    30-879194A01 BEARING ASSEMBLY
    BEARING ASSEMBLY
  • 11
    61075 TOLERANCE RING
    TOLERANCE RING
  • 12
    41802 SEAL, Rubber
    SEAL, Rubber
  • 13
    16-56766 STUD, (.250-20/.250-28 x 1.380)
    STUD, (.250-20/.250-28 x 1.380)
  • 14
    43713 SEAL
    SEAL
  • 15
    32-8M0090859 HOSE
    HOSE
  • 16
    41674T INSERT
    INSERT
  • 17
    17-8M0073409 SWIVEL PIN, Lower
    SWIVEL PIN, Lower
  • 18
    18-54929 COTTER PIN
    COTTER PIN
  • 19
    12-32518 WASHER
    WASHER
  • 20
    22-8M0081543 CONNECTOR
    SN# 0W099999 & Below
    CONNECTOR
    SN# 0W099999 & Below
  • 20
    865470 HOUSING, Inlet, Male Quick Connect
    SN# 0W100000 & Up
    HOUSING, Inlet, Male Quick Connect
    SN# 0W100000 & Up
  • 21
    27-8M0109475 GASKET
    GASKET
  • 22
    10-78038 SCREW, (.250-20 x 1.75)
    SCREW, (.250-20 x 1.75)
  • 23
    13-21272 LOCKWASHER, (.250)
    LOCKWASHER, (.250)
  • 24
    74639A2 BELLOWS ASSEMBLY
    BELLOWS ASSEMBLY
  • 25
    54-8M0090424 CLAMP
    CLAMP
  • 26
    54-815504320 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 27
    12-34567 WASHER
    WASHER
  • 28
    11-34933 NUT, (.437-20) Stainless Steel
    NUT, (.437-20) Stainless Steel
  • 29
    27-988231 GASKET
    GASKET
  • 30
    8M0137703 MANIFOLD ASSEMBLY
    MANIFOLD ASSEMBLY
  • 31
    13-78968 LOCKWASHER, Internal (.250)
    LOCKWASHER, Internal (.250)
  • 32
    11-8267119 NUT, (.250-28)
    NUT, (.250-28)
  • 33
    22-428611 FITTING, Pipe - Brass (.750-14)
    FITTING, Pipe - Brass (.750-14)
  • -
    22-88847A1 PLUG KIT, Access Hole
    (Access Hole Plug Kit Contains All Necessary Parts To Allow Removal Of Swivel Shaft With Out Removing Gimbal Housing)
    PLUG KIT, Access Hole
    (Access Hole Plug Kit Contains All Necessary Parts To Allow Removal Of Swivel Shaft With Out Removing Gimbal Housing)
