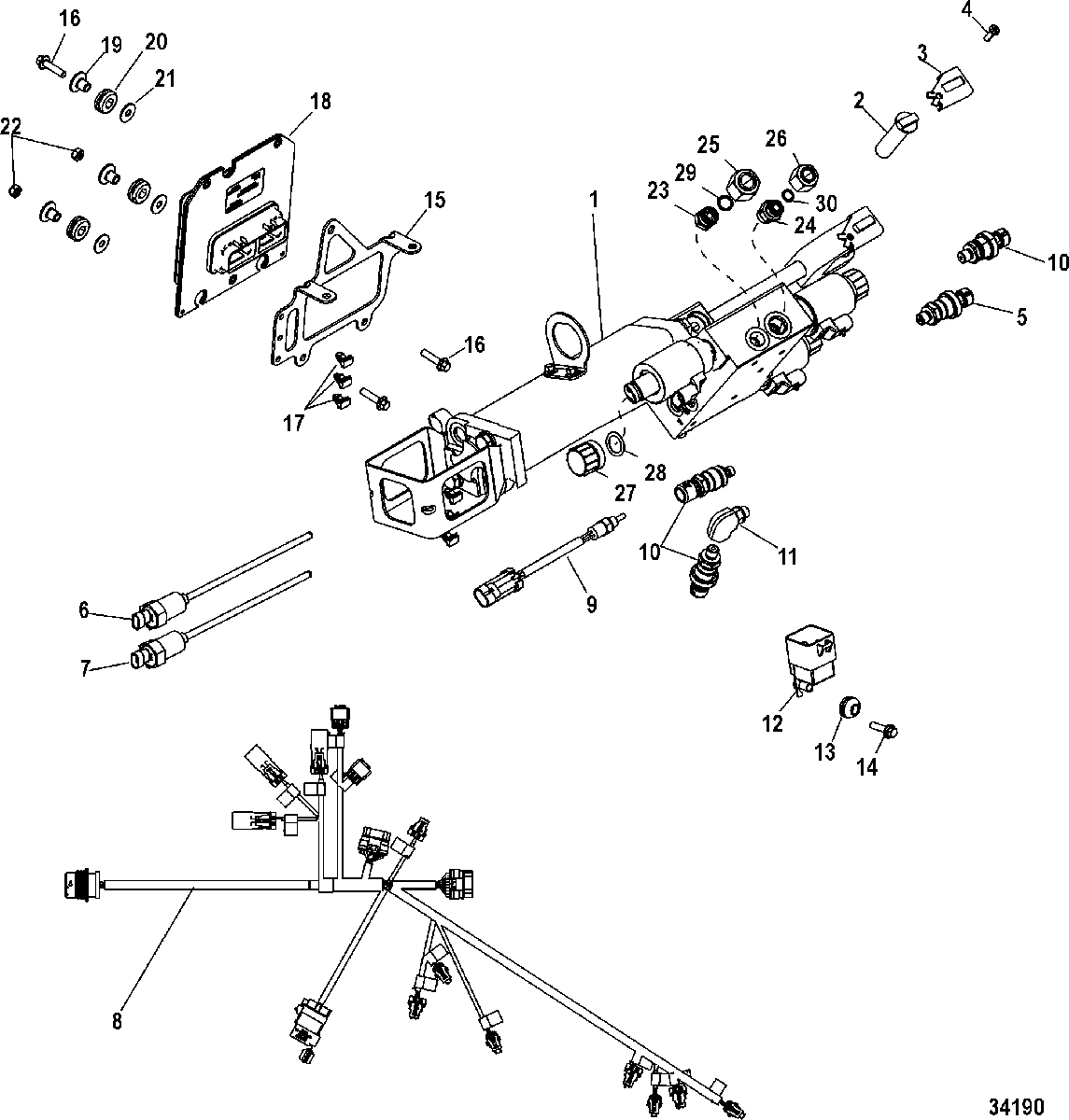

Steering Actuator, Axius (Gen I), Sensors Screw In для Mercruiser - BRAVO X ONE 0W250000 & Up
-
№АртикулНазвание
-
18M0057416 STEERING ACTUATOR ASSEMBLY, Starboard
(Gas) (Refer to Service Bulletin SMC-09-06)STEERING ACTUATOR ASSEMBLY, Starboard
(Gas) (Refer to Service Bulletin SMC-09-06) -
18M0057416 STEERING ACTUATOR ASSEMBLY, Port
(Gas) (Refer to Service Bulletin SMC-09-06)STEERING ACTUATOR ASSEMBLY, Port
(Gas) (Refer to Service Bulletin SMC-09-06) -
18M0057413 STEERING ACTUATOR ASSEMBLY, Starboard
(Diesel)STEERING ACTUATOR ASSEMBLY, Starboard
(Diesel) -
18M0057413 STEERING ACTUATOR ASSEMBLY, Port
(Diesel)STEERING ACTUATOR ASSEMBLY, Port
(Diesel) -
2NSS NOT SOLD SEPARATE, CLEVIS PINNOT SOLD SEPARATE, CLEVIS PIN
-
38M2010043 RETAINERRETAINER
-
410-4000328 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
58M0007568 TRANSDUCER, 500 PSITRANSDUCER, 500 PSI
-
6897345T14 SENSOR, Position, Secondary-DecreasingSENSOR, Position, Secondary-Decreasing
-
7897345T15 SENSOR, Position, Primary-IncreasingSENSOR, Position, Primary-Increasing
-
884-897345T13 HARNESSHARNESS
-
98M0142542 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
108M6001284 TRANSDUCERTRANSDUCER
-
11NSS NOT SOLD SEPARATE, ELBOWNOT SOLD SEPARATE, ELBOW
-
12NSS NOT SOLD SEPARATE, RELAYNOT SOLD SEPARATE, RELAY
-
13NSS NOT SOLD SEPARATE, GROMMETNOT SOLD SEPARATE, GROMMET
-
14NSS NOT SOLD SEPARATE, SCREWNOT SOLD SEPARATE, SCREW
-
15NSS NOT SOLD SEPARATE, BRACKETNOT SOLD SEPARATE, BRACKET
-
16NSS NOT SOLD SEPARATE, SCREWNOT SOLD SEPARATE, SCREW
-
1754-804352 CLIPCLIP
-
18NSS NOT SOLD SEPARATE, THRUST VECTOR MODULENOT SOLD SEPARATE, THRUST VECTOR MODULE
-
1923-856954 BUSHINGBUSHING
-
2025-834985 GROMMETGROMMET
-
2112-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
22NSS NOT SOLD SEPARATE, NUTNOT SOLD SEPARATE, NUT
-
2322-8M2007090 FITTING, (-6) ORF TO ( -8) ORB, Straight
(Gas)FITTING, (-6) ORF TO ( -8) ORB, Straight
(Gas) -
2322-8M2008375 FITTING, Adapter (-6ORF TO -8ORB), 90 Degree
(Diesel)FITTING, Adapter (-6ORF TO -8ORB), 90 Degree
(Diesel) -
2422-8M2015982 FITTING, Adapter (-6ORF TO -8ORB)FITTING, Adapter (-6ORF TO -8ORB)
-
2519-8M2013299 CAPCAP
-
2619-8M2013298 CAPCAP
-
2711-8M2013313 NUTNUT
-
2825-8M2013312 O-RINGO-RING
-
2925-8M2001117 O-RING, (.489 X .070)O-RING, (.489 X .070)
-
3025-8M2004603 O-RINGO-RING
-
-879172A19 DUST CAP KIT
(Refer to Service Bulletin SMC-09-06)DUST CAP KIT
(Refer to Service Bulletin SMC-09-06)
