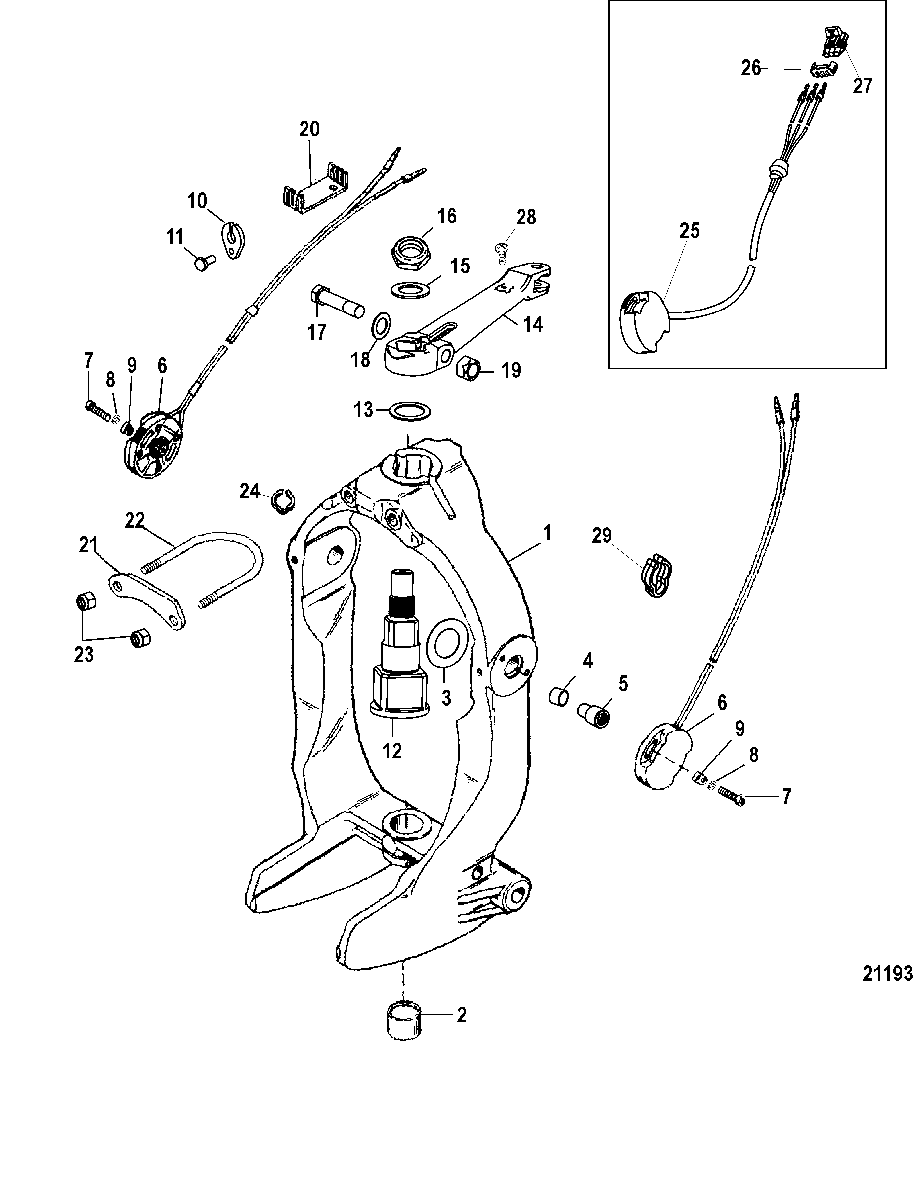

Gimbal Ring and Steering Lever для Mercruiser - BRAVO X ONE 0W250000 & Up

№

Артикул

Название
1

8M0062440 GIMBAL RING ASSEMBLY
(Gas Applications) SN# 0W465664 & Below

GIMBAL RING ASSEMBLY
(Gas Applications) SN# 0W465664 & Below

167 570 ₽
1

8M0062440 GIMBAL RING ASSEMBLY
(Diesel Applications) SN# 0W403949 & Below

GIMBAL RING ASSEMBLY
(Diesel Applications) SN# 0W403949 & Below

167 570 ₽
1

8M0062440 GIMBAL RING ASSEMBLY
(Gas Applications) SN# 0W465665 & Up

GIMBAL RING ASSEMBLY
(Gas Applications) SN# 0W465665 & Up

167 570 ₽
1

8M0062440 GIMBAL RING ASSEMBLY
(Diesel Applications) SN# 0W403950 & Up

GIMBAL RING ASSEMBLY
(Diesel Applications) SN# 0W403950 & Up

167 570 ₽
1

8M0063519 GIMBAL RING ASSEMBLY
(SEACORE)

GIMBAL RING ASSEMBLY
(SEACORE)

164 860 ₽
2

23-847638 BUSHING

BUSHING

4 410 ₽
3

12-41721 WASHER

WASHER

270 ₽
4

23-847637 BUSHING

BUSHING

1 910 ₽
5

10-86801 SCREW, Hinge Pin

SCREW, Hinge Pin

2 670 ₽
6

805320A03 SWITCH ASSEMBLY, Trim and Limit
(Magnum Series Transom)

SWITCH ASSEMBLY, Trim and Limit
(Magnum Series Transom)

13 140 ₽
7

10-37978 SCREW, (#10-32 x .750) Stainless Steel

SCREW, (#10-32 x .750) Stainless Steel

200 ₽
8

13-26996 LOCKWASHER, (#10) Stainless Steel

LOCKWASHER, (#10) Stainless Steel

60 ₽
9

57008 RETAINER

RETAINER

290 ₽
10

54-12078 CLAMP

CLAMP

890 ₽
11

10-28635 SCREW, (.250-20 x .620) Stainless Steel

SCREW, (.250-20 x .620) Stainless Steel

140 ₽
12

98230A1 SHAFT ASSEMBLY, Upper Swivel

SHAFT ASSEMBLY, Upper Swivel

63 660 ₽
12

866718A01 SHAFT ASSEMBLY, Upper Swivel
(SEACORE)

SHAFT ASSEMBLY, Upper Swivel
(SEACORE)

53 570 ₽
13

12-98548 WASHER, (1.125 )

WASHER, (1.125 )

510 ₽
14

866322A01 LEVER ASSEMBLY, Steering

LEVER ASSEMBLY, Steering

28 350 ₽
15

12-85344 WASHER, (.750 Inside Diameter)

WASHER, (.750 Inside Diameter)

170 ₽
16

11-8M2014641 NUT, (.750-16)

NUT, (.750-16)

1 050 ₽
17

10-807204 SCREW, (.437-20 x 2.00)

SCREW, (.437-20 x 2.00)

340 ₽
18

12-861854 WASHER, (.453 x .750 x .032) Stainless Steel

WASHER, (.453 x .750 x .032) Stainless Steel

290 ₽
19

11-8M2008293 NUT, (.437-20)

NUT, (.437-20)

100 ₽
20

79146 RETAINER

RETAINER

360 ₽
21

816510T BRACKET

BRACKET

6 400 ₽
22

10-805164 U BOLT
(Gas Applications) SN# 0W465664 & Below

U BOLT
(Gas Applications) SN# 0W465664 & Below

3 210 ₽
22

10-805164 U BOLT
(Diesel Applications) SN# 0W403949 & Below

U BOLT
(Diesel Applications) SN# 0W403949 & Below

3 210 ₽
22

10-8M0120158 U BOLT
(Gas Applications) SN# 0W465665 & Up

U BOLT
(Gas Applications) SN# 0W465665 & Up

3 060 ₽
22

10-8M0120158 U BOLT
(Diesel Applications) SN# 0W403950 & Up

U BOLT
(Diesel Applications) SN# 0W403950 & Up

3 060 ₽
23

11-862903 NUT, (.375-24)
(Gas Applications) SN# 0W465664 & Below

NUT, (.375-24)
(Gas Applications) SN# 0W465664 & Below

250 ₽
23

11-862903 NUT, (.375-24)
(Diesel Applications) SN# 0W403949 & Below

NUT, (.375-24)
(Diesel Applications) SN# 0W403949 & Below

250 ₽
23

11-859116 NUT, (.437-20)
(Gas Applications) SN# 0W465665 & Up

NUT, (.437-20)
(Gas Applications) SN# 0W465665 & Up

320 ₽
23

11-859116 NUT, (.437-20)
(Diesel Applications) SN# 0W403950 & Up

NUT, (.437-20)
(Diesel Applications) SN# 0W403950 & Up

320 ₽
23

11-34933 NUT, (.437-20) Stainless Steel
(SEACORE)

NUT, (.437-20) Stainless Steel
(SEACORE)

440 ₽
24

54-818557 CLAMP

CLAMP

650 ₽
25

8M0107462 SENDER ASSEMBLY, Trim, Analog
(SmartCraft Series Transom) SN# 2A417473 & Below

SENDER ASSEMBLY, Trim, Analog
(SmartCraft Series Transom) SN# 2A417473 & Below

29 630 ₽
25

8M0095310 SENDER ASSEMBLY, Trim, Digital
SN# 2A417474 & Up

SENDER ASSEMBLY, Trim, Digital
SN# 2A417474 & Up

13 560 ₽
26

831957 RETAINER

RETAINER

170 ₽
27

8307973 CONNECTOR

CONNECTOR

430 ₽
28

10-45742 SCREW, (.190-32 x .312)

SCREW, (.190-32 x .312)

100 ₽
28

10-8M0113176 SCREW, (#10-24 x .38)

SCREW, (#10-24 x .38)

0 ₽
29

54-818557001 CLAMP

CLAMP

2 100 ₽
NS

805130A6 SENDER KIT, Dual Station

SENDER KIT, Dual Station

9 220 ₽
NS

805134A4 ROTOR KIT, Trim Sender
(Magnum Series)

ROTOR KIT, Trim Sender
(Magnum Series)

2 630 ₽
