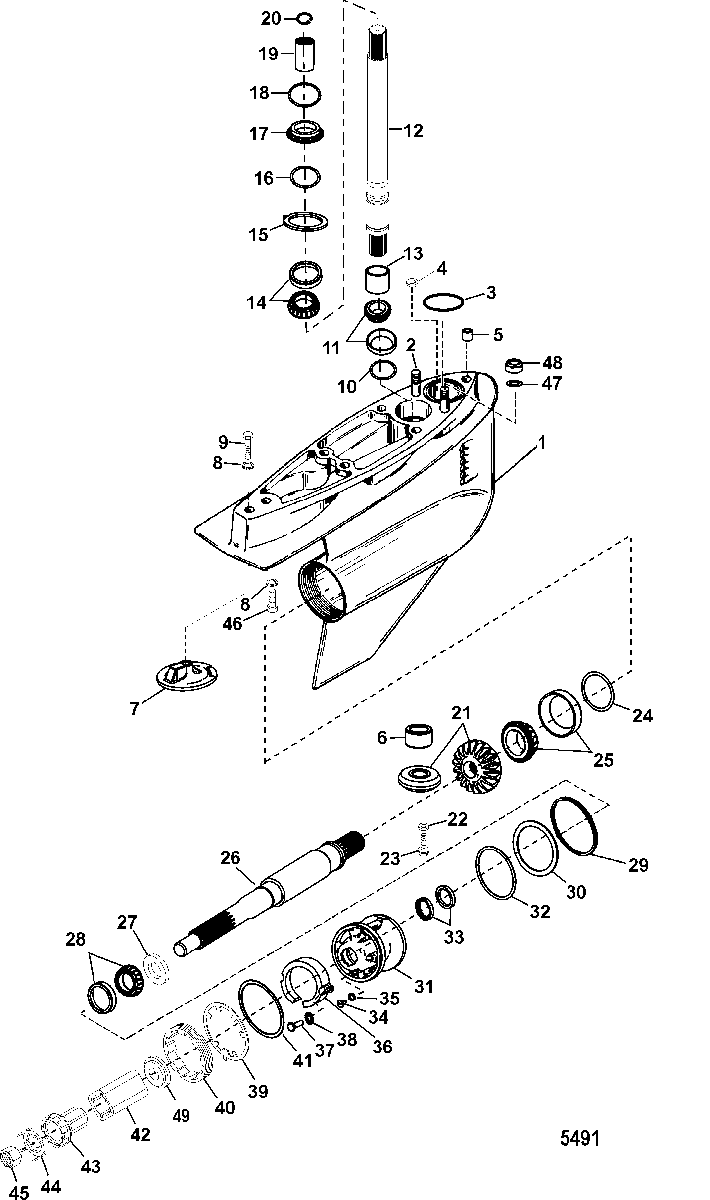

Gear Housing(Brave One) для Mercruiser - BRAVO X ONE 0W250000 & Up

№

Артикул

Название
_

1656-8866A55 GEAR HOUSING ASSEMBLY, Complete
(Bravo One)(Low Water Pick-up)

GEAR HOUSING ASSEMBLY, Complete
(Bravo One)(Low Water Pick-up)

557 380 ₽
_

1656-8866A63 GEAR HOUSING ASSEMBLY, Complete
(Bravo One)(Dual Water Pick-Up)

GEAR HOUSING ASSEMBLY, Complete
(Bravo One)(Dual Water Pick-Up)

463 880 ₽
_

1656-8866J01 GEAR HOUSING ASSEMBLY, Complete
(SEACORE)(Bravo One)(Dual Water Pick-Up)

GEAR HOUSING ASSEMBLY, Complete
(SEACORE)(Bravo One)(Dual Water Pick-Up)

485 600 ₽
1

1656-8866A54 GEAR HOUSING ASSEMBLY, Basic
(Bravo One)(Low Water Pick-up)

GEAR HOUSING ASSEMBLY, Basic
(Bravo One)(Low Water Pick-up)

264 020 ₽
1

1656-8866A64 GEAR HOUSING ASSEMBLY, Basic
(Bravo One)(Dual Water Pick-Up)

GEAR HOUSING ASSEMBLY, Basic
(Bravo One)(Dual Water Pick-Up)

325 160 ₽
1

1656-8866J00 GEAR HOUSING ASSEMBLY, Basic
(SEACORE)(Bravo One)(Dual Water Pick-Up)

GEAR HOUSING ASSEMBLY, Basic
(SEACORE)(Bravo One)(Dual Water Pick-Up)

380 760 ₽
2

16-8M0133358 STUD, (.437-14/.437-20 x 2.060)

STUD, (.437-14/.437-20 x 2.060)

0 ₽
3

25-33465 O-RING

O-RING

340 ₽
4

26-455771 SEAL

SEAL

260 ₽
5

26-805344 SEAL, (.625 Outside Diameter)

SEAL, (.625 Outside Diameter)

320 ₽
6

31-86754T BEARING ASSEMBLY, Roller

BEARING ASSEMBLY, Roller

9 180 ₽
7

97-76214Q5 ANODE KIT

ANODE KIT

1 930 ₽
8

13-806210 LOCKWASHER, (.437)

LOCKWASHER, (.437)

150 ₽
9

10-806327 SCREW, (.437-14 x 1.750)

SCREW, (.437-14 x 1.750)

520 ₽
10

15-92914A1 SHIM KIT

SHIM KIT

4 180 ₽
11

31-8M0103470 BEARING ASSEMBLY, Tapered Roller

BEARING ASSEMBLY, Tapered Roller

5 290 ₽
12

45-858517A3 DRIVESHAFT ASSEMBLY, (16.085 Long)

DRIVESHAFT ASSEMBLY, (16.085 Long)

90 190 ₽
13

31-815901 RACE, Bearing

RACE, Bearing

6 000 ₽
14

31-8M0103473 BEARING ASSEMBLY, Tapered Roller

BEARING ASSEMBLY, Tapered Roller

5 290 ₽
15

14-86739 TAB WASHER

TAB WASHER

1 340 ₽
16

15-86749A1 SHIM KIT

SHIM KIT

4 280 ₽
17

23-8M0046302 SPACER

SPACER

1 040 ₽
18

25-20826 O-RING, (2.230 x .139)

O-RING, (2.230 x .139)

360 ₽
19

88243A3 COUPLING ASSEMBLY

COUPLING ASSEMBLY

10 760 ₽
20

53-88242 RING, Retaining

RING, Retaining

100 ₽
21

43-14063A1 GEAR SET, (15/19)

GEAR SET, (15/19)

86 610 ₽
22

12-805068 WASHER

WASHER

1 380 ₽
23

10-808027 SCREW

SCREW

420 ₽
24

15-87157A1 SHIM KIT

SHIM KIT

5 930 ₽
25

31-8M0103471 BEARING ASSEMBLY, Tapered Roller

BEARING ASSEMBLY, Tapered Roller

8 110 ₽
26

44-41630T PROPELLER SHAFT

PROPELLER SHAFT

103 940 ₽
27

12-90886 WASHER

WASHER

6 090 ₽
28

31-8M0103470 BEARING ASSEMBLY, Tapered Roller

BEARING ASSEMBLY, Tapered Roller

5 290 ₽
29

67440T LOAD RING

LOAD RING

3 550 ₽
30

12-42256 THRUST WASHER, (.105 Inch Thick)

THRUST WASHER, (.105 Inch Thick)

2 930 ₽
31

41641A8 CARRIER ASSEMBLY, Bearing

CARRIER ASSEMBLY, Bearing

28 170 ₽
31

41641A18 CARRIER ASSEMBLY, Bearing
(SEACORE)

CARRIER ASSEMBLY, Bearing
(SEACORE)

32 320 ₽
32

25-31534 O-RING

O-RING

570 ₽
33

26-76868 SEAL

SEAL

950 ₽
34

22-8M0058389 PLUG KIT, Drain - Magnetic

PLUG KIT, Drain - Magnetic

1 720 ₽
35

26-830749 SEAL

SEAL

700 ₽
36

97-806188Q01 ANODE ASSEMBLY

ANODE ASSEMBLY

3 050 ₽
37

10-806290 SCREW, (#10-32 x .625)

SCREW, (#10-32 x .625)

130 ₽
38

13-69432 LOCKWASHER, External (#10)

LOCKWASHER, External (#10)

100 ₽
39

14-18323 TAB WASHER

TAB WASHER

2 130 ₽
40

8M2000347 RETAINER, Bearing Carrier

RETAINER, Bearing Carrier

3 640 ₽
40

8M2000347 RETAINER, Bearing Carrier
(SEACORE)

RETAINER, Bearing Carrier
(SEACORE)

3 640 ₽
41

12-863195 SPACER

SPACER

2 040 ₽
42

835290Q1 DRIVE SLEEVE, Plastic

DRIVE SLEEVE, Plastic

5 850 ₽
43

826074Q1 ADAPTOR, Brass, Aft Propeller Sleeve

ADAPTOR, Brass, Aft Propeller Sleeve

3 730 ₽
44

14-816629Q TAB WASHER

TAB WASHER

460 ₽
45

11-52707Q1 PROP NUT KIT, (.750-16)

PROP NUT KIT, (.750-16)

1 530 ₽
46

10-90084 SCREW, (.437-14 x 1.500)

SCREW, (.437-14 x 1.500)

280 ₽
47

12-861854 WASHER, (.453 x .750 x .032) Stainless Steel

WASHER, (.453 x .750 x .032) Stainless Steel

290 ₽
48

11-35053 NUT, (.437-20)

NUT, (.437-20)

630 ₽
49

12-835467Q01 THRUST HUB

THRUST HUB

3 910 ₽
-

97-888758Q02 ANODE KIT, Aluminum (Bravo I)

ANODE KIT, Aluminum (Bravo I)

9 450 ₽
-

97-888757Q02 ANODE KIT, Magnesium (Bravo I)

ANODE KIT, Magnesium (Bravo I)

11 140 ₽
