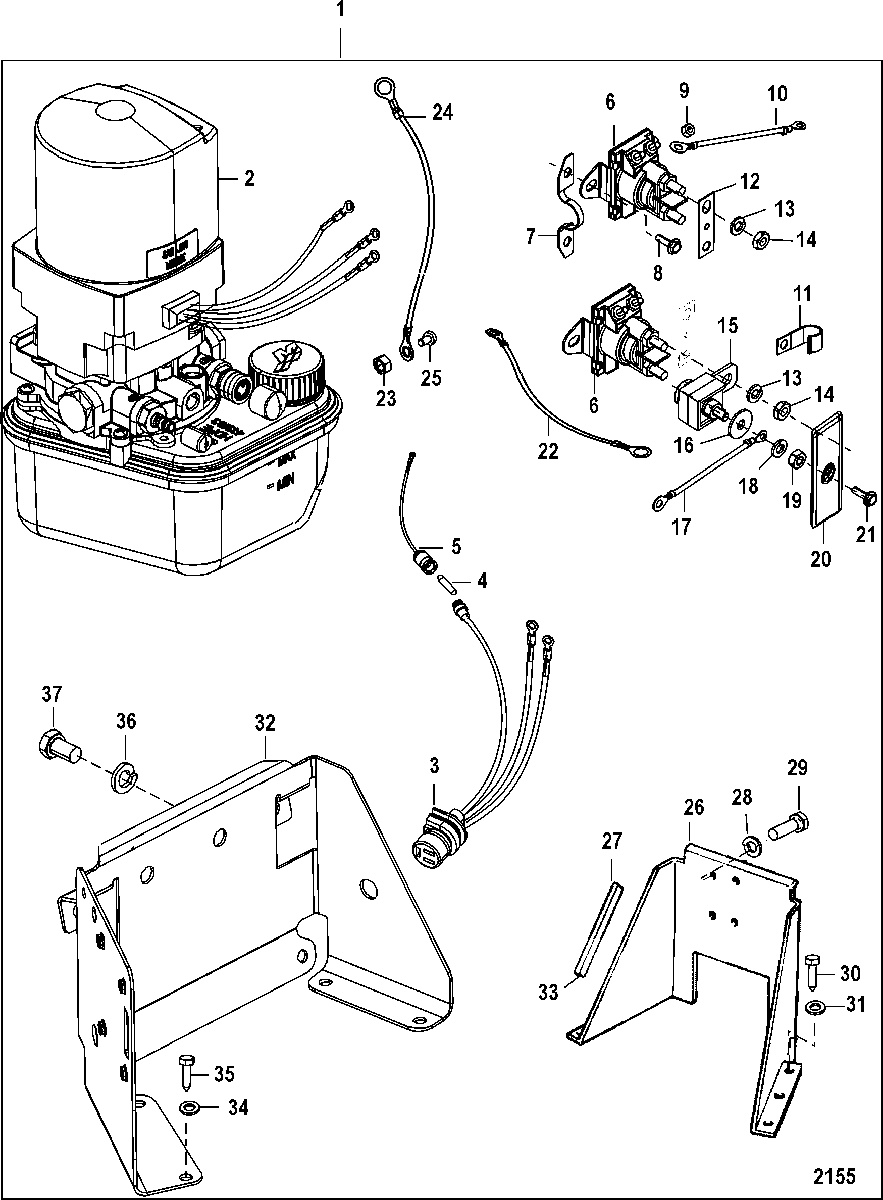

TRIM PUMP ASSEMBLY(COMPLETE) для Mercruiser - BRAVO TWO 0M100001 THRU 0W249999
-
№АртикулНазвание
-
1865380A25 PUMP ASSEMBLY, Trim, Complete, (Bottom Mounted Reservoir)
(Design I - Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Spiral Line)PUMP ASSEMBLY, Trim, Complete, (Bottom Mounted Reservoir)
(Design I - Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Spiral Line) -
1865380A25 PUMP ASSEMBLY, Trim, Complete, (Bottom Mounted Reservoir)
(Design I - Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Spiral Line)PUMP ASSEMBLY, Trim, Complete, (Bottom Mounted Reservoir)
(Design I - Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Spiral Line) -
1865380A25 PUMP ASSEMBLY, Trim, Complete, (Top Mounted Reservoir)
(Design I - Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Sprial Line)PUMP ASSEMBLY, Trim, Complete, (Top Mounted Reservoir)
(Design I - Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Sprial Line) -
1865380A25 PUMP ASSEMBLY, Trim, Complete, (Top Mounted Reservoir)
(Design II - Etched Manufacturing Numbers On Top Of Cover And Wires Will Have White Straight Line)PUMP ASSEMBLY, Trim, Complete, (Top Mounted Reservoir)
(Design II - Etched Manufacturing Numbers On Top Of Cover And Wires Will Have White Straight Line) -
2865380A13 PUMP/MOTOR ASSEMBLY, Bottom Mounted Reservoir
(See PUMP/MOTOR (DESIGN I) Section For Parts Breakdown)PUMP/MOTOR ASSEMBLY, Bottom Mounted Reservoir
(See PUMP/MOTOR (DESIGN I) Section For Parts Breakdown) -
2865380A13 PUMP/MOTOR ASSEMBLY, Top Mounted Reservoir
(See PUMP/MOTOR (DESIGN I) Section For Parts Breakdown)PUMP/MOTOR ASSEMBLY, Top Mounted Reservoir
(See PUMP/MOTOR (DESIGN I) Section For Parts Breakdown) -
2865380A13 PUMP/MOTOR ASSEMBLY, Top Mounted Reservoir
(See PUMP/MOTOR (DESIGN II) Section For Parts Breakdown)PUMP/MOTOR ASSEMBLY, Top Mounted Reservoir
(See PUMP/MOTOR (DESIGN II) Section For Parts Breakdown) -
384-79147A3 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
488-79091 FUSE, 20 AmpereFUSE, 20 Ampere
-
584-95084A2 CABLE ASSEMBLYCABLE ASSEMBLY
-
689-96158T SOLENOIDSOLENOID
-
788075 RETAINERRETAINER
-
810-41508 SCREW, (.250-20 x .500) Stainless SteelSCREW, (.250-20 x .500) Stainless Steel
-
911-26419 NUT, (#8-32) BrassNUT, (#8-32) Brass
-
1084-86322A24 CABLE ASSEMBLY, (4.00 Inches)CABLE ASSEMBLY, (4.00 Inches)
-
1154-55098 J CLIPJ CLIP
-
1294275 LINK, ConnectorLINK, Connector
-
1313-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1411-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
1588-79023T10 FUSE ASSEMBLY, 110 AmpereFUSE ASSEMBLY, 110 Ampere
-
1612-25908 WASHER, (.265 x .812 x .0625)WASHER, (.265 x .812 x .0625)
-
1784-79139A12 CABLE ASSEMBLY, Red-Positive, PositiveCABLE ASSEMBLY, Red-Positive, Positive
-
1813-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1911-21825 NUT, (.250-28)NUT, (.250-28)
-
2085-861680 INSULATORINSULATOR
-
2110-48409 SCREW, (#10-16 x .625) Stainless SteelSCREW, (#10-16 x .625) Stainless Steel
-
2284-86322A15 CABLE ASSEMBLY, (5.50 Inches) BlackCABLE ASSEMBLY, (5.50 Inches) Black
-
2311-68292 NUT, (.312-18)NUT, (.312-18)
-
2484-79138A9 CABLE ASSEMBLY, (6.00 Feet) Black-Negative, NegativeCABLE ASSEMBLY, (6.00 Feet) Black-Negative, Negative
-
2510-90285 SCREW, (.312-18 x .625)SCREW, (.312-18 x .625)
-
26862548A1 BRACKET ASSEMBLY
(14336A9 - Floor Mounted Only)BRACKET ASSEMBLY
(14336A9 - Floor Mounted Only) -
2758491 CHANNEL, Rubber (4.00 Inches)CHANNEL, Rubber (4.00 Inches)
-
2813-39107 LOCKWASHER, (.312-24)LOCKWASHER, (.312-24)
-
2910-35386 SCREW, (.312-18 x 1.00)SCREW, (.312-18 x 1.00)
-
3010-59784 SCREW, (.250-10 x 1.00)SCREW, (.250-10 x 1.00)
-
3112-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
32862548A1 BRACKET KIT
(14336A15/A17/A22 Floor/Transom Mounted)BRACKET KIT
(14336A15/A17/A22 Floor/Transom Mounted) -
3358491 CHANNEL, Rubber (4.00 Inches)CHANNEL, Rubber (4.00 Inches)
-
3412-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
3510-59784 SCREW, (.250-10 x 1.00)SCREW, (.250-10 x 1.00)
-
3613-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
3710-98260 SCREW, (.375-16 x .620)SCREW, (.375-16 x .620)
