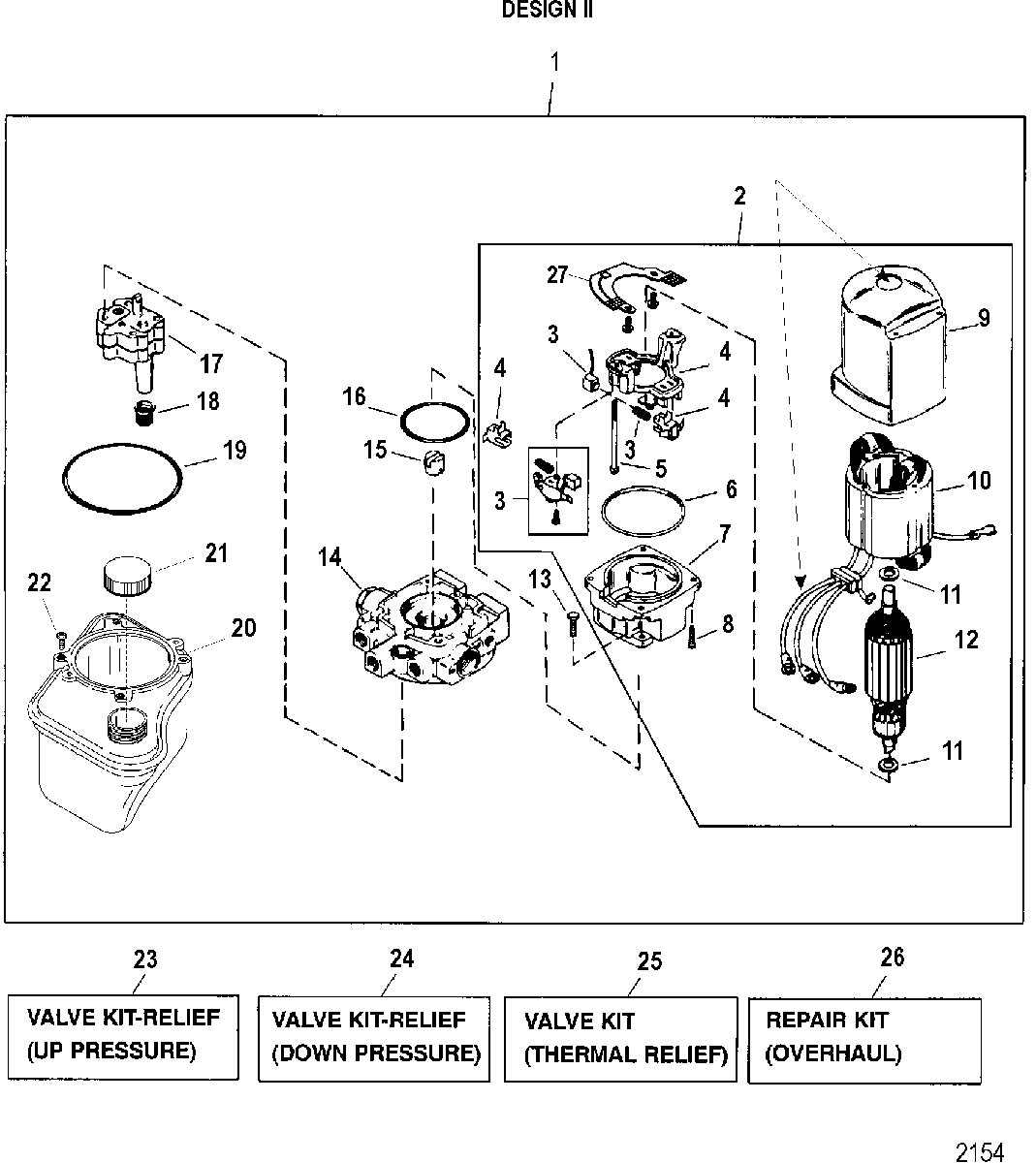

(PUMP/MOTOR(TOP MT RESERVOIR) (DESIGN II - 14336A25) для Mercruiser - BRAVO TWO 0M100001 THRU 0W249999
-
№АртикулНазвание
-
1865380A13 PUMP/MOTOR ASSEMBLY
(Design II - Etch Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line)PUMP/MOTOR ASSEMBLY
(Design II - Etch Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line) -
2891736T MOTOR ASSEMBLY, Complete
(Design II - Etch Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line)MOTOR ASSEMBLY, Complete
(Design II - Etch Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line) -
3891737 BRUSH KITBRUSH KIT
-
4891738 HOLDER ASSEMBLY, BrushesHOLDER ASSEMBLY, Brushes
-
510-891739 SCREW, Brush HolderSCREW, Brush Holder
-
625-891740 O-RINGO-RING
-
7NSS NOT SOLD SEPARATE, END CAP ASSEMBLYNOT SOLD SEPARATE, END CAP ASSEMBLY
-
810-891741 SCREWSCREW
-
9NSS NOT SOLD SEPARATE, COVER ASSEMBLY - (With Bearing)NOT SOLD SEPARATE, COVER ASSEMBLY - (With Bearing)
-
10NSS NOT SOLD SEPARATE, FIELD AND FRAME ASSEMBLYNOT SOLD SEPARATE, FIELD AND FRAME ASSEMBLY
-
11NSS NOT SOLD SEPARATE, WASHER-ThrustNOT SOLD SEPARATE, WASHER-Thrust
-
12NSS NOT SOLD SEPARATE, ARMATURENOT SOLD SEPARATE, ARMATURE
-
1310-823444 SCREWSCREW
-
14808728T ADAPTER ASSEMBLYADAPTER ASSEMBLY
-
15803852 COUPLINGCOUPLING
-
1625-89498 O-RING, Motor EndO-RING, Motor End
-
1718529 PUMP ASSEMBLY, Includes ScrewsPUMP ASSEMBLY, Includes Screws
-
1835-89496 FILTERFILTER
-
1925-17645 O-RING, Reservoir EndO-RING, Reservoir End
-
20883166A2 RESERVOIR KIT (With Filters and O-Ring References 18 and 19)RESERVOIR KIT (With Filters and O-Ring References 18 and 19)
-
2136-865448A01 CAP, Oil ReservoirCAP, Oil Reservoir
-
2210-883167 SCREW, (#8-32)SCREW, (#8-32)
-
23812498A1 VALVE KIT, Relief, UP PressureVALVE KIT, Relief, UP Pressure
-
24812499A1 VALVE KIT, Relief, Down PressureVALVE KIT, Relief, Down Pressure
-
2595353A1 VALVE KIT, Relief, ThermalVALVE KIT, Relief, Thermal
-
2618545A1 REPAIR KITREPAIR KIT
-
27892608 BOARD ASSEMBLY, Circuit - Radio Frequency Interference FilterBOARD ASSEMBLY, Circuit - Radio Frequency Interference Filter
