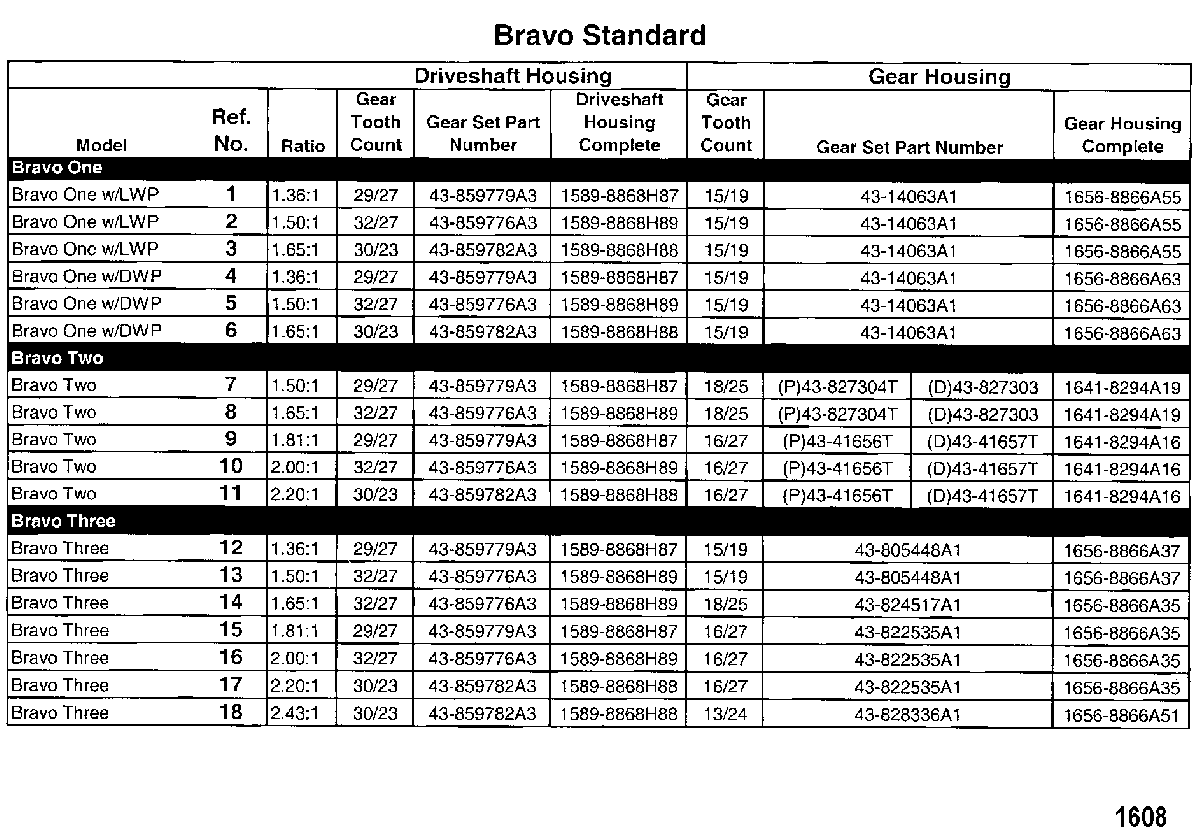

STERNDRIVE UNIT CHART(GASOLINE) BRAVO I/II/III для Mercruiser - BRAVO TWO 0M100001 THRU 0W249999
-
№АртикулНазвание
-
15C31100LP STERNDRIVE UNIT COMPLETE (Complete)
(Bravo One) (WITH LWP) (1.36:1 Ratio)STERNDRIVE UNIT COMPLETE (Complete)
(Bravo One) (WITH LWP) (1.36:1 Ratio) -
11589-863836A50 HOUSING ASSEMBLY, Driveshaft (Complete)HOUSING ASSEMBLY, Driveshaft (Complete)
-
143-883476A2 GEAR SET, (29/27)GEAR SET, (29/27)
-
11656-8866A55 GEAR HOUSING ASSEMBLY (Complete)GEAR HOUSING ASSEMBLY (Complete)
-
143-14063A1 GEAR SET, (15/19)GEAR SET, (15/19)
-
25C31200LP STERNDRIVE UNIT COMPLETE (Complete)
(Bravo One) (WITH LWP) (1.50:1 Ratio)STERNDRIVE UNIT COMPLETE (Complete)
(Bravo One) (WITH LWP) (1.50:1 Ratio) -
21589-863836A51 HOUSING ASSEMBLY, Driveshaft (Complete)HOUSING ASSEMBLY, Driveshaft (Complete)
-
243-883473A2 GEAR SET, (32/27)GEAR SET, (32/27)
-
21656-8866A55 GEAR HOUSING ASSEMBLY (Complete)GEAR HOUSING ASSEMBLY (Complete)
-
243-14063A1 GEAR SET, (15/19)GEAR SET, (15/19)
-
35C31300LP STERNDRIVE UNIT (Complete)
(Bravo One) (WITH LWP) (1.65:1 Ratio)STERNDRIVE UNIT (Complete)
(Bravo One) (WITH LWP) (1.65:1 Ratio) -
31589-863836A52 HOUSING ASSEMBLY, Driveshaft (Complete)HOUSING ASSEMBLY, Driveshaft (Complete)
-
343-883479A2 GEAR SET, (30/23)GEAR SET, (30/23)
-
31656-8866A55 GEAR HOUSING ASSEMBLY (Complete)GEAR HOUSING ASSEMBLY (Complete)
-
343-14063A1 GEAR SET, (15/19)GEAR SET, (15/19)
-
45-5231100NP STERNDRIVE UNIT (Complete)
(Bravo One) (WITH DWP) (1.36:1 Ratio)STERNDRIVE UNIT (Complete)
(Bravo One) (WITH DWP) (1.36:1 Ratio) -
41589-863836A50 HOUSING ASSEMBLY, Driveshaft (Complete)HOUSING ASSEMBLY, Driveshaft (Complete)
-
443-883476A2 GEAR SET, (29/27)GEAR SET, (29/27)
-
41656-8866A63 GEAR HOUSING ASSEMBLY (Complete)GEAR HOUSING ASSEMBLY (Complete)
-
443-14063A1 GEAR SET, (15/19)GEAR SET, (15/19)
-
55-5231200NP STERNDRIVE UNIT (Complete)
(Bravo One) (WITH DWP) (1.50:1 Ratio)STERNDRIVE UNIT (Complete)
(Bravo One) (WITH DWP) (1.50:1 Ratio) -
51589-863836A51 HOUSING ASSEMBLY, Driveshaft (Complete)HOUSING ASSEMBLY, Driveshaft (Complete)
-
543-883473A2 GEAR SET, (32/27)GEAR SET, (32/27)
-
51656-8866A63 GEAR HOUSING ASSEMBLY (Complete)GEAR HOUSING ASSEMBLY (Complete)
-
543-14063A1 GEAR SET, (15/19)GEAR SET, (15/19)
-
65231300NP STERNDRIVE UNIT (Complete)
(Bravo One) (WITH DWP) (1.65:1 Ratio)STERNDRIVE UNIT (Complete)
(Bravo One) (WITH DWP) (1.65:1 Ratio) -
61589-863836A52 HOUSING ASSEMBLY, Driveshaft (Complete)HOUSING ASSEMBLY, Driveshaft (Complete)
-
643-883479A2 GEAR SET, (30/23)GEAR SET, (30/23)
-
61656-8866A63 GEAR HOUSING ASSEMBLY (Complete)GEAR HOUSING ASSEMBLY (Complete)
-
643-14063A1 GEAR SET, (15/19)GEAR SET, (15/19)
-
75-5331200LP STERNDRIVE UNIT (Complete)
(Bravo Two) (1.50:1 Ratio)STERNDRIVE UNIT (Complete)
(Bravo Two) (1.50:1 Ratio) -
71589-863836A50 HOUSING ASSEMBLY, Driveshaft (Complete)HOUSING ASSEMBLY, Driveshaft (Complete)
-
743-883476A2 GEAR SET, (29/27)GEAR SET, (29/27)
-
71641-8294A19 GEAR HOUSING ASSEMBLY (Complete)GEAR HOUSING ASSEMBLY (Complete)
-
743-827304T GEAR, (18/25)GEAR, (18/25)
-
743-827303 GEAR, DRIVEGEAR, DRIVE
-
85-5331300LP STERNDRIVE UNIT (Complete)
(Bravo Two) (1.65:1 Ratio)STERNDRIVE UNIT (Complete)
(Bravo Two) (1.65:1 Ratio) -
81589-863836A51 HOUSING ASSEMBLY, Driveshaft (Complete)HOUSING ASSEMBLY, Driveshaft (Complete)
-
843-883473A2 GEAR SET, (32/27)GEAR SET, (32/27)
-
81641-8294A19 GEAR HOUSING ASSEMBLY (Complete)GEAR HOUSING ASSEMBLY (Complete)
-
843-827304T GEAR, (18/25)GEAR, (18/25)
-
843-827303 GEAR, DRIVEGEAR, DRIVE
-
95331400LP STERNDRIVE UNIT (Complete)
(Bravo Two) (1.81:1 Ratio)STERNDRIVE UNIT (Complete)
(Bravo Two) (1.81:1 Ratio) -
91589-863836A50 HOUSING ASSEMBLY, Driveshaft (Complete)HOUSING ASSEMBLY, Driveshaft (Complete)
-
943-883476A2 GEAR SET, (29/27)GEAR SET, (29/27)
-
91641-8294A16 GEAR HOUSING ASSEMBLY (Complete)GEAR HOUSING ASSEMBLY (Complete)
-
943-41656T GEAR, (16/27)GEAR, (16/27)
-
943-41657T GEAR, DRIVEGEAR, DRIVE
-
105-5331600LP STERNDRIVE UNIT (Complete)
(Bravo Two) (2.00:1 Ratio)STERNDRIVE UNIT (Complete)
(Bravo Two) (2.00:1 Ratio) -
101589-863836A51 HOUSING ASSEMBLY, Driveshaft (Complete)HOUSING ASSEMBLY, Driveshaft (Complete)
-
1043-883473A2 GEAR SET, (32/27)GEAR SET, (32/27)
-
101641-8294A16 GEAR HOUSING ASSEMBLY (Complete)GEAR HOUSING ASSEMBLY (Complete)
-
1043-41656T GEAR, (16/27)GEAR, (16/27)
-
1043-41657T GEAR, DRIVEGEAR, DRIVE
-
115-5331500LP STERNDRIVE UNIT (Complete)
(Bravo Two) (2.20:1 Ratio)STERNDRIVE UNIT (Complete)
(Bravo Two) (2.20:1 Ratio) -
111589-863836A52 HOUSING ASSEMBLY, Driveshaft (Complete)HOUSING ASSEMBLY, Driveshaft (Complete)
-
1143-883479A2 GEAR SET, (30/23)GEAR SET, (30/23)
-
111641-8294A16 GEAR HOUSING ASSEMBLY (Complete)GEAR HOUSING ASSEMBLY (Complete)
-
1143-41656T GEAR, (16/27)GEAR, (16/27)
-
1143-41657T GEAR, DRIVEGEAR, DRIVE
-
125-5441100LP STERNDRIVE UNIT (Complete)
(Bravo Three) (1.36:1 Ratio)STERNDRIVE UNIT (Complete)
(Bravo Three) (1.36:1 Ratio) -
121589-863836A50 HOUSING ASSEMBLY, Driveshaft (Complete)HOUSING ASSEMBLY, Driveshaft (Complete)
-
1243-883476A2 GEAR SET, (29/27)GEAR SET, (29/27)
-
121656-8M0046733 GEAR HOUSING ASSEMBLY (Complete)GEAR HOUSING ASSEMBLY (Complete)
-
1243-805448A1 GEAR SET, (15/19)GEAR SET, (15/19)
-
135-5441200LP STERNDRIVE UNIT (Complete)
(Bravo Three) (1.50:1 Ratio)STERNDRIVE UNIT (Complete)
(Bravo Three) (1.50:1 Ratio) -
131589-863836A51 HOUSING ASSEMBLY, Driveshaft (Complete)HOUSING ASSEMBLY, Driveshaft (Complete)
-
1343-883473A2 GEAR SET, (32/27)GEAR SET, (32/27)
-
131656-8M0046733 GEAR HOUSING ASSEMBLY (Complete)GEAR HOUSING ASSEMBLY (Complete)
-
1343-805448A1 GEAR SET, (15/19)GEAR SET, (15/19)
-
145-5441300LP (Complete)
(Bravo Three) (1.65:1 Ratio)(Complete)
(Bravo Three) (1.65:1 Ratio)Производитель Mercury-Mercruiser -
141589-863836A51 HOUSING ASSEMBLY, Driveshaft (Complete)HOUSING ASSEMBLY, Driveshaft (Complete)
-
1443-883473A2 GEAR SET, (32/27)GEAR SET, (32/27)
-
141656-8M0046738 GEAR HOUSING ASSEMBLY (Complete)GEAR HOUSING ASSEMBLY (Complete)
-
1443-824517A1 GEAR SET, (18/25)GEAR SET, (18/25)
-
155-5441400LP STERNDRIVE UNIT (Complete)
(Bravo Three) (1.81:1 Ratio)STERNDRIVE UNIT (Complete)
(Bravo Three) (1.81:1 Ratio) -
151589-863836A50 HOUSING ASSEMBLY, Driveshaft (Complete)HOUSING ASSEMBLY, Driveshaft (Complete)
-
1543-883476A2 GEAR SET, (29/27)GEAR SET, (29/27)
-
151656-8M0046738 GEAR HOUSING ASSEMBLY (Complete)GEAR HOUSING ASSEMBLY (Complete)
-
1543-822535A1 GEAR SET, (16/27)GEAR SET, (16/27)
-
165-5441600LP STERNDRIVE UNIT (Complete)
(Bravo Three) (2.00:1 Ratio)STERNDRIVE UNIT (Complete)
(Bravo Three) (2.00:1 Ratio) -
161589-863836A51 HOUSING ASSEMBLY, Driveshaft (Complete)HOUSING ASSEMBLY, Driveshaft (Complete)
-
1643-883473A2 GEAR SET, (32/27)GEAR SET, (32/27)
-
161656-8M0046738 GEAR HOUSING ASSEMBLY (Complete)GEAR HOUSING ASSEMBLY (Complete)
-
1643-822535A1 GEAR SET, (16/27)GEAR SET, (16/27)
-
175-5441500LP STERNDRIVE UNIT (Complete)
(Bravo Three) (2.20:1 Ratio)STERNDRIVE UNIT (Complete)
(Bravo Three) (2.20:1 Ratio) -
171589-863836A52 HOUSING ASSEMBLY, Driveshaft (Complete)HOUSING ASSEMBLY, Driveshaft (Complete)
-
1743-883479A2 GEAR SET, (30/23)GEAR SET, (30/23)
-
171656-8M0046738 GEAR HOUSING ASSEMBLY (Complete)GEAR HOUSING ASSEMBLY (Complete)
-
1743-822535A1 GEAR SET, (16/27)GEAR SET, (16/27)
-
185-5441700LP STERNDRIVE UNIT, Bravo III 2.43:1 (Complete)
(Bravo Three) (2.43:1 Ratio)STERNDRIVE UNIT, Bravo III 2.43:1 (Complete)
(Bravo Three) (2.43:1 Ratio) -
181589-863836A52 HOUSING ASSEMBLY, Driveshaft (Complete)HOUSING ASSEMBLY, Driveshaft (Complete)
-
1843-883479A2 GEAR SET, (30/23)GEAR SET, (30/23)
-
181656-8M0046682 GEAR HOUSING ASSEMBLY (Complete)GEAR HOUSING ASSEMBLY (Complete)
-
1843-828336A1 GEAR SET, (13/24)GEAR SET, (13/24)
-
NS5-5441700LP STERNDRIVE UNIT, Bravo III 2.43:1STERNDRIVE UNIT, Bravo III 2.43:1
