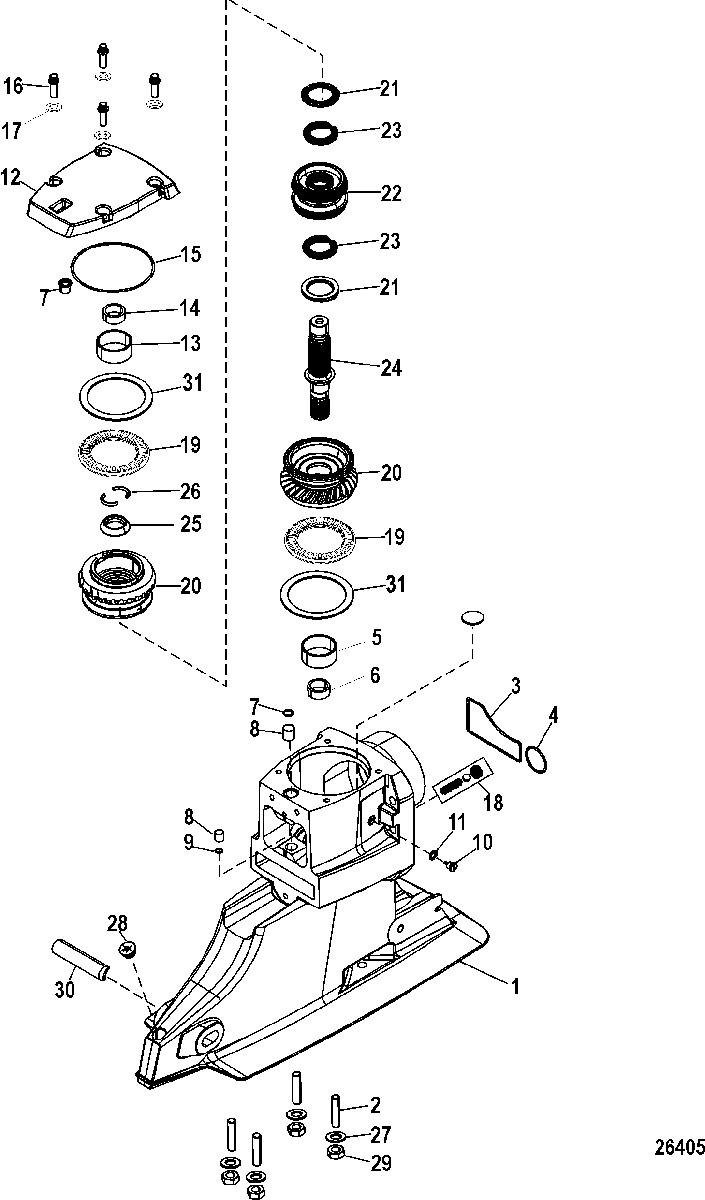

Driveshaft Housing and Drive Gears для Mercruiser - BRAVO THREE 0W250000 & Up
-
№АртикулНазвание
-
-1589-865440H50 HOUSING ASSEMBLY, Driveshaft - Complete
(Bravo-I 1.36:1 Ratio)(Bravo-II 1.50:1 Ratio)(Bravo-III 1.36:1 Ratio)HOUSING ASSEMBLY, Driveshaft - Complete
(Bravo-I 1.36:1 Ratio)(Bravo-II 1.50:1 Ratio)(Bravo-III 1.36:1 Ratio) -
-1500-866458J01 HOUSING ASSEMBLY, Driveshaft - Complete
(SEACORE)(Bravo-I 1.36:1 Ratio)(Bravo-II 1.50:1 Ratio)(Bravo-III 1.36:1 Ratio)HOUSING ASSEMBLY, Driveshaft - Complete
(SEACORE)(Bravo-I 1.36:1 Ratio)(Bravo-II 1.50:1 Ratio)(Bravo-III 1.36:1 Ratio) -
-1589-865440H51 HOUSING ASSEMBLY, Driveshaft - Complete
(Bravo-I 1.50:1 Ratio)(Bravo-II 1.65:1 Ratio and 2.00:1 Ratio)(Bravo-III 1.65:1 Ratio and 2.00:1 Ratio)HOUSING ASSEMBLY, Driveshaft - Complete
(Bravo-I 1.50:1 Ratio)(Bravo-II 1.65:1 Ratio and 2.00:1 Ratio)(Bravo-III 1.65:1 Ratio and 2.00:1 Ratio) -
-1500-866458J02 HOUSING ASSEMBLY, Driveshaft - Complete
(SEACORE)(Bravo-I 1.50:1 Ratio)(Bravo-II 1.65:1 Ratio and 2.00:1 Ratio)(Bravo-III 1.65:1 Ratio and 2.00:1 Ratio)HOUSING ASSEMBLY, Driveshaft - Complete
(SEACORE)(Bravo-I 1.50:1 Ratio)(Bravo-II 1.65:1 Ratio and 2.00:1 Ratio)(Bravo-III 1.65:1 Ratio and 2.00:1 Ratio) -
-1589-865440H52 HOUSING ASSEMBLY, Driveshaft - Complete
(Bravo-I 1.65:1 Ratio)(Bravo-II 2.20:1 Ratio)(Bravo-III 2.20:1 Ratio and 2.43:1 Ratio)HOUSING ASSEMBLY, Driveshaft - Complete
(Bravo-I 1.65:1 Ratio)(Bravo-II 2.20:1 Ratio)(Bravo-III 2.20:1 Ratio and 2.43:1 Ratio) -
-1500-866458J03 HOUSING ASSEMBLY, Driveshaft - Complete
(SEACORE)(Bravo-I 1.65:1 Ratio)(Bravo-II 2.20:1 Ratio)(Bravo-III 2.20:1 Ratio and 2.43:1 Ratio)HOUSING ASSEMBLY, Driveshaft - Complete
(SEACORE)(Bravo-I 1.65:1 Ratio)(Bravo-II 2.20:1 Ratio)(Bravo-III 2.20:1 Ratio and 2.43:1 Ratio) -
-1589-865440H01 HOUSING ASSEMBLY, Driveshaft - Complete
(Bravo-II 1.81:1 Ratio)(Bravo-III 1.81:1 Ratio)HOUSING ASSEMBLY, Driveshaft - Complete
(Bravo-II 1.81:1 Ratio)(Bravo-III 1.81:1 Ratio) -
-1500-866458J04 HOUSING ASSEMBLY, Driveshaft - Complete
(SEACORE)(Bravo-II 1.81:1 Ratio)(Bravo-III 1.81:1 Ratio)HOUSING ASSEMBLY, Driveshaft - Complete
(SEACORE)(Bravo-II 1.81:1 Ratio)(Bravo-III 1.81:1 Ratio) -
-1589-865440H02 HOUSING ASSEMBLY, Driveshaft - Complete
(Bravo-III 1.50:1 Ratio)HOUSING ASSEMBLY, Driveshaft - Complete
(Bravo-III 1.50:1 Ratio) -
11589-865440H72 HOUSING, Driveshaft - BasicHOUSING, Driveshaft - Basic
-
11500-866458J00 HOUSING, Driveshaft - Basic
(SEACORE)HOUSING, Driveshaft - Basic
(SEACORE) -
216-8M0133358 STUD, (.437-14/.437-20 x 2.060)STUD, (.437-14/.437-20 x 2.060)
-
316755Q1 SEALSEAL
-
425-457101 O-RING, (1.424 x .103)O-RING, (1.424 x .103)
-
531-861791 RACERACE
-
631-843240 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
719-865866 PLUG, Shift Shaft Oil SealPLUG, Shift Shaft Oil Seal
-
823-861209A1 BUSHING KITBUSHING KIT
-
926-127091 SEAL, OilSEAL, Oil
-
1022-8M0058389 PLUG KIT, Drain - MagneticPLUG KIT, Drain - Magnetic
-
1126-830749 SEALSEAL
-
12865439A04 COVER ASSEMBLY, TopCOVER ASSEMBLY, Top
-
12866461A02 COVER ASSEMBLY, Top
(SEACORE)COVER ASSEMBLY, Top
(SEACORE) -
1331-861791 RACERACE
-
1431-843240 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
1525-97387 O-RINGO-RING
-
1610-8M0113180 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
1712-37828 WASHER, (.390 x .625 x .062) Stainless Steel
(SEACORE)WASHER, (.390 x .625 x .062) Stainless Steel
(SEACORE) -
1824-17997A1 SPRING KITSPRING KIT
-
1931-861787 BEARING ASSEMBLY, ThrustBEARING ASSEMBLY, Thrust
-
2043-883473A2 GEAR SET, (32/27), High Bump Sleeve
BIII 1.50, wear ring stamped HGEAR SET, (32/27), High Bump Sleeve
BIII 1.50, wear ring stamped H -
2043-883476A2 GEAR SET, (29/27), High Bump Sleeve
BI 1.36, BII 1.50, BIII 1.36, wear ring stamped HGEAR SET, (29/27), High Bump Sleeve
BI 1.36, BII 1.50, BIII 1.36, wear ring stamped H -
2043-883479A2 GEAR SET, (30/23), High Bump Sleeve
BI 1.65, BII 2.20, BIII 2.20 & 2.43, wear ring stamped HGEAR SET, (30/23), High Bump Sleeve
BI 1.65, BII 2.20, BIII 2.20 & 2.43, wear ring stamped H -
2043-8M0060003 GEAR SET, (32/27), Low Bump Sleeve
BI 1.50, BII 1.65 & 2.00, BIII 1.65 & 2.00GEAR SET, (32/27), Low Bump Sleeve
BI 1.50, BII 1.65 & 2.00, BIII 1.65 & 2.00 -
2043-8M0060004 GEAR SET, (29/27), Low Bump Sleeve
BII 1.81, BIII 1.81GEAR SET, (29/27), Low Bump Sleeve
BII 1.81, BIII 1.81 -
2043-8M0060005 GEAR SET, (30/23), Low Bump Sleeve
BI 1.65, BII 2.20, BIII 2.20 & 2.43GEAR SET, (30/23), Low Bump Sleeve
BI 1.65, BII 2.20, BIII 2.20 & 2.43 -
2131-861792 BEARING ASSEMBLY, ThrustBEARING ASSEMBLY, Thrust
-
2252-865344A01 CLUTCH ASSEMBLYCLUTCH ASSEMBLY
-
2324-93505 SPRINGSPRING
-
2445-812773T DRIVESHAFT, UpperDRIVESHAFT, Upper
-
2523-86770 COLLAR, ThrustCOLLAR, Thrust
-
2697351 KEEPERKEEPER
-
2712-861854 WASHER, (.453 x .750 x .032) Stainless SteelWASHER, (.453 x .750 x .032) Stainless Steel
-
2819-824928001 PLUG, RubberPLUG, Rubber
-
2911-35053 NUT, (.437-20)NUT, (.437-20)
-
30808006 INSERT, Trim AdjustmentINSERT, Trim Adjustment
-
3123-864596058 SHIM/RACE, (.0575/.0584 Thick) Brown, Thrust BearingSHIM/RACE, (.0575/.0584 Thick) Brown, Thrust Bearing
-
3123-864596059 SHIM/RACE, (.0585/.0594 Thick) White, Thrust BearingSHIM/RACE, (.0585/.0594 Thick) White, Thrust Bearing
-
3123-864596060 SHIM/RACE, (.0595/.0604 Thick) Orange, Thrust BearingSHIM/RACE, (.0595/.0604 Thick) Orange, Thrust Bearing
-
3123-864596061 SHIM/RACE, (.0605/.0614 Thick) Green, Thrust BearingSHIM/RACE, (.0605/.0614 Thick) Green, Thrust Bearing
-
3123-864596062 SHIM/RACE, (.0615/.0624 Thick) Yellow, Thrust BearingSHIM/RACE, (.0615/.0624 Thick) Yellow, Thrust Bearing
-
3123-864596063 SHIM/RACE, (.0625/.0634 Thick) Red, Thrust BearingSHIM/RACE, (.0625/.0634 Thick) Red, Thrust Bearing
-
3123-864596064 SHIM/RACE, (.0635/.0644 Thick) Light Blue, Thrust BearingSHIM/RACE, (.0635/.0644 Thick) Light Blue, Thrust Bearing
-
3123-864596065 SHIM/RACE, (.0645/.0654 Thick) Black, Thrust BearingSHIM/RACE, (.0645/.0654 Thick) Black, Thrust Bearing
-
3123-864596066 SHIM/RACE, (.0655/.0664 Thick) Pink, Thrust BearingSHIM/RACE, (.0655/.0664 Thick) Pink, Thrust Bearing
-
-26-16709A2 SEAL KIT, Driveshaft HousingSEAL KIT, Driveshaft Housing
