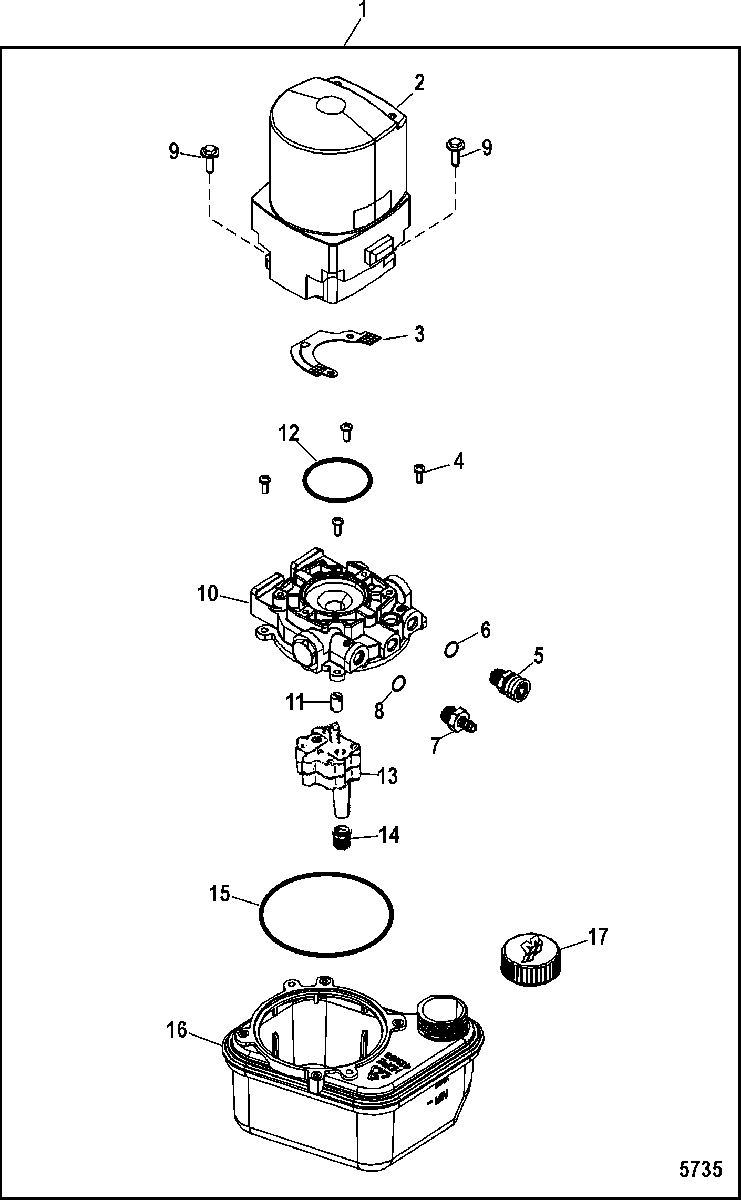

Trim Pump and Motor Components для Mercruiser - BRAVO THREE 0W250000 & Up
-
№АртикулНазвание
-
1865380A13 PUMP/MOTOR ASSEMBLY, Trim - 12 VoltPUMP/MOTOR ASSEMBLY, Trim - 12 Volt
-
2891736T MOTOR ASSEMBLY, CompleteMOTOR ASSEMBLY, Complete
-
3892608 BOARD ASSEMBLY, Circuit - Radio Frequency Interference FilterBOARD ASSEMBLY, Circuit - Radio Frequency Interference Filter
-
410-883167 SCREW, (#8-32)SCREW, (#8-32)
-
522-865413002 FITTING, Stainless Steel, Female Quick ConnectFITTING, Stainless Steel, Female Quick Connect
-
625-891868 O-RINGO-RING
-
722-865412001 FITTING, Stainless Steel, Male Quick ConnectFITTING, Stainless Steel, Male Quick Connect
-
825-891868 O-RINGO-RING
-
910-823444 SCREWSCREW
-
10808728T ADAPTER ASSEMBLYADAPTER ASSEMBLY
-
11803852 COUPLINGCOUPLING
-
1225-89498 O-RING, Motor EndO-RING, Motor End
-
1318529 PUMP ASSEMBLY, With ScrewsPUMP ASSEMBLY, With Screws
-
1435-89496 FILTERFILTER
-
1525-17645 O-RING, Reservoir EndO-RING, Reservoir End
-
16883166A2 RESERVOIR KIT, With Filters and O-Ring
(Ref 14 and Ref 15)RESERVOIR KIT, With Filters and O-Ring
(Ref 14 and Ref 15) -
1736-865448A01 CAP, StandardCAP, Standard
-
1736-865448A01 CAP, Oil Reservoir, Rough Water ApplicationCAP, Oil Reservoir, Rough Water Application
-
NS812498A1 VALVE KIT, Relief, Up PressureVALVE KIT, Relief, Up Pressure
-
NS812499A1 VALVE KIT, Relief, Down PressureVALVE KIT, Relief, Down Pressure
-
NS95353A1 VALVE KIT, ReliefVALVE KIT, Relief
-
NS18545A1 REPAIR KITREPAIR KIT
-
NS891737 BRUSH KITBRUSH KIT
