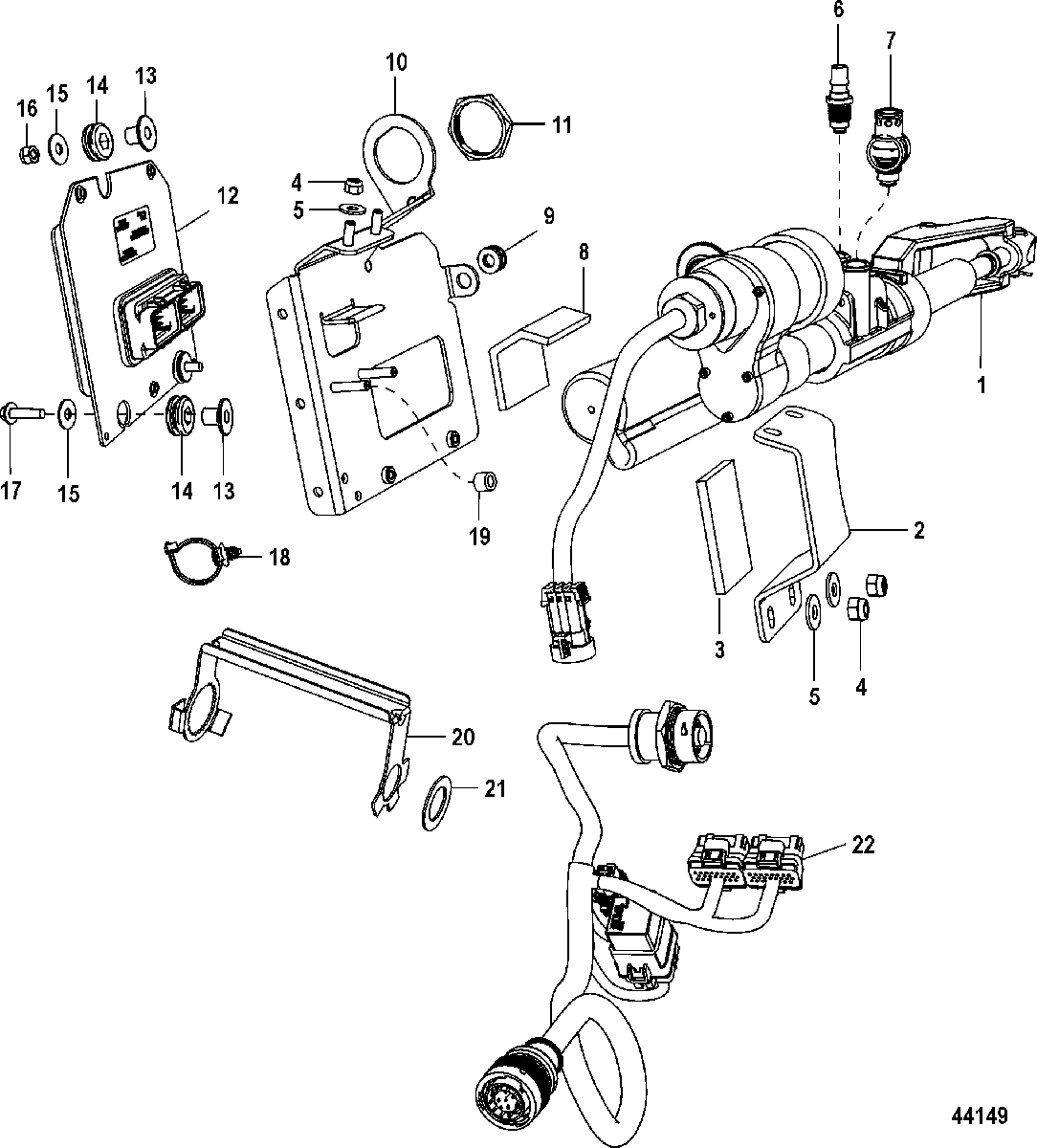

Steering Actuator, Axius (Gen II) для Mercruiser - BRAVO THREE 0W250000 & Up

  • №
    Артикул
    Название
  • -
    8M8025732 STEERING ACTUATOR ASSEMBLY, Complete
    STEERING ACTUATOR ASSEMBLY, Complete
  • 1
    8M0047043 STEERING ACTUATOR ASSEMBLY
    STEERING ACTUATOR ASSEMBLY
  • 2
    8M2018451 BRACKET, TVM Clamp
    BRACKET, TVM Clamp
  • 3
    8M2020078 PAD, Isolation
    PAD, Isolation
  • 4
    11-401366 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 5
    12-4002316 WASHER
    WASHER
  • 6
    22-865414001 FITTING
    FITTING
  • 7
    22-865415 FITTING
    FITTING
  • 8
    8M2020077 PAD, Isolation
    PAD, Isolation
  • 9
    25-8M2019104 GROMMET, (.285 Inside Diameter)
    GROMMET, (.285 Inside Diameter)
  • 10
    8M0047525 BRACKET, TVM Mounting
    BRACKET, TVM Mounting
  • 11
    11-889664 NUT, (1.500-18) Black Nylon
    NUT, (1.500-18) Black Nylon
  • 12
    8M0047524 MODULE - TVM
    MODULE - TVM
  • 13
    23-856954 BUSHING
    BUSHING
  • 14
    25-834985 GROMMET
    GROMMET
  • 15
    12-65567 WASHER, (.265 x .750 x .048) Stainless Steel
    WASHER, (.265 x .750 x .048) Stainless Steel
  • 16
    11-401366 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 17
    10-82130025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 18
    54-899145 CLIP, Tie Strap
    CLIP, Tie Strap
  • 19
    23-822392 SPACER
    SPACER
  • 20
    14-879150A34 WASHER ASSEMBLY
    WASHER ASSEMBLY
  • 21
    12-8M2010068 WASHER, (.78 x 1.25 x .05) Stainless Steel
    WASHER, (.78 x 1.25 x .05) Stainless Steel
  • 22
    84-8M0109446 HARNESS, Thrust Vector Module
    HARNESS, Thrust Vector Module
