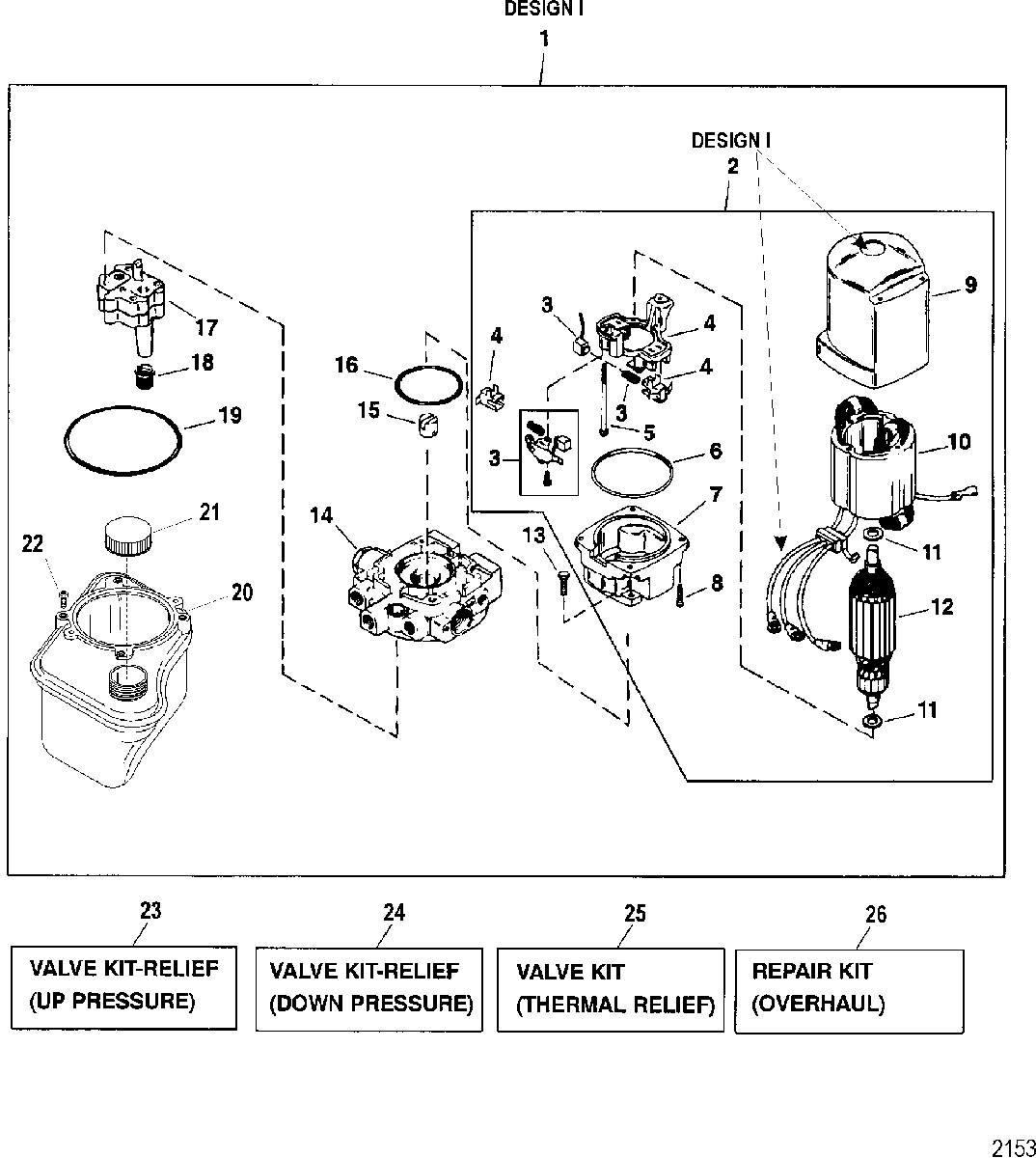

PUMP/MOTOR(TOP MT RESERVOIR) (DESIGN I - 14336A20) для Mercruiser - BRAVO ONE 0M100001 THRU 0W249999

  • №
    Артикул
    Название
  • 1
    865380A13 PUMP/MOTOR ASSEMBLY, Top Mounted Reservoir
    (Design I - Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Spiral Line)
    PUMP/MOTOR ASSEMBLY, Top Mounted Reservoir
    (Design I - Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Spiral Line)
  • 2
    891736T MOTOR ASSEMBLY, Complete
    (Design I - Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Spiral Line)
    MOTOR ASSEMBLY, Complete
    (Design I - Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Spiral Line)
  • 3
    891736T BRUSH KIT
    BRUSH KIT
  • 4
    891736T HOLDER KIT, Brush
    HOLDER KIT, Brush
  • 5
    891736T SCREW
    SCREW
  • 6
    891736T O-RING
    O-RING
  • 7
    891736T END CAP ASSEMBLY
    END CAP ASSEMBLY
  • 8
    891736T SCREW
    SCREW
  • 9
    891736T COVER ASSEMBLY, With Bearing
    COVER ASSEMBLY, With Bearing
  • 10
    891736T FIELD AND FRAME ASSEMBLY
    FIELD AND FRAME ASSEMBLY
  • 11
    891736T WASHER, Thrust
    WASHER, Thrust
  • 12
    891736T ARMATURE
    ARMATURE
  • 13
    10-823444 SCREW
    SCREW
  • 14
    808728T ADAPTER ASSEMBLY
    ADAPTER ASSEMBLY
  • 15
    803852 COUPLING
    COUPLING
  • 16
    25-89498 O-RING, Motor End
    O-RING, Motor End
  • 17
    18529 PUMP ASSEMBLY, Includes Screws
    PUMP ASSEMBLY, Includes Screws
  • 18
    35-89496 FILTER
    FILTER
  • 19
    25-17645 O-RING, Reservoir End
    O-RING, Reservoir End
  • 20
    883166A2 RESERVOIR KIT (With Filters and O Ring References 18 and 19)
    RESERVOIR KIT (With Filters and O Ring References 18 and 19)
  • 21
    36-865448A01 CAP, Oil Reservoir
    CAP, Oil Reservoir
  • 22
    10-883167 SCREW, (#8-32)
    SCREW, (#8-32)
  • 23
    812498A1 VALVE KIT, Relief, UP Pressure
    VALVE KIT, Relief, UP Pressure
  • 24
    812499A1 VALVE KIT, Relief, Down Pressure
    VALVE KIT, Relief, Down Pressure
  • 25
    95353A1 VALVE KIT, Relief, Thermal
    VALVE KIT, Relief, Thermal
  • 26
    18545A1 REPAIR KIT
    REPAIR KIT
