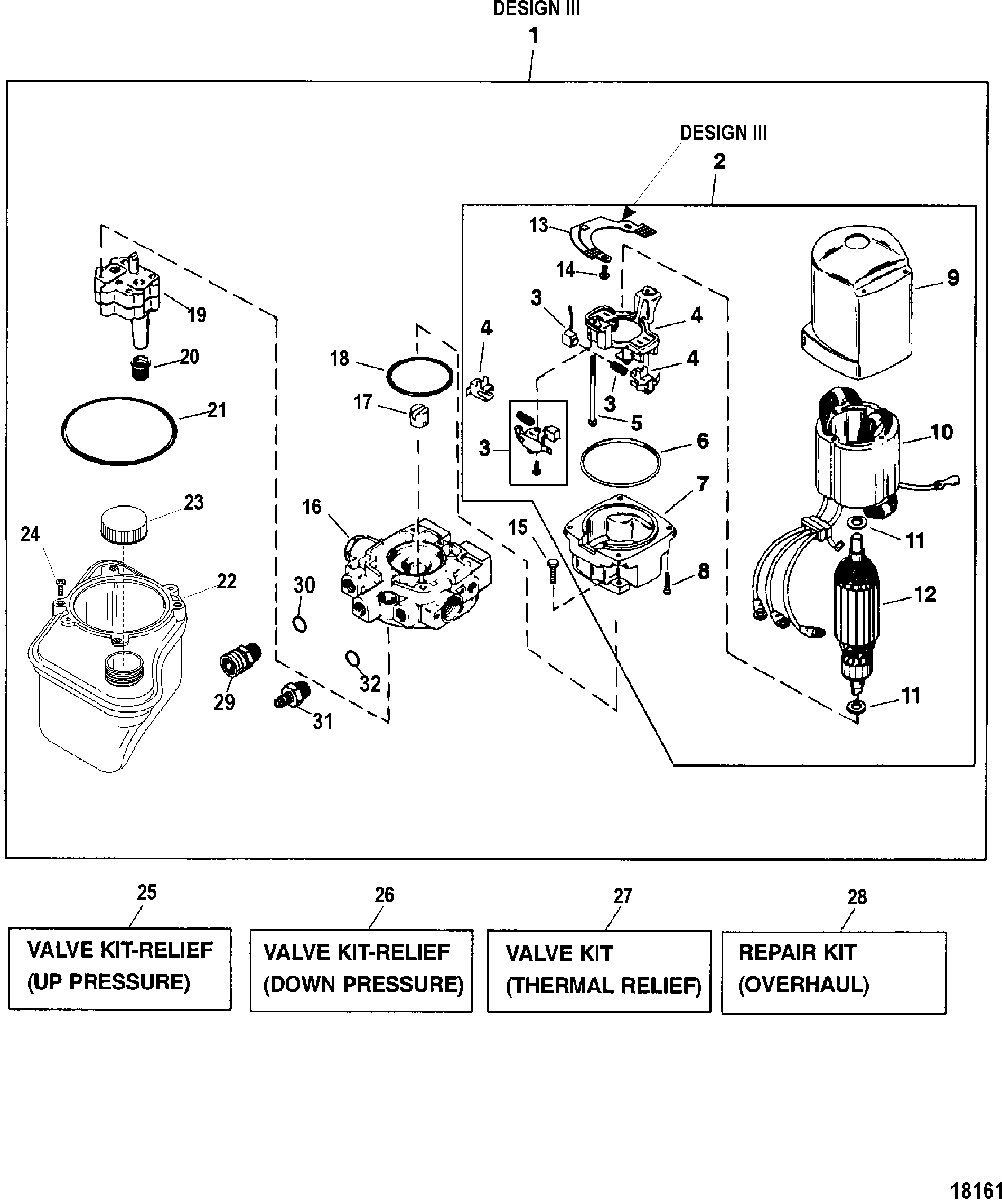

PUMP/MOTOR(Top Mount Reservoir) (Design III - 14336A31) для Mercruiser - BRAVO ONE 0M100001 THRU 0W249999

  • №
    Артикул
    Название
  • 1
    865380A13 PUMP/MOTOR ASSEMBLY
    (Design III, Etched Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line)
    PUMP/MOTOR ASSEMBLY
    (Design III, Etched Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line)
  • 2
    891736T MOTOR ASSEMBLY, Complete
    (Design II, Etched Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line)
    MOTOR ASSEMBLY, Complete
    (Design II, Etched Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line)
  • 3
    891737 BRUSH KIT
    BRUSH KIT
  • 4
    891738 HOLDER ASSEMBLY, Brushes
    HOLDER ASSEMBLY, Brushes
  • 5
    10-891739 SCREW, Brush Holder
    SCREW, Brush Holder
  • 6
    25-891740 O-RING
    O-RING
  • 7
    NSS NOT SOLD SEPARATE, End Cap Assembly
    NOT SOLD SEPARATE, End Cap Assembly
  • 8
    10-891741 SCREW
    SCREW
  • 9
    NSS NOT SOLD SEPARATE, Cover Assembly, With Bearing
    NOT SOLD SEPARATE, Cover Assembly, With Bearing
  • 10
    NSS NOT SOLD SEPARATE, Field And Frame Assembly
    NOT SOLD SEPARATE, Field And Frame Assembly
  • 11
    NSS NOT SOLD SEPARATE, Washer, Thrust
    NOT SOLD SEPARATE, Washer, Thrust
  • 12
    NSS NOT SOLD SEPARATE, Armature
    NOT SOLD SEPARATE, Armature
  • 13
    892608 BOARD ASSEMBLY, Circuit - Radio Frequency Interference Filter
    BOARD ASSEMBLY, Circuit - Radio Frequency Interference Filter
  • 14
    NSS NOT SOLD SEPARATE, Screw
    NOT SOLD SEPARATE, Screw
  • 15
    10-823444 SCREW
    SCREW
  • 16
    808728T ADAPTER ASSEMBLY
    ADAPTER ASSEMBLY
  • 17
    803852 COUPLING
    COUPLING
  • 18
    25-89498 O-RING, Motor End
    O-RING, Motor End
  • 19
    18529 PUMP ASSEMBLY, Includes Screws
    PUMP ASSEMBLY, Includes Screws
  • 20
    35-89496 FILTER
    FILTER
  • 21
    25-17645 O-RING, Reservoir End
    O-RING, Reservoir End
  • 22
    883166A2 RESERVOIR KIT, With Filters And O-Ring
    (Reference 20 And Reference 21)
    RESERVOIR KIT, With Filters And O-Ring
    (Reference 20 And Reference 21)
  • 23
    36-865448A01 CAP, Standard
    CAP, Standard
  • 23
    36-865448A01 CAP, Oil Reservoir, Rough Water Application
    CAP, Oil Reservoir, Rough Water Application
  • 24
    10-883167 SCREW, (#8-32)
    SCREW, (#8-32)
  • 25
    812498A1 VALVE KIT, Relief, Up Pressure
    VALVE KIT, Relief, Up Pressure
  • 26
    812499A1 VALVE KIT, Relief, Down Pressure
    VALVE KIT, Relief, Down Pressure
  • 27
    95353A1 VALVE KIT, Relief, Thermal
    VALVE KIT, Relief, Thermal
  • 28
    18545A1 REPAIR KIT
    REPAIR KIT
  • 29
    22-865413002 FITTING, Stainless Steel
    SN# 0W100000 & Up
    FITTING, Stainless Steel
    SN# 0W100000 & Up
  • 30
    25-891868 O-RING
    SN# 0W100000 & Up
    O-RING
    SN# 0W100000 & Up
  • 31
    22-865412001 FITTING, Stainless Steel
    SN# 0W100000 & Up
    FITTING, Stainless Steel
    SN# 0W100000 & Up
  • 32
    25-891868 O-RING
    SN# 0W100000 & Up
    O-RING
    SN# 0W100000 & Up
