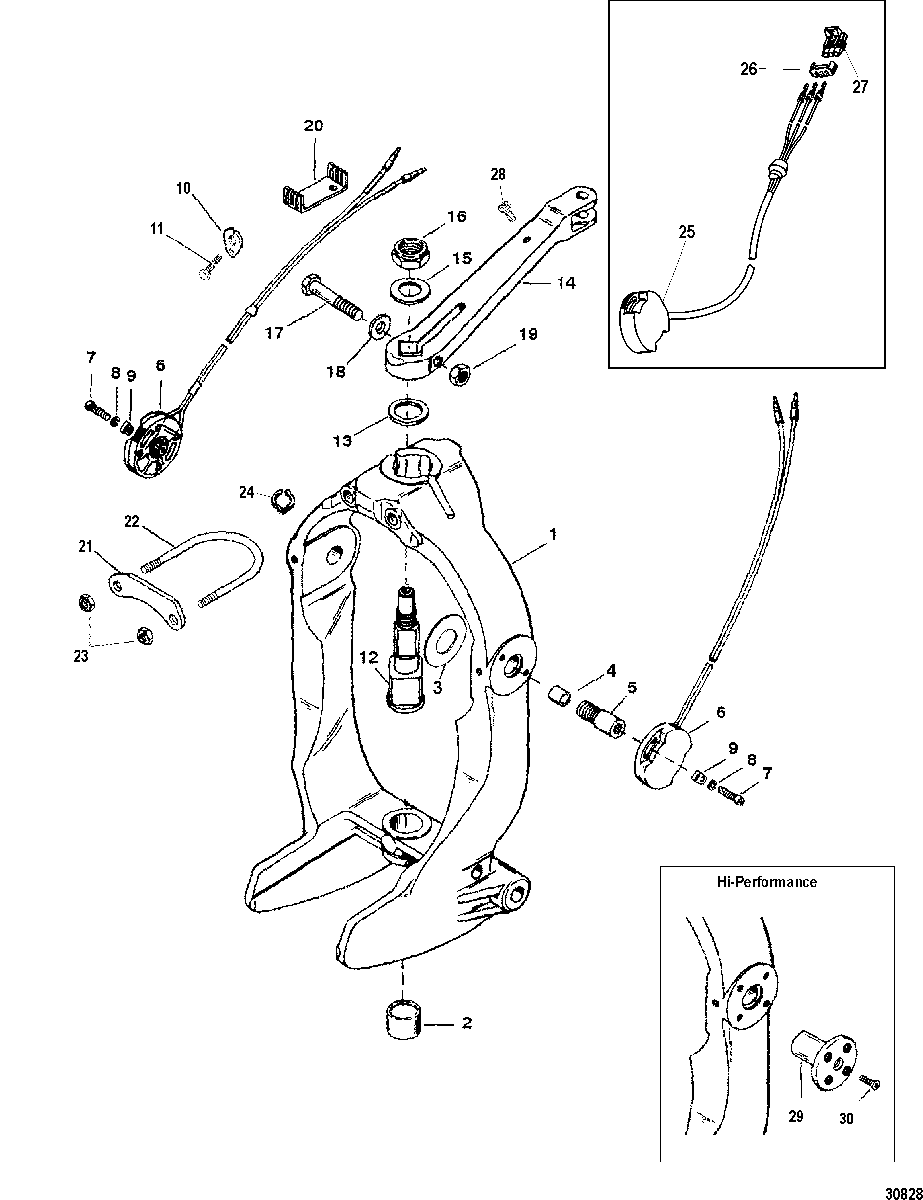

GIMBAL RING AND STEERING LEVER для Mercruiser - BRAVO ONE 0M100001 THRU 0W249999

  • №
    Артикул
    Название
  • 1
    8M0062440 GIMBAL RING ASSEMBLY
    GIMBAL RING ASSEMBLY
  • 1
    822374A17 GIMBAL RING ASSEMBLY
    (High Performance With or WIthout Trim Sender)
    GIMBAL RING ASSEMBLY
    (High Performance With or WIthout Trim Sender)
  • 2
    23-847638 BUSHING
    BUSHING
  • 3
    12-41721 WASHER
    WASHER
  • 4
    23-847637 BUSHING
    BUSHING
  • 5
    10-86801 SCREW, Hinge Pin
    SCREW, Hinge Pin
  • 6
    805320A03 SWITCH ASSEMBLY (MAGNUM SERIES TRANSOM)
    SWITCH ASSEMBLY (MAGNUM SERIES TRANSOM)
  • 7
    10-37978 SCREW, (#10-32 x .750) Stainless Steel
    SCREW, (#10-32 x .750) Stainless Steel
  • 8
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 9
    57008 RETAINER
    RETAINER
  • 10
    54-12078 CLAMP
    CLAMP
  • 11
    10-28635 SCREW, (.250-20 x .620) Stainless Steel
    SCREW, (.250-20 x .620) Stainless Steel
  • 12
    98230A1 SHAFT ASSEMBLY (UPPER)
    SHAFT ASSEMBLY (UPPER)
  • 13
    12-98548 WASHER, (1.125 )
    WASHER, (1.125 )
  • 14
    866322A01 LEVER ASSEMBLY
    LEVER ASSEMBLY
  • 15
    12-85344 WASHER, (.750 Inside Diameter)
    WASHER, (.750 Inside Diameter)
  • 16
    11-8M2014641 NUT, (.750-16)
    NUT, (.750-16)
  • 17
    10-807204 SCREW, (.437-20 x 2.00)
    SCREW, (.437-20 x 2.00)
  • 18
    12-861854 WASHER, (.453 x .750 x .032) Stainless Steel
    WASHER, (.453 x .750 x .032) Stainless Steel
  • 19
    11-8M2008293 NUT, (.437-20)
    NUT, (.437-20)
  • 20
    79146 RETAINER
    RETAINER
  • 21
    816510T BRACKET
    BRACKET
  • 22
    10-805164 U BOLT
    U BOLT
  • 23
    11-862903 NUT, (.375-24)
    NUT, (.375-24)
  • 24
    54-818557 CLAMP
    CLAMP
  • 25
    8M0107462 SENDER ASSEMBLY, Trim (SMARTCRAFT SERIES TRANSOM)
    SENDER ASSEMBLY, Trim (SMARTCRAFT SERIES TRANSOM)
  • 26
    831957 RETAINER
    RETAINER
  • 27
    8307973 CONNECTOR
    CONNECTOR
  • 28
    10-45742 SCREW, (.190-32 x .312)
    SCREW, (.190-32 x .312)
  • 28
    10-8M0113176 SCREW, (#10-24 x .38)
    SCREW, (#10-24 x .38)
  • 29
    8219971 PIN, Hinge
    (High Performance)
    PIN, Hinge
    (High Performance)
  • 30
    10-840907 SCREW, (.250-20 x .750)
    (High Performance)
    SCREW, (.250-20 x .750)
    (High Performance)
  • -
    805130A6 SENDER KIT, Dual Station
    SENDER KIT, Dual Station
  • NS
    805134A4 ROTOR KIT (MAGNUM SERIES)
    ROTOR KIT (MAGNUM SERIES)
