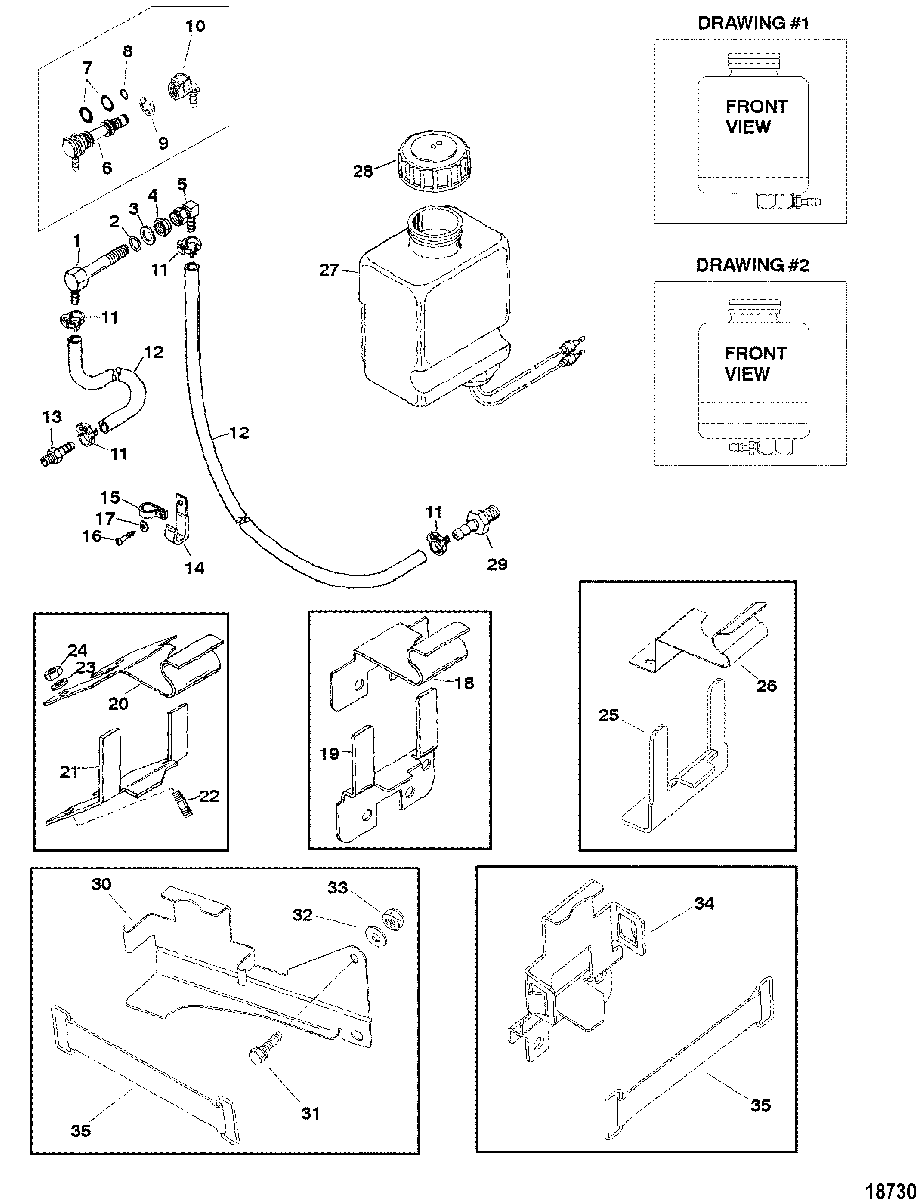

OIL RESERVOIR COMPONENTS для Mercruiser - BRAVO ONE 0F730000 THRU 0M100000

  • №
    Артикул
    Название
  • 1
    22-18922 CONNECTOR
    CONNECTOR
  • 2
    25-201951 O-RING
    O-RING
  • 3
    12-861854 WASHER
    WASHER
  • 4
    11-35053 NUT, (.437-20)
    NUT, (.437-20)
  • 5
    22-18923 FITTING
    FITTING
  • 6
    22-861150T02 PLUG ASSEMBLY, Bulk Head
    PLUG ASSEMBLY, Bulk Head
  • 7
    25-201951 O-RING, (.487 x .103)
    O-RING, (.487 x .103)
  • 8
    25-627021 O-RING, (.301 x .070)
    O-RING, (.301 x .070)
  • 9
    53-87843 E RING
    E RING
  • 10
    22-861163 QUICK CONNECTOR, (90 Degree)
    QUICK CONNECTOR, (90 Degree)
  • 11
    54-415825 CLAMP, Nylon
    CLAMP, Nylon
  • 12
    32-8M0040618 HOSE, (54.00 Inches Bulk)
    HOSE, (54.00 Inches Bulk)
  • 13
    22-16739 CONNECTOR
    CONNECTOR
  • 14
    54-642351 J CLIP
    J CLIP
  • 15
    54-23567 CLIP
    CLIP
  • 16
    10-60605 SCREW, (#10-16 x .750)
    SCREW, (#10-16 x .750)
  • 17
    8M0084613 C WASHER
    C WASHER
  • 18
    860065A1 BRACKET, Clip (3.0L/3.6L,4.2L DIESEL/7.4L/7.4LX/454/502)
    (See Illustration for Proper Identification)
    BRACKET, Clip (3.0L/3.6L,4.2L DIESEL/7.4L/7.4LX/454/502)
    (See Illustration for Proper Identification)
  • 19
    860065A1 BRACKET (3.0L/3.6L,4.2L DIESEL/7.4L/7.4LX/454/502)
    (See Illustration for Proper Identification)
    BRACKET (3.0L/3.6L,4.2L DIESEL/7.4L/7.4LX/454/502)
    (See Illustration for Proper Identification)
  • 20
    806292T1 BRACKET
    (See Illustration for Proper Identification)
    BRACKET
    (See Illustration for Proper Identification)
  • 21
    807025T BRACKET
    (See Illustration for Proper Identification)
    BRACKET
    (See Illustration for Proper Identification)
  • 22
    16-8M2004610 STUD, (.375-16 x 2.130)
    4.3LX/5.7L/5.7LX (Carb)
    STUD, (.375-16 x 2.130)
    4.3LX/5.7L/5.7LX (Carb)
  • 23
    12-20553 WASHER, (.406 x .734 x .063)
    WASHER, (.406 x .734 x .063)
  • 24
    11-32219 NUT, (.375-16)
    NUT, (.375-16)
  • 25
    806649T BRACKET, 262 MAG. EFI
    (See Illustration for Proper Identification)
    BRACKET, 262 MAG. EFI
    (See Illustration for Proper Identification)
  • 26
    806650T BRACKET, 5.7L/5.7LX/350 MAGNUM (EFI) 262 MAG. EFI
    (See Illustration for Proper Identification)
    BRACKET, 5.7L/5.7LX/350 MAGNUM (EFI) 262 MAG. EFI
    (See Illustration for Proper Identification)
  • 27
    8M0075708 RESERVOIR ASSEMBLY, Oil, Fitting Pointing Toward Right Side
    (SEE DRAWING #1)
    RESERVOIR ASSEMBLY, Oil, Fitting Pointing Toward Right Side
    (SEE DRAWING #1)
  • 27
    8M0075709 RESERVOIR, Fitting Pointing Toward Left Side
    (SEE DRAWING #2)
    RESERVOIR, Fitting Pointing Toward Left Side
    (SEE DRAWING #2)
  • 28
    36-8067271 CAP, Drive Lube Monitor, Oil Bottle
    CAP, Drive Lube Monitor, Oil Bottle
  • 29
    22-808624 CONNECTOR
    CONNECTOR
  • 30
    807839T1 BRACKET (4.3LX/4.3LXH/262 MAG. EFI 7.4L/454/7.4LX EFI)
    (See Illustration for Proper Identification)
    BRACKET (4.3LX/4.3LXH/262 MAG. EFI 7.4L/454/7.4LX EFI)
    (See Illustration for Proper Identification)
  • 31
    10-657461 SCREW AND LOCKWASHER, (.250-20 x .625) (4.3LX/4.3LXH/262 MAG. EFI 7.4L/454/7.4LX EFI)
    SCREW AND LOCKWASHER, (.250-20 x .625) (4.3LX/4.3LXH/262 MAG. EFI 7.4L/454/7.4LX EFI)
  • 32
    12-69057 WASHER, (.281 x .734 x .063) (4.3LX/4.3LXH/262 MAG. EFI 7.4L/454/7.4LX EFI)
    WASHER, (.281 x .734 x .063) (4.3LX/4.3LXH/262 MAG. EFI 7.4L/454/7.4LX EFI)
  • 33
    11-8267088 NUT, (.250-20) (4.3LX/4.3LXH/262 MAG. EFI 7.4L/454/7.4LX EFI)
    NUT, (.250-20) (4.3LX/4.3LXH/262 MAG. EFI 7.4L/454/7.4LX EFI)
  • 34
    860065A1 BRACKET KIT, Oil Bottle (5.7L/5.7LX/350 MAGNUM CARB & EFI/ 3.0L/3.6L4.2L DIESEL/7.4L/7.4LX/454/502)
    (See Illustration for Proper Identification)
    BRACKET KIT, Oil Bottle (5.7L/5.7LX/350 MAGNUM CARB & EFI/ 3.0L/3.6L4.2L DIESEL/7.4L/7.4LX/454/502)
    (See Illustration for Proper Identification)
  • 35
    808023T STRAP, Bracket
    (See Illustration for Proper Identification)
    STRAP, Bracket
    (See Illustration for Proper Identification)
