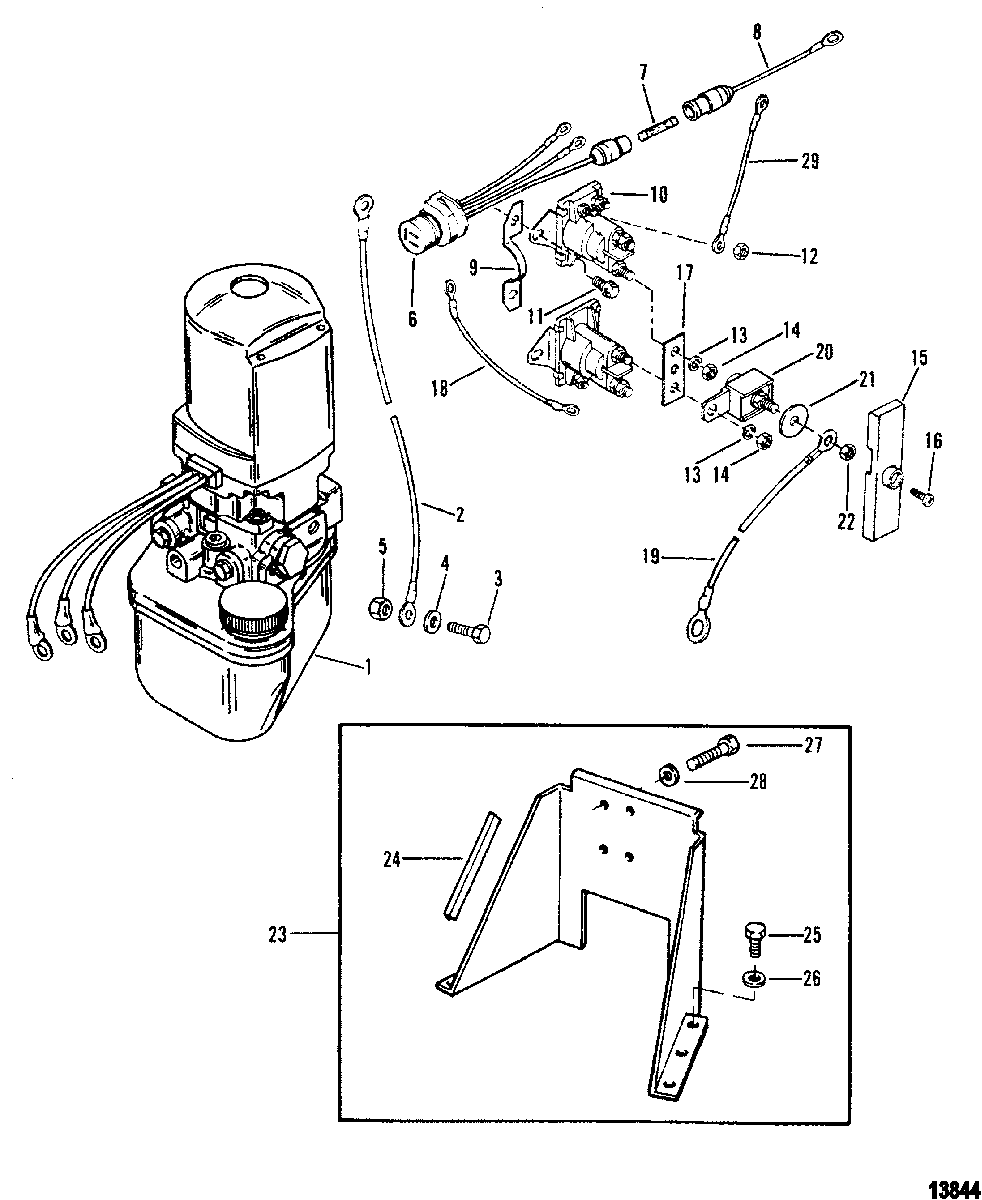

HYDRAULIC PUMP AND BRACKET для Mercruiser - BRAVO ONE 0F730000 THRU 0M100000

  • №
    Артикул
    Название
  • 1
    865380A13 PUMP/MOTOR ASSEMBLY
    (SEE "HYDRAULIC PUMP" FOR BREAKDOWN)
    PUMP/MOTOR ASSEMBLY
    (SEE "HYDRAULIC PUMP" FOR BREAKDOWN)
  • 2
    84-79138A9 CABLE ASSEMBLY, (6.00 Feet) Black-Negative (NEGATIVE)
    CABLE ASSEMBLY, (6.00 Feet) Black-Negative (NEGATIVE)
  • 3
    10-90285 SCREW, (.312-18 x .625)
    SCREW, (.312-18 x .625)
  • 4
    12-56720 WASHER, (.330 x .750 x .060) Stainless Steel
    WASHER, (.330 x .750 x .060) Stainless Steel
  • 5
    11-68292 NUT, (.312-18)
    NUT, (.312-18)
  • 6
    84-79147A3 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 7
    88-79091 FUSE, 20 Ampere
    FUSE, 20 Ampere
  • 8
    84-95084A2 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 9
    88075 RETAINER
    RETAINER
  • 10
    89-96158T SOLENOID, Starter
    SOLENOID, Starter
  • 11
    10-41508 SCREW, (.250-20 x .500) Stainless Steel
    SCREW, (.250-20 x .500) Stainless Steel
  • 12
    11-26419 NUT, (#8-32) Brass
    NUT, (#8-32) Brass
  • 13
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 14
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
  • 15
    85-861680 BOOT
    BOOT
  • 16
    10-48409 SCREW, (#10-16 x .625) Stainless Steel
    SCREW, (#10-16 x .625) Stainless Steel
  • 17
    94275 LINK
    LINK
  • 18
    84-86322A15 CABLE ASSEMBLY, (5.50 Inches) Black, Black
    CABLE ASSEMBLY, (5.50 Inches) Black, Black
  • 19
    84-79139A12 CABLE ASSEMBLY, Red-Positive (POSITIVE)
    CABLE ASSEMBLY, Red-Positive (POSITIVE)
  • 20
    88-79023T10 FUSE ASSEMBLY, 110 Ampere
    FUSE ASSEMBLY, 110 Ampere
  • 21
    12-96457 WASHER, Phenolic (.27 x .81 x .062)
    WASHER, Phenolic (.27 x .81 x .062)
  • 22
    11-21825 NUT, (.250-28)
    NUT, (.250-28)
  • 23
    862548A1 BRACKET ASSEMBLY, Floor Mounted
    BRACKET ASSEMBLY, Floor Mounted
  • 24
    58491 CHANNEL, Rubber (4.00 Inches)
    CHANNEL, Rubber (4.00 Inches)
  • 25
    10-59784 SCREW, (.250-10 x 1.00)
    SCREW, (.250-10 x 1.00)
  • 26
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 27
    10-35386 SCREW, (.312-18 x 1.00)
    SCREW, (.312-18 x 1.00)
  • 28
    13-39107 LOCKWASHER, (.312-24)
    LOCKWASHER, (.312-24)
  • 29
    84-86322A24 CABLE ASSEMBLY, (4.00 Inches), Black
    CABLE ASSEMBLY, (4.00 Inches), Black
  • -
    865380A25 PUMP ASSEMBLY, Trim
    (INCLUDES ALL PARTS ON THIS PAGE)
    PUMP ASSEMBLY, Trim
    (INCLUDES ALL PARTS ON THIS PAGE)
