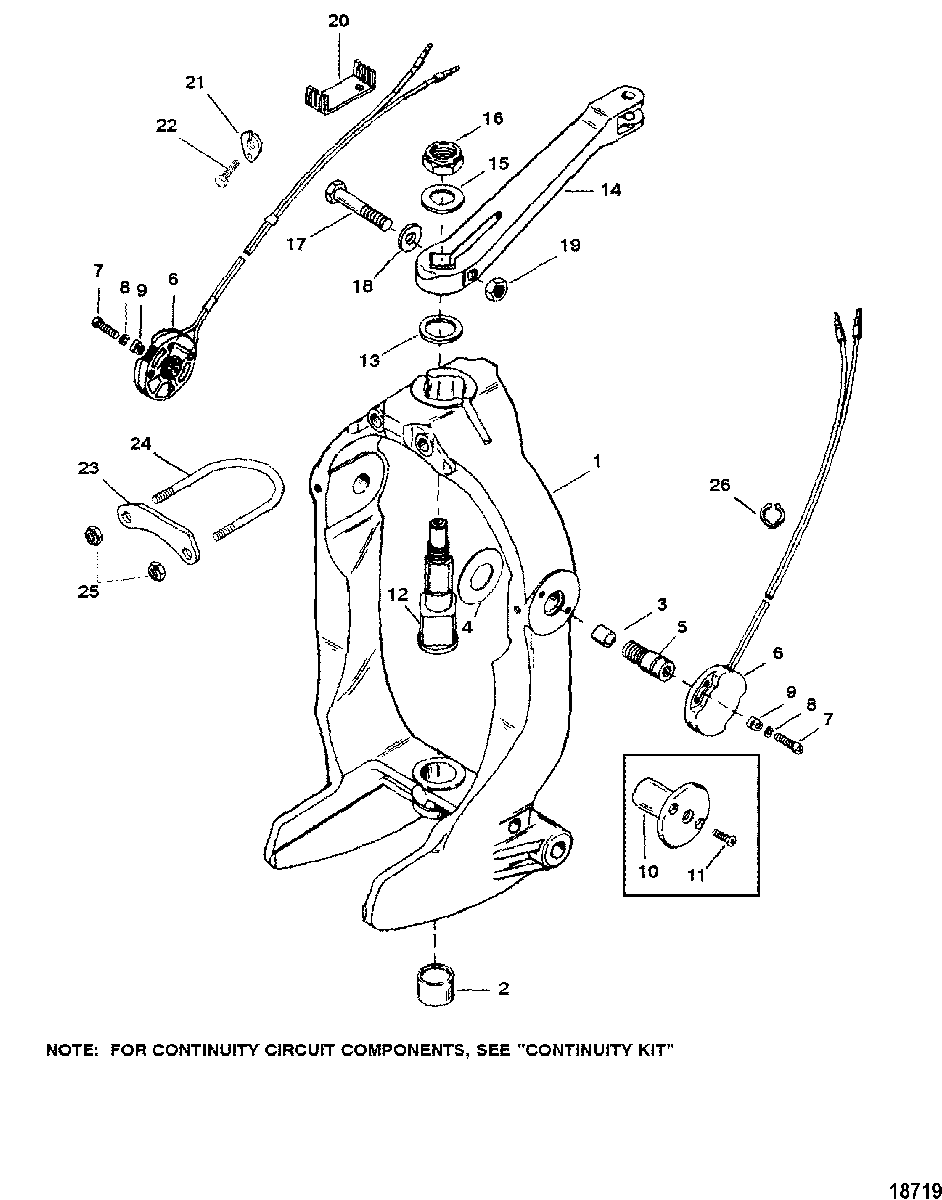

GIMBAL RING AND STEERING LEVER для Mercruiser - BRAVO ONE 0F730000 THRU 0M100000

  • №
    Артикул
    Название
  • 1
    8M0062440 GIMBAL RING ASSEMBLY
    (FOR USE WITH TRIM SENDERS)
    GIMBAL RING ASSEMBLY
    (FOR USE WITH TRIM SENDERS)
  • 2
    23-847638 BUSHING, Use With Magnum Gimbal Ring
    (FOR USE WITH TRIM SENDERS)
    BUSHING, Use With Magnum Gimbal Ring
    (FOR USE WITH TRIM SENDERS)
  • 2
    23-99352 BEARING, Use With Standard Gimbal Ring
    (FOR USE WITH TRIM SENDERS)
    BEARING, Use With Standard Gimbal Ring
    (FOR USE WITH TRIM SENDERS)
  • 3
    23-847637 BUSHING
    (FOR USE WITH TRIM SENDERS)
    BUSHING
    (FOR USE WITH TRIM SENDERS)
  • 4
    12-41721 WASHER
    (FOR USE WITH TRIM SENDERS)
    WASHER
    (FOR USE WITH TRIM SENDERS)
  • 5
    10-86801 SCREW, Hinge Pin
    (FOR USE WITH TRIM SENDERS)
    SCREW, Hinge Pin
    (FOR USE WITH TRIM SENDERS)
  • 6
    805320A03 SWITCH ASSEMBLY
    (FOR USE WITH TRIM SENDERS)
    SWITCH ASSEMBLY
    (FOR USE WITH TRIM SENDERS)
  • NS
    805134A4 ROTOR KIT
    (FOR USE WITH TRIM SENDERS)
    ROTOR KIT
    (FOR USE WITH TRIM SENDERS)
  • 7
    10-37978 SCREW, (#10-32 x .750) Stainless Steel
    (FOR USE WITH TRIM SENDERS)
    SCREW, (#10-32 x .750) Stainless Steel
    (FOR USE WITH TRIM SENDERS)
  • 8
    13-26996 LOCKWASHER, (#10) Stainless Steel
    (FOR USE WITH TRIM SENDERS)
    LOCKWASHER, (#10) Stainless Steel
    (FOR USE WITH TRIM SENDERS)
  • 9
    57008 RETAINER
    (FOR USE WITH TRIM SENDERS)
    RETAINER
    (FOR USE WITH TRIM SENDERS)
  • 1
    822374A17 GIMBAL RING ASSEMBLY
    (HI PERFORMANCE) (FOR USE WITHOUT TRIM SENDERS)
    GIMBAL RING ASSEMBLY
    (HI PERFORMANCE) (FOR USE WITHOUT TRIM SENDERS)
  • 2
    23-847638 BUSHING
    (FOR USE WITHOUT TRIM SENDERS)
    BUSHING
    (FOR USE WITHOUT TRIM SENDERS)
  • 4
    12-41721 WASHER
    (FOR USE WITHOUT TRIM SENDERS)
    WASHER
    (FOR USE WITHOUT TRIM SENDERS)
  • 10
    821997 PIN, Hinge
    (FOR USE WITHOUT TRIM SENDERS)
    PIN, Hinge
    (FOR USE WITHOUT TRIM SENDERS)
  • 11
    10-821579 SCREW, (#10-24 x .500)
    (FOR USE WITHOUT TRIM SENDERS)
    SCREW, (#10-24 x .500)
    (FOR USE WITHOUT TRIM SENDERS)
  • 12
    98230A1 SHAFT ASSEMBLY, Upper
    SHAFT ASSEMBLY, Upper
  • 13
    12-98548 WASHER, (1.125 )
    WASHER, (1.125 )
  • 14
    866322A01 LEVER ASSEMBLY
    LEVER ASSEMBLY
  • 15
    12-85344 WASHER, (.750 Inside Diameter)
    WASHER, (.750 Inside Diameter)
  • 16
    11-8M2014641 NUT, (.750-16)
    NUT, (.750-16)
  • 17
    10-807204 SCREW, (.437-20 x 2.00)
    SCREW, (.437-20 x 2.00)
  • 18
    12-861854 WASHER
    WASHER
  • 19
    11-8M2008293 NUT, (.437-20)
    NUT, (.437-20)
  • 20
    79146 RETAINER
    RETAINER
  • 21
    54-12078 CLAMP
    CLAMP
  • 22
    10-28635 SCREW, (.250-20 x .620) Stainless Steel
    SCREW, (.250-20 x .620) Stainless Steel
  • 23
    816510T BRACKET
    BRACKET
  • 24
    10-805164 U BOLT
    U BOLT
  • 25
    11-862903 NUT, (.375-24)
    NUT, (.375-24)
  • 26
    54-818557 CLAMP
    CLAMP
  • -
    805130A6 SENDER KIT, Dual Station
    SENDER KIT, Dual Station
