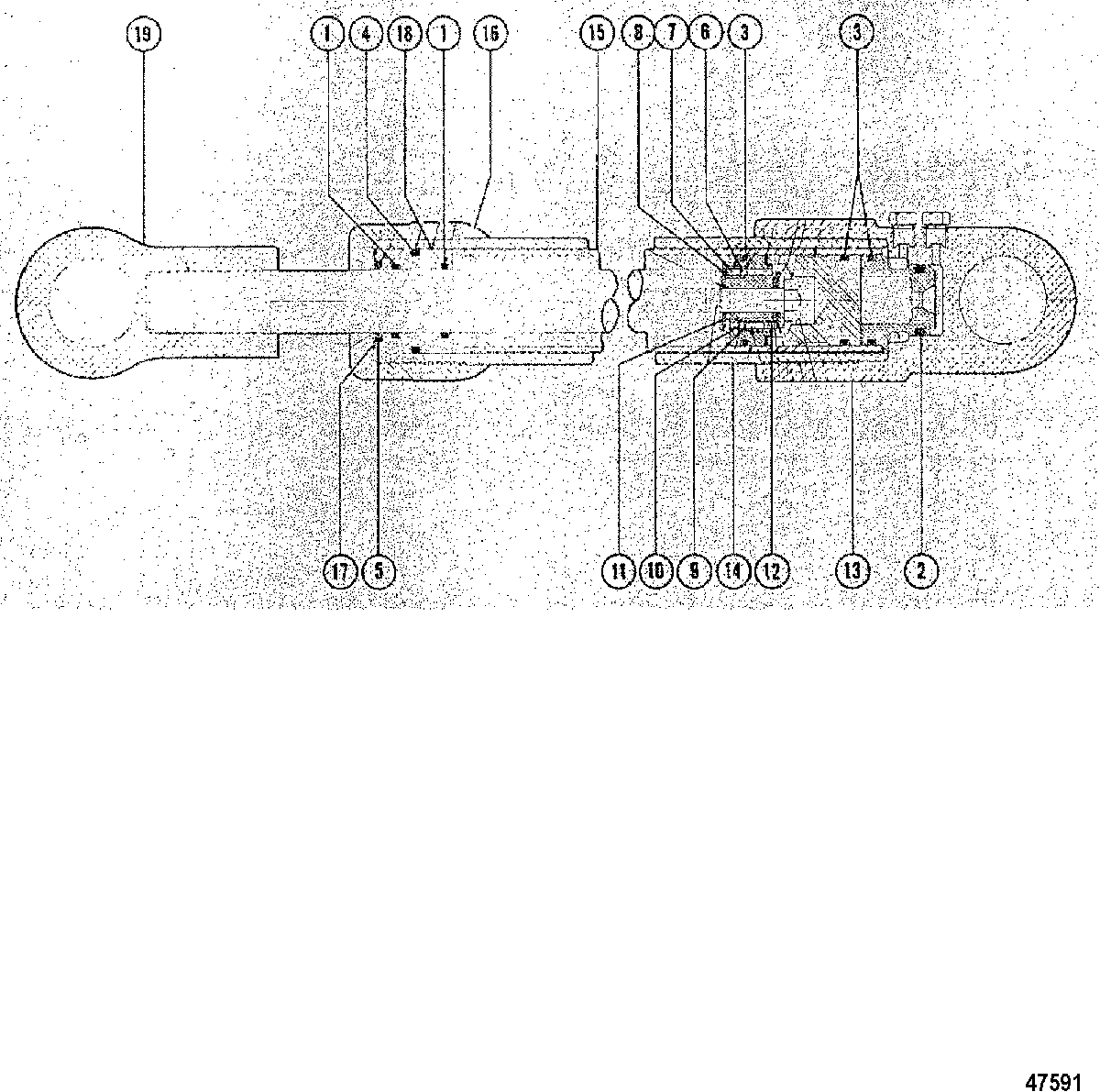

POWER TRIM CYLINDER REPAIR KITS для Mercruiser - 255-TRS 1973-1974 3377316 THRU 4203749

  • №
    Артикул
    Название
  • -
    25-47389A2 O-RING KIT
    O-RING KIT
  • 1
    N.S.S. Not Sold Separate (1"X 1 3 /16"X 3/32")
    Not Sold Separate (1"X 1 3 /16"X 3/32")
  • 2
    N.S.S. Not Sold Separate (7/8"X1 1/8"X1/8")
    Not Sold Separate (7/8"X1 1/8"X1/8")
  • 3
    N.S.S. Not Sold Separate (1 1/4"X1 7/16"X3/32")
    Not Sold Separate (1 1/4"X1 7/16"X3/32")
  • 4
    N.S.S. Not Sold Separate (1 3/8"X1 5/8"X1/8")
    Not Sold Separate (1 3/8"X1 5/8"X1/8")
  • 5
    N.S.S. Not Sold Separate
    Not Sold Separate
  • -
    47348A1 PISTON ASSEMBLY, Shock
    PISTON ASSEMBLY, Shock
  • 6
    N.S.S. Not Sold Separate, STEEL
    Not Sold Separate, STEEL
  • 7
    N.S.S. Not Sold Separate, TUBULAR
    Not Sold Separate, TUBULAR
  • 8
    N.S.S. Not Sold Separate, COMPRESSION
    Not Sold Separate, COMPRESSION
  • 9
    N.S.S. Not Sold Separate, TUBULAR
    Not Sold Separate, TUBULAR
  • 10
    N.S.S. Not Sold Separate, SHOCK
    Not Sold Separate, SHOCK
  • 11
    N.S.S. Not Sold Separate, SEALING
    Not Sold Separate, SEALING
  • 12
    N.S.S. Not Sold Separate, COMPRESION
    Not Sold Separate, COMPRESION
  • --
    47342A22 OUTER CYLINDER ASSEMBLY
    FOR CORRECT OUTER CYLINDER ASSEMBLY, CHECK LENGTH OF REF #14.
    OUTER CYLINDER ASSEMBLY
    FOR CORRECT OUTER CYLINDER ASSEMBLY, CHECK LENGTH OF REF #14.
  • 13
    N.S.S. Not Sold Separate, CYLINDER
    FOR CORRECT OUTER CYLINDER ASSEMBLY, CHECK LENGTH OF REF #14.
    Not Sold Separate, CYLINDER
    FOR CORRECT OUTER CYLINDER ASSEMBLY, CHECK LENGTH OF REF #14.
  • 14
    N.S.S. Not Sold Separate, OUTER - 13 3/4" IN LENGTH
    FOR CORRECT OUTER CYLINDER ASSEMBLY, CHECK LENGTH OF REF #14.
    Not Sold Separate, OUTER - 13 3/4" IN LENGTH
    FOR CORRECT OUTER CYLINDER ASSEMBLY, CHECK LENGTH OF REF #14.
  • --
    47342A25 OUTER CYLINDER ASSEMBLY
    FOR CORRECT OUTER CYLINDER ASSEMBLY, CHECK LENGTH OF REF #14.
    OUTER CYLINDER ASSEMBLY
    FOR CORRECT OUTER CYLINDER ASSEMBLY, CHECK LENGTH OF REF #14.
  • 13
    N.S.S. Not Sold Separate, CYLINDER
    FOR CORRECT OUTER CYLINDER ASSEMBLY, CHECK LENGTH OF REF #14.
    Not Sold Separate, CYLINDER
    FOR CORRECT OUTER CYLINDER ASSEMBLY, CHECK LENGTH OF REF #14.
  • 14
    N.S.S. Not Sold Separate, OUTER - 11 3/8" IN LENGTH
    FOR CORRECT OUTER CYLINDER ASSEMBLY, CHECK LENGTH OF REF #14.
    Not Sold Separate, OUTER - 11 3/8" IN LENGTH
    FOR CORRECT OUTER CYLINDER ASSEMBLY, CHECK LENGTH OF REF #14.
  • 15
    32-47387 TUBE ASSEMBLY, Inner Cylinder (12 1/2" IN LENGTH)
    FOR CORRECT INNER CYLINDER ASSEMBLY, CHECK LENGTH OF TUBE
    TUBE ASSEMBLY, Inner Cylinder (12 1/2" IN LENGTH)
    FOR CORRECT INNER CYLINDER ASSEMBLY, CHECK LENGTH OF TUBE
  • 15
    32-49275A1 INNER CYLINDER TUBE ASSEMBLY (10 1/8" IN LENTH)
    FOR CORRECT INNER CYLINDER ASSEMBLY, CHECK LENGTH OF TUBE
    INNER CYLINDER TUBE ASSEMBLY (10 1/8" IN LENTH)
    FOR CORRECT INNER CYLINDER ASSEMBLY, CHECK LENGTH OF TUBE
  • --
    55825A1 END CAP ASSEMBLY
    END CAP ASSEMBLY
  • 16
    N.S.S. Not Sold Separate
    Not Sold Separate
  • 17
    N.S.S. Not Sold Separate, END CAP
    Not Sold Separate, END CAP
  • --
    23-57093A1 BUSHING KIT
    BUSHING KIT
  • 18
    55824 BEARING, PISTON ROD
    BEARING, PISTON ROD
  • 19
    473431 PIVOT END
    PIVOT END
