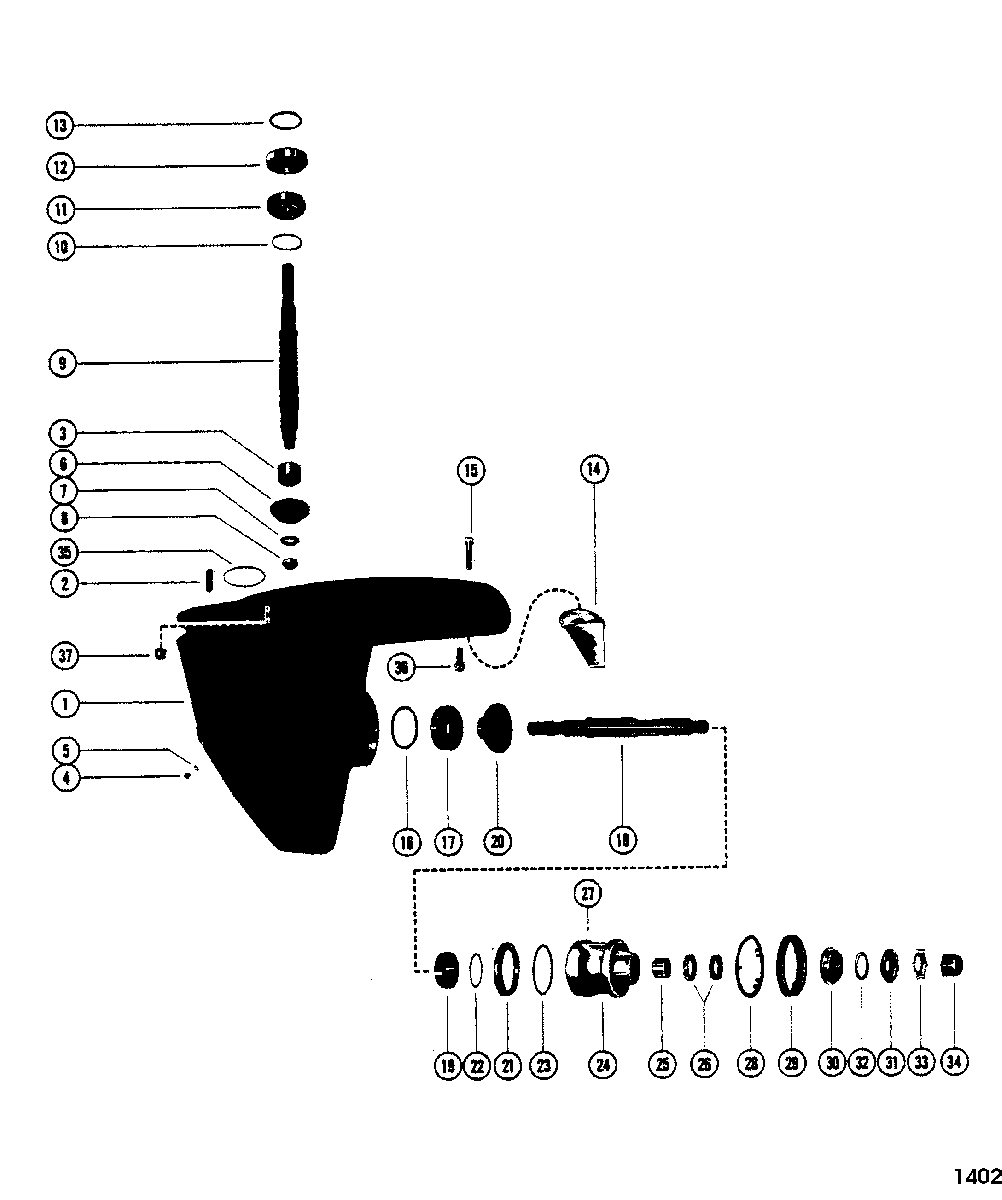

GEAR HOUSING ASSEMBLY, COMPLETE для Mercruiser - 255-TRS 1973-1974 3377316 THRU 4203749

  • №
    Артикул
    Название
  • -
    1646-5321A5 GEAR HOUSING ASSEMBLY, COMPLETE (LEFT HAND ROTATION)
    MERCRUISER 255 TRS
    GEAR HOUSING ASSEMBLY, COMPLETE (LEFT HAND ROTATION)
    MERCRUISER 255 TRS
  • -
    1646-5321A4 GEAR HOUSING ASSEMBLY, COMPLETE (RIGHT HAND ROTATION)
    MERCRUISER 255 TRS
    GEAR HOUSING ASSEMBLY, COMPLETE (RIGHT HAND ROTATION)
    MERCRUISER 255 TRS
  • -
    1646-5321A14 GEAR HOUSING ASSEMBLY, COMPLETE (LEFT HAND ROTATION)
    MERCRUISER 280 TRS
    GEAR HOUSING ASSEMBLY, COMPLETE (LEFT HAND ROTATION)
    MERCRUISER 280 TRS
  • -
    1646-5321A13 GEAR HOUSING ASSEMBLY, COMPLETE RIGHT HAND ROTATION)
    MERCRUISER 280 TRS
    GEAR HOUSING ASSEMBLY, COMPLETE RIGHT HAND ROTATION)
    MERCRUISER 280 TRS
  • 1
    1646-5321A6 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 2
    16-8M0041668 STUD, (.437-14/.437-20 x 1.875), GEAR HOUSING TO DRIVE SHAFT HOUSING (1 7/8")
    STUD, (.437-14/.437-20 x 1.875), GEAR HOUSING TO DRIVE SHAFT HOUSING (1 7/8")
  • 3
    31-68290A1 BEARING, Roller, DRIVE SHAFT
    BEARING, Roller, DRIVE SHAFT
  • 4
    10-79953Q04 SCREW, (.375-16), VENT - GEAR HOUSING
    SCREW, (.375-16), VENT - GEAR HOUSING
  • 5
    12-191833 WASHER, SEAL - VENT SCREW
    WASHER, SEAL - VENT SCREW
  • 6
    43-66665 GEAR, PINION - MERCRUISER 255 TRS
    GEAR, PINION - MERCRUISER 255 TRS
  • 6
    43-70934T1 GEAR, PINION - MERCRUISER 280 TRS
    GEAR, PINION - MERCRUISER 280 TRS
  • 7
    12-54048 WASHER, PINION GEAR TO DRIVE SHAFT
    WASHER, PINION GEAR TO DRIVE SHAFT
  • 8
    11-55819 NUT, PINION GEAR TO DRIVE SHAFT
    NUT, PINION GEAR TO DRIVE SHAFT
  • 9
    45-66666 DRIVESHAFT
    DRIVESHAFT
  • 10
    15-66672A1 SHIM ASSEMBLY, ROLLER BEARING TO GEAR HOUSING (.002-3-5-10-20)
    SHIM ASSEMBLY, ROLLER BEARING TO GEAR HOUSING (.002-3-5-10-20)
  • 11
    31-68266A1 BEARING ASSEMBLY, Tapered Roller, DRIVE SHAFT
    BEARING ASSEMBLY, Tapered Roller, DRIVE SHAFT
  • 12
    31-66670A1 BEARING ASSEMBLY, Roller, DRIVE SHAFT
    BEARING ASSEMBLY, Roller, DRIVE SHAFT
  • 13
    25-54030 O-RING, (2.987 x .103), GEAR HOUSING TO DRIVE SHAFT HOUSING
    O-RING, (2.987 x .103), GEAR HOUSING TO DRIVE SHAFT HOUSING
  • 14
    97-31640Q4 TRIM TAB ASSEMBLY, GEAR HOUSING
    TRIM TAB ASSEMBLY, GEAR HOUSING
  • 15
    10-41350 SCREW, TRIM TAB TO GEAR HOUSING (2 1/2")
    SCREW, TRIM TAB TO GEAR HOUSING (2 1/2")
  • 16
    15-47397A1 SHIM SET, ROLLER BEARING TO GEAR HSG. (.002-3-5-10-20)
    LEFT HAND ROTATION
    SHIM SET, ROLLER BEARING TO GEAR HSG. (.002-3-5-10-20)
    LEFT HAND ROTATION
  • 17
    31-35928T1 BEARING ASSEMBLY, Tapered Roller, PROPELLER GEAR
    LEFT HAND ROTATION
    BEARING ASSEMBLY, Tapered Roller, PROPELLER GEAR
    LEFT HAND ROTATION
  • 18
    44-92327T1 PROPELLER SHAFT
    LEFT HAND ROTATION
    PROPELLER SHAFT
    LEFT HAND ROTATION
  • 19
    31-8M0103470 BEARING ASSEMBLY, Tapered Roller
    LEFT HAND ROTATION
    BEARING ASSEMBLY, Tapered Roller
    LEFT HAND ROTATION
  • 16
    15-47397A1 SHIM SET, ROLLER BEARING TO GEAR HSG. (.002-3-5-10)
    RIGHT HAND ROTATION
    SHIM SET, ROLLER BEARING TO GEAR HSG. (.002-3-5-10)
    RIGHT HAND ROTATION
  • 17
    31-68266A1 BEARING ASSEMBLY, Tapered Roller, PROPELLER GEAR
    RIGHT HAND ROTATION
    BEARING ASSEMBLY, Tapered Roller, PROPELLER GEAR
    RIGHT HAND ROTATION
  • 18
    44-92328 PROPELLER SHAFT
    RIGHT HAND ROTATION
    PROPELLER SHAFT
    RIGHT HAND ROTATION
  • 19
    31-35928T1 BEARING ASSEMBLY, Tapered Roller
    RIGHT HAND ROTATION
    BEARING ASSEMBLY, Tapered Roller
    RIGHT HAND ROTATION
  • 20
    43-66664 GEAR, DRIVE - MERCRUISER 255 TRS
    GEAR, DRIVE - MERCRUISER 255 TRS
  • 20
    43-70933 GEAR, DRIVE - MERCRUISER 280 TRS
    GEAR, DRIVE - MERCRUISER 280 TRS
  • 21
    12-66667 THRUST RING
    THRUST RING
  • 22
    67440T RING, LOAD - THRUST RING
    RING, LOAD - THRUST RING
  • 23
    25-31534 O-RING, BEARING CARRIER TO THRUST RING
    O-RING, BEARING CARRIER TO THRUST RING
  • 24
    66663A1 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 25
    31-30956T BEARING, Needle, ROLLER - BEARING CARRIER
    BEARING, Needle, ROLLER - BEARING CARRIER
  • 26
    26-76868 SEAL, BEARING CARRIER
    SEAL, BEARING CARRIER
  • 27
    28-30281 KEY, LOCATING - BEARING CARRIER
    KEY, LOCATING - BEARING CARRIER
  • 28
    14-79447 TAB WASHER, GEAR HOUSING COVER
    TAB WASHER, GEAR HOUSING COVER
  • 29
    8M2000347 COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 30
    56292Q04 THRUST HUB AND WASHER ASSEMBLY
    THRUST HUB AND WASHER ASSEMBLY
  • 31
    12-35965 WASHER, THRUST - THRUST HUB
    WASHER, THRUST - THRUST HUB
  • 32
    12-31211Q03 WASHER, THRUST HUB
    WASHER, THRUST HUB
  • 33
    14-816629Q TAB WASHER, PROPELLER NUT
    TAB WASHER, PROPELLER NUT
  • 34
    11-52707Q1 NUT, PROPELLER
    NUT, PROPELLER
  • 35
    25-54029 O-RING, (2.800 x .103), GEAR HOUSING TO DRIVE SHAFT HOUSING
    O-RING, (2.800 x .103), GEAR HOUSING TO DRIVE SHAFT HOUSING
  • 36
    10-47557 SCREW, (.500-13 x 1.500), GEAR HOUSING TO DRIVE SHAFT HOUSING (1 1/2")
    SCREW, (.500-13 x 1.500), GEAR HOUSING TO DRIVE SHAFT HOUSING (1 1/2")
  • 37
    11-34933 NUT, (.437-20) Stainless Steel, DRIVE SHAFT HOUSING TO GEAR HOUSING STUD
    NUT, (.437-20) Stainless Steel, DRIVE SHAFT HOUSING TO GEAR HOUSING STUD
