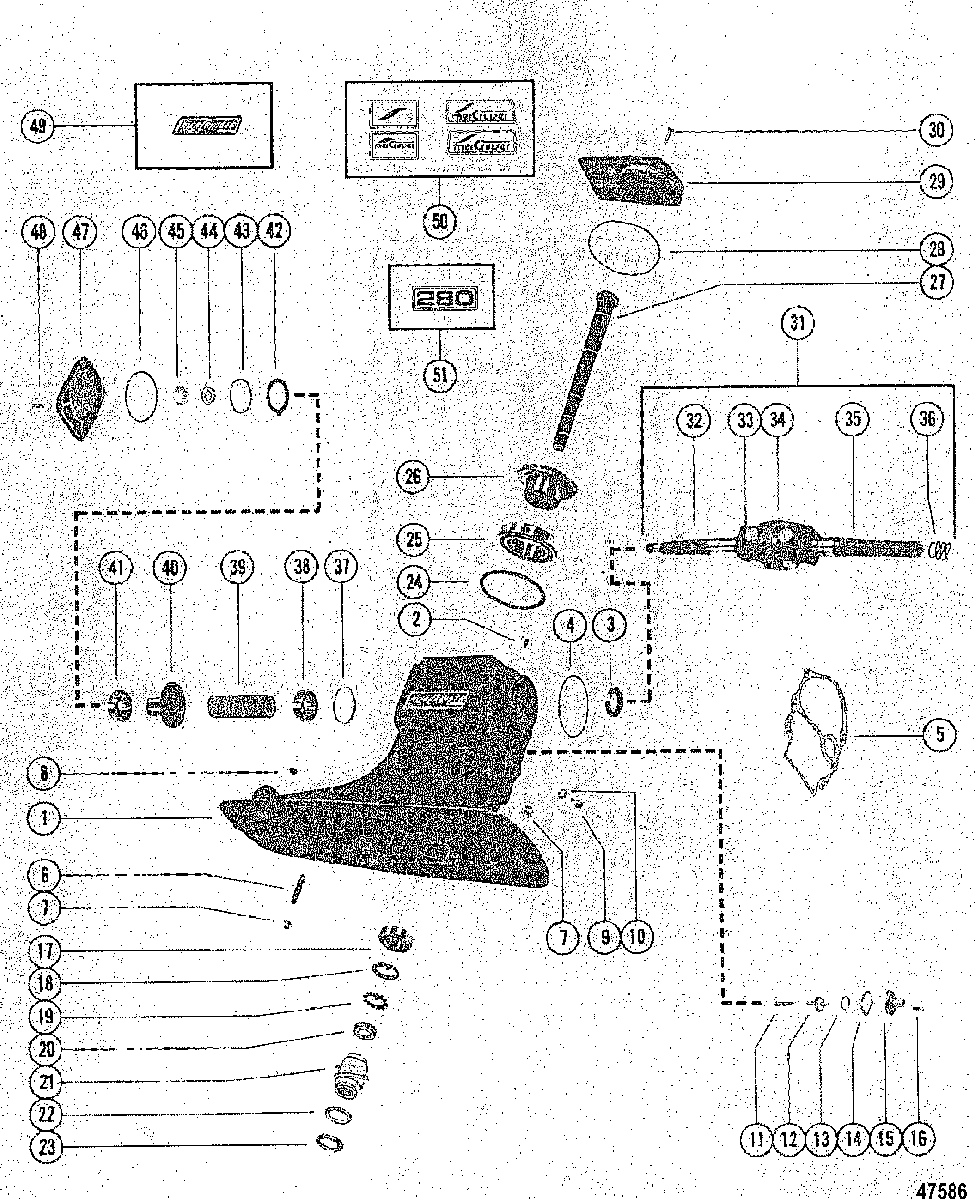

DRIVE SHAFT HOUSING ASSEMBLY для Mercruiser - 255-TRS 1973-1974 3377316 THRU 4203749

  • №
    Артикул
    Название
  • 1
    1571-4847A5 HOUSING ASSEMBLY, Driveshaft
    HOUSING ASSEMBLY, Driveshaft
  • 2
    10-21934 SCREW, (.375-16 x .500), SET - DRIVE SHAFT HOUSING
    SCREW, (.375-16 x .500), SET - DRIVE SHAFT HOUSING
  • 3
    26-62818 SEAL, DRIVE SHAFT HOUSING
    SEAL, DRIVE SHAFT HOUSING
  • 4
    25-62817 O-RING, DRIVE SHAFT HOUSING
    O-RING, DRIVE SHAFT HOUSING
  • 5
    27-54014Q1 GASKET, DRIVE SHAFT HOUSING TO BELL HOUSING
    GASKET, DRIVE SHAFT HOUSING TO BELL HOUSING
  • 6
    16-54674 STUD, (.437-14/.437-20 x 2.250), DRIVE SHAFT HOUSING TO GEAR HOUSING (2 1/4")
    STUD, (.437-14/.437-20 x 2.250), DRIVE SHAFT HOUSING TO GEAR HOUSING (2 1/4")
  • 7
    11-34933 NUT, (.437-20) Stainless Steel, DRIVE SHAFT HOUSING STUD
    NUT, (.437-20) Stainless Steel, DRIVE SHAFT HOUSING STUD
  • 8
    19-47579 PLUG, TRIM TAB HOLE - DRIVE SHAFT HOUSING
    PLUG, TRIM TAB HOLE - DRIVE SHAFT HOUSING
  • 9
    10-79953Q04 SCREW, (.375-16), VENT - DRIVE SHAFT HOUSING
    SCREW, (.375-16), VENT - DRIVE SHAFT HOUSING
  • 10
    12-191833 WASHER, SEALING - VENT SCREW
    WASHER, SEALING - VENT SCREW
  • 11
    24-48442 SPRING, TENSION - OIL RELEASE CHECK VALVE
    SPRING, TENSION - OIL RELEASE CHECK VALVE
  • 12
    20-48219 CHECK VALVE, OIL RELEASE
    CHECK VALVE, OIL RELEASE
  • 13
    25-48452 QUAD RING, OIL RELEASE CHECK VALVE
    QUAD RING, OIL RELEASE CHECK VALVE
  • 14
    27-66925 GASKET, CHECK VALVE GUIDE
    GASKET, CHECK VALVE GUIDE
  • 15
    54168 GUIDE, CHECK VALVE
    GUIDE, CHECK VALVE
  • 16
    10-22523 SCREW, (.190-32 x .75), CHECK VALVE GUIDE TO HOUSING (3/4")
    SCREW, (.190-32 x .75), CHECK VALVE GUIDE TO HOUSING (3/4")
  • 17
    31-38356A1 BEARING SET, DRIVE SHAFT
    BEARING SET, DRIVE SHAFT
  • 18
    12-62795 WASHER, DRIVE SHAFT
    WASHER, DRIVE SHAFT
  • 19
    13-62788 LOCKWASHER, DRIVE SHAFT
    LOCKWASHER, DRIVE SHAFT
  • 20
    11-41527T NUT, DRIVE SHAFT
    NUT, DRIVE SHAFT
  • 21
    62787A1 COUPLING ASSEMBLY, OIL SLINGER
    COUPLING ASSEMBLY, OIL SLINGER
  • 22
    15-36178A02 SHIM ASSEMBLY, ROLLER BEARING TO COUPLING (.002-3-5-10)
    SHIM ASSEMBLY, ROLLER BEARING TO COUPLING (.002-3-5-10)
  • 23
    12-62797 WASHER, ROLLER BEARING TO COUPLING
    WASHER, ROLLER BEARING TO COUPLING
  • 24
    15-846353A1 SHIM SET, TAPERED ROLLER BEARING (.002-3-5-10-250)
    SHIM SET, TAPERED ROLLER BEARING (.002-3-5-10-250)
  • 25
    31-62799A1 BEARING SET, DRIVE GEAR
    BEARING SET, DRIVE GEAR
  • 26
    43-62879T1 GEAR, DRIVEN - DRIVE SHAFT
    GEAR, DRIVEN - DRIVE SHAFT
  • 27
    45-62793T DRIVESHAFT
    DRIVESHAFT
  • 28
    25-67202 O-RING, TOP COVER
    O-RING, TOP COVER
  • 29
    62911T COVER, TOP
    COVER, TOP
  • 30
    10-35047 SCREW, (.375-16 x 1.250) Stainless Steel, COVER TO DRIVE SHAFT HOUSING (1 1/4")
    SCREW, (.375-16 x 1.250) Stainless Steel, COVER TO DRIVE SHAFT HOUSING (1 1/4")
  • 31
    62782A8 UNIVERSAL JOINT ASSEMBLY, PINION GEAR
    SN# 4345438 & Below
    UNIVERSAL JOINT ASSEMBLY, PINION GEAR
    SN# 4345438 & Below
  • 31
    62782A8 UNIVERSAL JOINT ASSEMBLY, PINION GEAR
    SN# 4345439 & Up
    UNIVERSAL JOINT ASSEMBLY, PINION GEAR
    SN# 4345439 & Up
  • 32
    62782A6 YOKE, UNIVERSAL JOINT (GEAR END)
    YOKE, UNIVERSAL JOINT (GEAR END)
  • 33
    75832T1 CROSS AND BEARING ASSEMBLY
    SN# 4345438 & Below
    CROSS AND BEARING ASSEMBLY
    SN# 4345438 & Below
  • 33
    75832T1 CROSS AND BEARING ASSEMBLY
    SN# 4345439 & Up
    CROSS AND BEARING ASSEMBLY
    SN# 4345439 & Up
  • 34
    393831 SOCKET, CENTER - UNIVERSAL JOINT
    SOCKET, CENTER - UNIVERSAL JOINT
  • 35
    62784A1 YOKE, UNIVERSAL JOINT (COUPLING END)
    YOKE, UNIVERSAL JOINT (COUPLING END)
  • 36
    24-62727 SPRING, UNIVERSAL JOINT (COUPLING END)
    SPRING, UNIVERSAL JOINT (COUPLING END)
  • 37
    15-62833A1 SHIM SET, ROLLER BEARING TO HOUSING (.002-3-5-10)
    SHIM SET, ROLLER BEARING TO HOUSING (.002-3-5-10)
  • 38
    31-38356A1 BEARING SET, UNIVERSAL JOINT
    BEARING SET, UNIVERSAL JOINT
  • 39
    23-62789 SPACER, TAPERED ROLLER BEARING
    SPACER, TAPERED ROLLER BEARING
  • 40
    43-62878 GEAR, DRIVE
    GEAR, DRIVE
  • 41
    31-8M0103475 BEARING ASSEMBLY, Tapered Roller, PINION GEAR
    BEARING ASSEMBLY, Tapered Roller, PINION GEAR
  • 42
    12-62786 WASHER, TAPERED ROLLER BEARING
    WASHER, TAPERED ROLLER BEARING
  • 43
    15-55499A1 SHIM ASSEMBLY, TAPERED ROLLER BEARING TO REAR COVER
    (.002-3-5-10-200
    SHIM ASSEMBLY, TAPERED ROLLER BEARING TO REAR COVER
    (.002-3-5-10-200
  • 44
    12-48912 WASHER, PINION GEAR TO UNIVERSAL JOINT
    WASHER, PINION GEAR TO UNIVERSAL JOINT
  • 45
    11-82671327 NUT, (1.00-14), PINION GEAR TO UNIVERSAL JOINT
    NUT, (1.00-14), PINION GEAR TO UNIVERSAL JOINT
  • 46
    25-39695 O-RING, REAR COVER
    O-RING, REAR COVER
  • 47
    62785T COVER, REAR
    COVER, REAR
  • 48
    10-35047 SCREW, (.375-16 x 1.250) Stainless Steel, REAR COVER TO DRIVE SHAFT HOUSING (1 1/4")
    SCREW, (.375-16 x 1.250) Stainless Steel, REAR COVER TO DRIVE SHAFT HOUSING (1 1/4")
  • 49
    37-14489A90 DECAL SET, DRIVE SHAFT HOUSING
    SN# 4644909 & Below
    DECAL SET, DRIVE SHAFT HOUSING
    SN# 4644909 & Below
  • 50
    37-14489A90 DECAL SET, DRIVE SHAFT HOUSING
    SN# 4644910 & Up
    DECAL SET, DRIVE SHAFT HOUSING
    SN# 4644910 & Up
  • 51
    37-76762 DECAL, "280"
    SN# 4644910 & Up
    DECAL, "280"
    SN# 4644910 & Up
