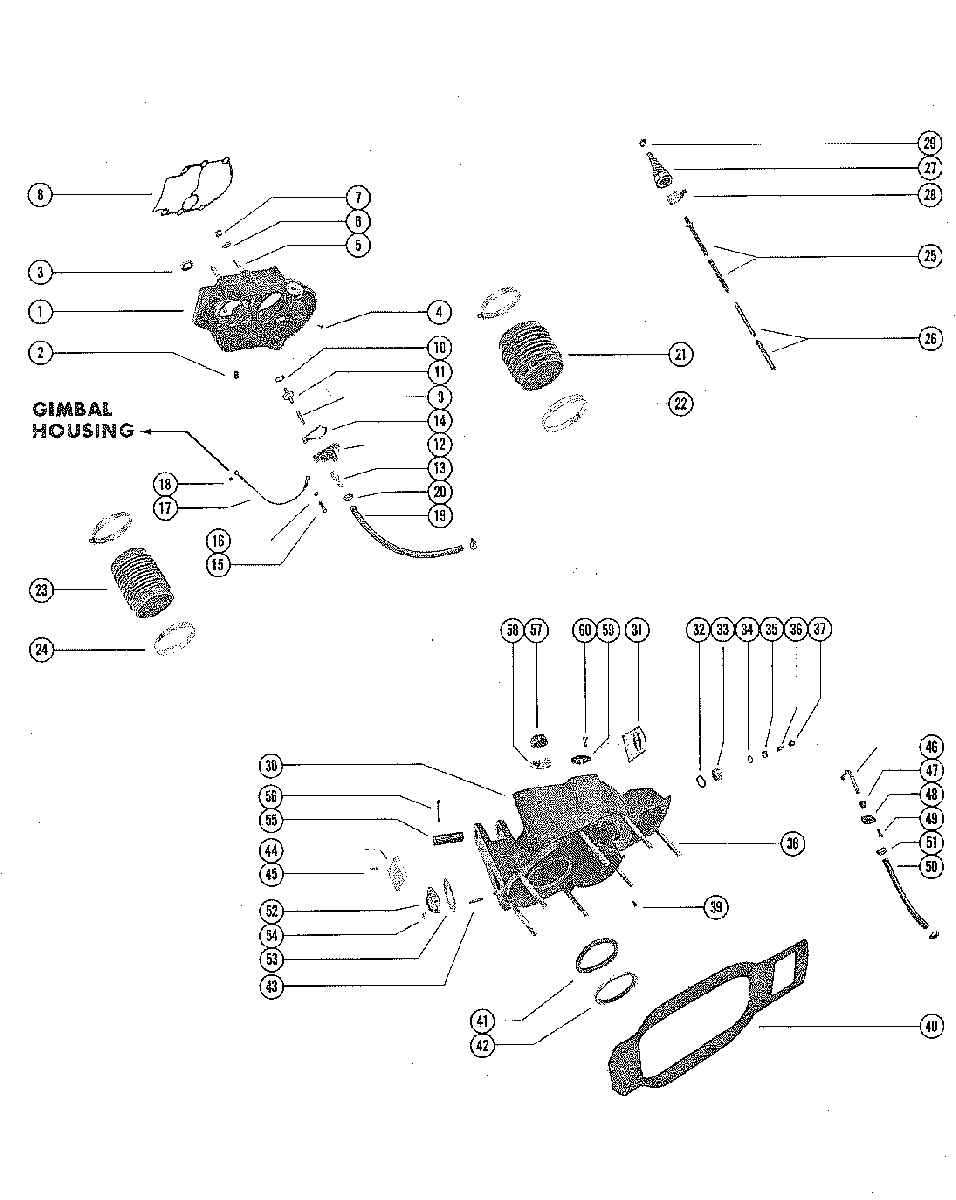

GIMBAL HOUSING AND BELL HOUSING для Mercruiser - 215H 1970 2782203 THRU 2909034

  • №
    Артикул
    Название
  • 1
    53934A3 BELL HOUSING ASSEMBLY
    HYDRAULIC SHIFT
    BELL HOUSING ASSEMBLY
    HYDRAULIC SHIFT
  • 2
    22-32803 PLUG, PIPE-BELL HOUSING
    HYDRAULIC SHIFT
    PLUG, PIPE-BELL HOUSING
    HYDRAULIC SHIFT
  • 3
    26-48443 OIL SEAL, BELL HOUSING
    HYDRAULIC SHIFT
    OIL SEAL, BELL HOUSING
    HYDRAULIC SHIFT
  • 4
    10-25612 SCREW, DRIVE-EXHAUST FLANGE (BELL HOUSING)
    HYDRAULIC SHIFT
    SCREW, DRIVE-EXHAUST FLANGE (BELL HOUSING)
    HYDRAULIC SHIFT
  • 5
    16-54011 STUD, BELL HOUSING TO DRIVE SHAFT HOUSING (3 1/4")
    HYDRAULIC SHIFT
    STUD, BELL HOUSING TO DRIVE SHAFT HOUSING (3 1/4")
    HYDRAULIC SHIFT
  • 1
    53934A2 BELL HOUSING ASSEMBLY
    ELECTRIC SHIFT
    BELL HOUSING ASSEMBLY
    ELECTRIC SHIFT
  • 3
    26-48443 OIL SEAL, BELL HOUSING
    ELECTRIC SHIFT
    OIL SEAL, BELL HOUSING
    ELECTRIC SHIFT
  • 4
    10-25612 SCREW, DRIVE-EXHAUST FLANGE (BELL HOUSING)
    ELECTRIC SHIFT
    SCREW, DRIVE-EXHAUST FLANGE (BELL HOUSING)
    ELECTRIC SHIFT
  • 5
    16-57988 STUD, BELL HOUSING TO DRIVE SHAFT HOUSING ( 5 1/4")
    ELECTRIC SHIFT
    STUD, BELL HOUSING TO DRIVE SHAFT HOUSING ( 5 1/4")
    ELECTRIC SHIFT
  • 6
    12-54012 WASHER, BELL HOUSING STUD
    WASHER, BELL HOUSING STUD
  • 7
    11-35000 NUT, BE LL HOUSING STUD
    NUT, BE LL HOUSING STUD
  • 8
    27-54014Q1 GASKET, BELL HOUSING TO DRIVE SHAFT HOUSING
    GASKET, BELL HOUSING TO DRIVE SHAFT HOUSING
  • 9
    24-48442 SPRING, TENSION-OIL RELEASE CHECK VALVE
    SPRING, TENSION-OIL RELEASE CHECK VALVE
  • 10
    25-48452 QUAD RING, OIL RELEASE CHECK VALVE
    QUAD RING, OIL RELEASE CHECK VALVE
  • 11
    20-48219 CHECK VALVE, OIL RELEASE
    CHECK VALVE, OIL RELEASE
  • 12
    54170A1 COVER ASSEMBLY, CHECK VALVE GUIDE
    COVER ASSEMBLY, CHECK VALVE GUIDE
  • 13
    22-34982 CONNECTOR, CHECK VALVE GUIDE COVER
    CONNECTOR, CHECK VALVE GUIDE COVER
  • 14
    27-540211 GASKET, CHECK VALVE GUIDE COVER
    GASKET, CHECK VALVE GUIDE COVER
  • 15
    10-36137 SCREW, CHECK VALVE COVER TO BELL HOUSING (1")
    SCREW, CHECK VALVE COVER TO BELL HOUSING (1")
  • 16
    13-26992 LOCKWASHER, CHECK VALVE GUIDE COVER SCREW
    LOCKWASHER, CHECK VALVE GUIDE COVER SCREW
  • 17
    57292 JUMPER CABLE, GIMBAL HOUSING TO CHECK VALVE GUIDE COVER
    JUMPER CABLE, GIMBAL HOUSING TO CHECK VALVE GUIDE COVER
  • 18
    10-47225 SCREW, JUMPER CABLE
    SCREW, JUMPER CABLE
  • 19
    32-34423 HOSE, OIL-BELL HOUSING TO GIMBAL HOUSING (12 5/8")
    HOSE, OIL-BELL HOUSING TO GIMBAL HOUSING (12 5/8")
  • 20
    54-815504104 CLAMP, OIL HOSE TO BELL HOUSING AND GIMBAL HOUSING
    CLAMP, OIL HOSE TO BELL HOUSING AND GIMBAL HOUSING
  • 21
    36223A2 BELLOWS ASSEMBLY, UNIVERSAL JOINT
    BELLOWS ASSEMBLY, UNIVERSAL JOINT
  • 22
    54-815504372 CLAMP,BELLOWS TO GIMBAL HOUSING AND BELL HOUSING
    CLAMP,BELLOWS TO GIMBAL HOUSING AND BELL HOUSING
  • 23
    54406A1 BELLOWS, EXHAUST
    BELLOWS, EXHAUST
  • 24
    54-815504360 CLAMP, EXHAUST BELLOWS ATTACHING
    CLAMP, EXHAUST BELLOWS ATTACHING
  • 25
    57842A2 SHAFT ASSEMBLY, CRANKSHIFT
    ELECTRIC SHIFT
    SHAFT ASSEMBLY, CRANKSHIFT
    ELECTRIC SHIFT
  • 26
    32-55496A2 TUBE ASSEMBLY, CRANKSHIFT SHAFT
    ELECTRIC SHIFT
    TUBE ASSEMBLY, CRANKSHIFT SHAFT
    ELECTRIC SHIFT
  • 27
    74639A2 BELLOWS, CRANKSHIFT SHAFT
    ELECTRIC SHIFT
    BELLOWS, CRANKSHIFT SHAFT
    ELECTRIC SHIFT
  • 28
    54-815504320 CLAMP, BELLOWS ATTACHING-LARGE END
    ELECTRIC SHIFT
    CLAMP, BELLOWS ATTACHING-LARGE END
    ELECTRIC SHIFT
  • 29
    54-8M0090424 CLAMP, BELOWS ATTACHING-SMALL END
    ELECTRIC SHIFT
    CLAMP, BELOWS ATTACHING-SMALL END
    ELECTRIC SHIFT
  • 30
    53979A1 GIMBAL HOUSING ASSEMBLY
    GIMBAL HOUSING ASSEMBLY
  • 31
    37-1368211 EMBLEM, GIMBAL HOUSING
    EMBLEM, GIMBAL HOUSING
  • 32
    26-31783 OIL SEAL, LOWER GIMBAL HOUSING ROLER BEARING
    OIL SEAL, LOWER GIMBAL HOUSING ROLER BEARING
  • 32
    26-31783 OIL SEAL, LOWER GIMBAL HOUSING ROLLER BEARING
    OIL SEAL, LOWER GIMBAL HOUSING ROLLER BEARING
  • 33
    31-54043 BEARING, ROLLER-GIMBAL HOUSING (LOWER)
    BEARING, ROLLER-GIMBAL HOUSING (LOWER)
  • 34
    26-54925 OIL SEAL, UPPER GIMBAL HOUSING ROLLER BEARING
    OIL SEAL, UPPER GIMBAL HOUSING ROLLER BEARING
  • 35
    31-21145 BEARING, ROLLER-GIMBAL HOUSING (UPPER)
    BEARING, ROLLER-GIMBAL HOUSING (UPPER)
  • 36
    22-69059 FITTING, GREASE-GIMBAL HOUSING
    FITTING, GREASE-GIMBAL HOUSING
  • 37
    19-77633Q LUBRICAP, GIMBAL HOUSING GREASE FITTING
    LUBRICAP, GIMBAL HOUSING GREASE FITTING
  • 38
    16-57988 STUD, GIMBAL HOUSING TO TRANSOM PLATE (5 3/8")
    STUD, GIMBAL HOUSING TO TRANSOM PLATE (5 3/8")
  • 39
    10-25612 SCREW, DRIVE-EXHAUST FLANGE (GIMBAL HOUSING)
    SCREW, DRIVE-EXHAUST FLANGE (GIMBAL HOUSING)
  • 40
    27-54395T GASKET, GIMBAL HOUSING TO TRANSOM
    GASKET, GIMBAL HOUSING TO TRANSOM
  • 41
    25-54521 "O" RING, GIMBAL HOUSING
    "O" RING, GIMBAL HOUSING
  • 42
    54068F1 PILOT RING, GIMBAL HOUSING
    PILOT RING, GIMBAL HOUSING
  • 43
    16-56766 STUD, GIMBAL HOUSING TO HYDRALIC CONNECTOR (1 2/8")
    STUD, GIMBAL HOUSING TO HYDRALIC CONNECTOR (1 2/8")
  • 44
    34762A1 PLATE ASSEMBLY, INHIBITOR-GIMBAL HOUSING
    PLATE ASSEMBLY, INHIBITOR-GIMBAL HOUSING
  • 45
    10-34763 SCREW, INHIBITOR PLATE TO GIMBAL HOUSING (3/4")
    SCREW, INHIBITOR PLATE TO GIMBAL HOUSING (3/4")
  • 46
    32-54392 TUBE, OIL-GIMBAL HOUSING
    TUBE, OIL-GIMBAL HOUSING
  • 49
    10-28636 SCREW, COVER TO GIMBAL HOUSING (3/4")
    SCREW, COVER TO GIMBAL HOUSING (3/4")
  • 50
    32-34423 HOSE, OIL-GIMBAL HOUSING TO TRANSOM PLATE (7 3/4")
    HOSE, OIL-GIMBAL HOUSING TO TRANSOM PLATE (7 3/4")
  • 51
    54-815504104 CLAMP, OIL HOSE TO GIMBAL HOUSING AND TRANSOM PLATE
    CLAMP, OIL HOSE TO GIMBAL HOUSING AND TRANSOM PLATE
  • 52
    47347 CONNECTOR, HYDRAULIC-GIMBAL HOUSING
    CONNECTOR, HYDRAULIC-GIMBAL HOUSING
  • 53
    27-476441 GASKET, HYDRAULIC CONNECTOR
    GASKET, HYDRAULIC CONNECTOR
  • 54
    11-35888 NUT, HYDRAULIC CONNECTOR STUD
    NUT, HYDRAULIC CONNECTOR STUD
  • 55
    17-54052T1 PIN, SWIVEL-GIMBAL HOUSING TO GIMBAL RING (LOWER)
    PIN, SWIVEL-GIMBAL HOUSING TO GIMBAL RING (LOWER)
  • 56
    18-54929 COTTER PIN,RETAINING-LOWER SWIVEL PIN
    COTTER PIN,RETAINING-LOWER SWIVEL PIN
  • 57
    57637 CAP, SEALING-GIMBAL HOUSING
    HYDRAULIC SHIFT
    CAP, SEALING-GIMBAL HOUSING
    HYDRAULIC SHIFT
  • 58
    54-815504320 CLAMP, SEALING CAP TO GIMBAL HOUSING
    HYDRAULIC SHIFT
    CLAMP, SEALING CAP TO GIMBAL HOUSING
    HYDRAULIC SHIFT
  • 59
    57322T COVER, RETAINING-GIMBAL HOUSING
    COVER, RETAINING-GIMBAL HOUSING
  • 60
    10-28636 SCREW, RETAINING COVER TO GIMBAL HOUSING (3/4")
    SCREW, RETAINING COVER TO GIMBAL HOUSING (3/4")
