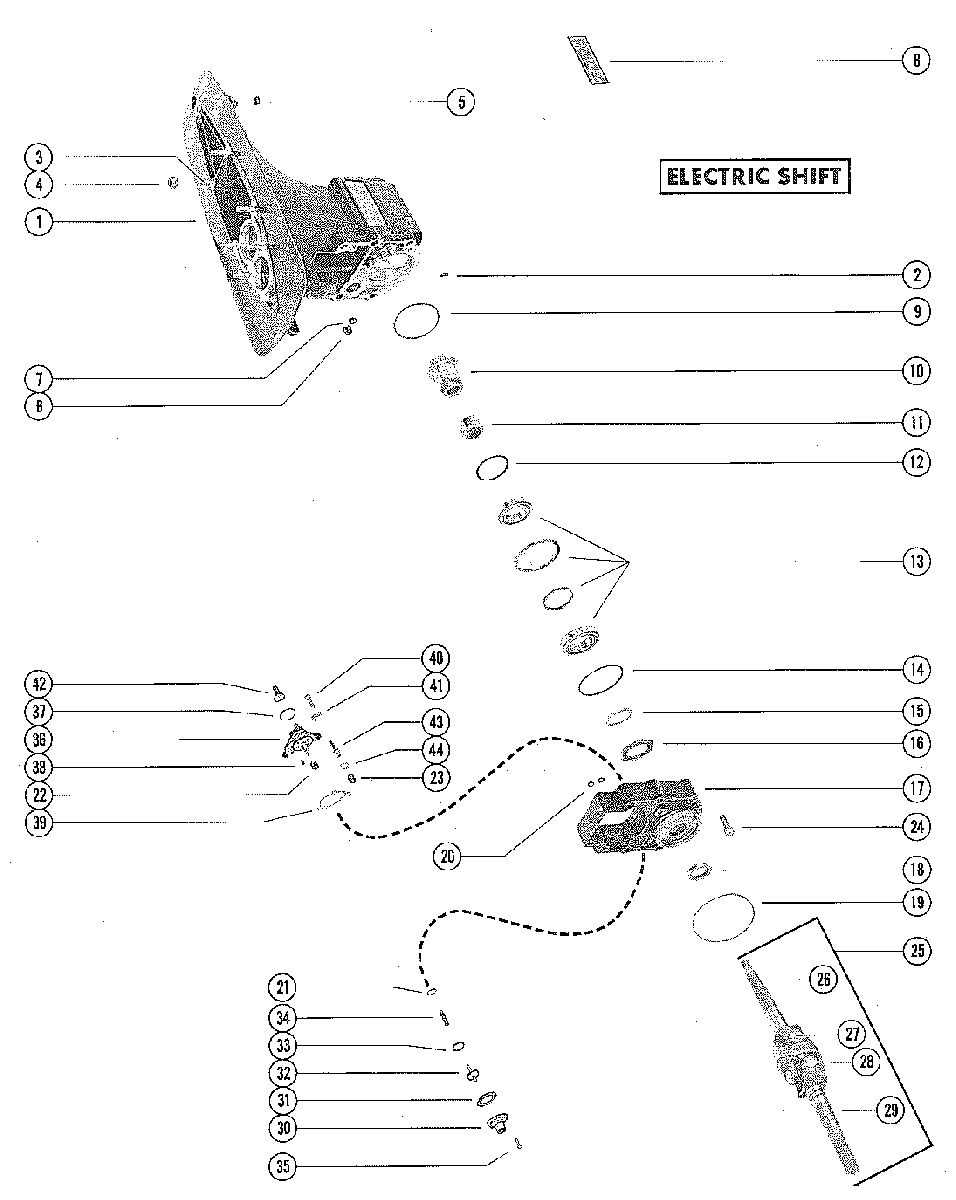

DRIVE SHAFT HOUSING AND GEAR ASSEMBLY ELECTRIC SHIFT(PAGE 1) для Mercruiser - 215H 1970 2782203 THRU 2909034

  • №
    Артикул
    Название
  • 1
    1571-4113A1 DRIVE SHAFT HOUSING ASSEMBLY
    DRIVE SHAFT HOUSING ASSEMBLY
  • 2
    10-21934 SCREW, SET - DRIVE SHAFT HOUSING
    SCREW, SET - DRIVE SHAFT HOUSING
  • 3
    16-54674 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (2 1/4")
    STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (2 1/4")
  • 4
    11-34933 NUT, DRIVE SHAFT HOUSING STUD
    NUT, DRIVE SHAFT HOUSING STUD
  • 5
    19-47579 PLUG, TRIM TAB HOLE - DRIVE SHAFT HOUSING
    PLUG, TRIM TAB HOLE - DRIVE SHAFT HOUSING
  • 6
    10-79953Q04 SCREW, VENT - DRIVE SHAFT HOUSING
    SCREW, VENT - DRIVE SHAFT HOUSING
  • 7
    12-191833 WASHER, SEALING - VENT SCREW
    WASHER, SEALING - VENT SCREW
  • 8
    37-56081A1 DECAL SET, DRIVE SHAFT HOUSING
    DECAL SET, DRIVE SHAFT HOUSING
  • 9
    15-57423A1 SHIM ASSEMBLY, FRONT PINION GEAR (.002-3-5-10)
    SHIM ASSEMBLY, FRONT PINION GEAR (.002-3-5-10)
  • 10
    43-57501A1 GEAR ASSEMBLY, PINION -UNIVERSAL JOINT (FRONT)
    GEAR ASSEMBLY, PINION -UNIVERSAL JOINT (FRONT)
  • 11
    31-57410 ROLLER BEARING, FRONT PINION GEAR
    ROLLER BEARING, FRONT PINION GEAR
  • 12
    25-57413 "O" RING, DRIVE SHAFT HOUSING
    "O" RING, DRIVE SHAFT HOUSING
  • 13
    31-57411A2 TAPERED ROLLER BEARING ASSEMBLY, FRONT PINION GEAR
    TAPERED ROLLER BEARING ASSEMBLY, FRONT PINION GEAR
  • 14
    15-57423A1 SHIM ASSEMBLY, FRONT COVER (.002-3-5-10)
    SHIM ASSEMBLY, FRONT COVER (.002-3-5-10)
  • 15
    12-57502 WASHER, SPLINED - FRONT PINION GEAR
    WASHER, SPLINED - FRONT PINION GEAR
  • 16
    11-57503 NUT, FRONT PINION GEAR
    NUT, FRONT PINION GEAR
  • 17
    57497A1 COVER ASSEMBLY, FRONT
    COVER ASSEMBLY, FRONT
  • 18
    26-56768 OIL SEAL, FRONT COVER
    OIL SEAL, FRONT COVER
  • 19
    25-32068 "O" RING, FRONT COVER (4 1/8" I.D.)
    "O" RING, FRONT COVER (4 1/8" I.D.)
  • 20
    25-45711 "O" RING, FRONT COVER (5/8" I.D.)
    "O" RING, FRONT COVER (5/8" I.D.)
  • 21
    25-57414 "O" RING, FRONT COVER (1 1/2" I.D.)
    "O" RING, FRONT COVER (1 1/2" I.D.)
  • 22
    23-55237 BUSHING, CRANKSHIFT GEAR - FRONT COVER
    BUSHING, CRANKSHIFT GEAR - FRONT COVER
  • 23
    23-55238 BUSHING, CRANKSHIFT PINION - FRONT COVER
    BUSHING, CRANKSHIFT PINION - FRONT COVER
  • 24
    10-30206 SCREW, FRONT COVER TO DRIVE SHAFT HOUSING (1")
    SCREW, FRONT COVER TO DRIVE SHAFT HOUSING (1")
  • 25
    57498A1 UNVERSAL JOINT ASSEMBLY, PINION GEARS
    UNVERSAL JOINT ASSEMBLY, PINION GEARS
  • 26
    57498 YOKE, UNERSAL JOINT (REAR PINION END)
    YOKE, UNERSAL JOINT (REAR PINION END)
  • 27
    75832T1 CROSS AND BEARING ASSEMBLY, UNVERSAL JOINT
    CROSS AND BEARING ASSEMBLY, UNVERSAL JOINT
  • 28
    393831 SOCKET, CENTER - UNIVERSAL JOINT
    SOCKET, CENTER - UNIVERSAL JOINT
  • 29
    54086 YOKE, UNIVERSAL JOINT (COUPLING END)
    YOKE, UNIVERSAL JOINT (COUPLING END)
  • 30
    54168 GUIDE, CHECK VALVE
    GUIDE, CHECK VALVE
  • 31
    27-66925 GASKET, CHECK VALVE GUIDE
    GASKET, CHECK VALVE GUIDE
  • 32
    20-48219 CHECK VALVE - OIL RELEASE
    CHECK VALVE - OIL RELEASE
  • 33
    25-48452 QUAD RING, OIL RELEASE CHECK VALVE
    QUAD RING, OIL RELEASE CHECK VALVE
  • 34
    24-48442 SPRING, TENSION - OIL RELEASE CHECK VALVE
    SPRING, TENSION - OIL RELEASE CHECK VALVE
  • 35
    10-22523 SCREW, CHECK VALVE GUIDE TO FRONT COVER
    SCREW, CHECK VALVE GUIDE TO FRONT COVER
  • 36
    57505A1 COVER ASSEMBLY, CRANKSHIFT
    COVER ASSEMBLY, CRANKSHIFT
  • 37
    25-864701 "O" RING, CRANKSHIFT COVER
    "O" RING, CRANKSHIFT COVER
  • 38
    10-57400 SCREW, SET - CRANKSHIFT GEAR
    SCREW, SET - CRANKSHIFT GEAR
  • 39
    27-57506 GASKET, CRANKSHIFT COVER
    GASKET, CRANKSHIFT COVER
  • 40
    10-69028 SCREW, CRANKSHIFT COVER TO FRONT COVER (3/4")
    SCREW, CRANKSHIFT COVER TO FRONT COVER (3/4")
  • 41
    13-21272 LOCKWASHER, CRANKSHIFT COVER SCREW
    LOCKWASHER, CRANKSHIFT COVER SCREW
  • 42
    12-56635A1 WASHER ASSEMBLY, CRANKSHIFT
    WASHER ASSEMBLY, CRANKSHIFT
  • 43
    57500 PINION, CRANKSHIFT
    PINION, CRANKSHIFT
  • 44
    15-48920A1 SHIM, CRANKSHIFT PINION (.025)
    SHIM, CRANKSHIFT PINION (.025)
