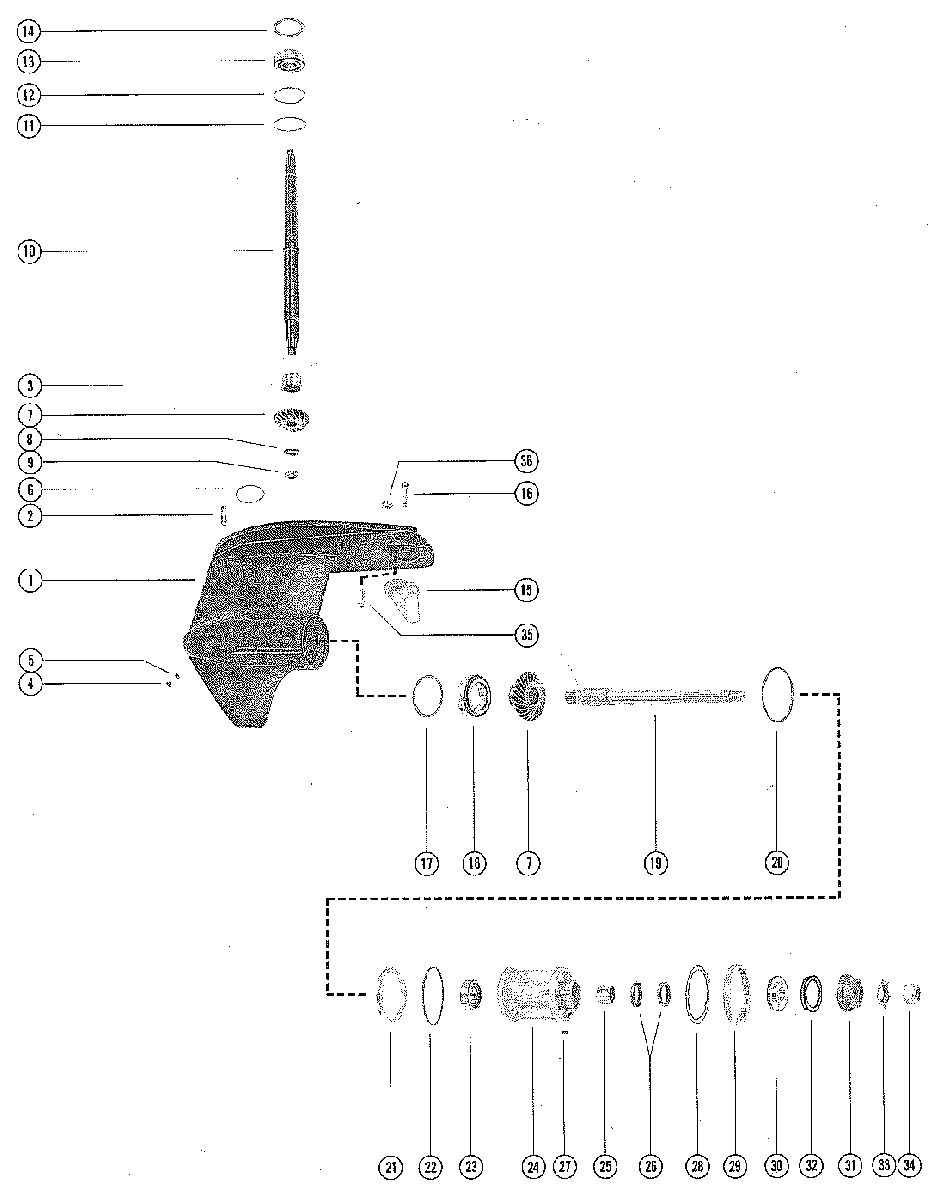

GEAR HOUSING ASSEMBLY, COMPLETE для Mercruiser - 215H 1970 2782203 THRU 2909034

  • №
    Артикул
    Название
  • -
    1641-3767A3 GEAR HOUSING ASSEMBLY, COMPLETE (HYDRAULIC SHIFT)
    GEAR HOUSING ASSEMBLY, COMPLETE (HYDRAULIC SHIFT)
  • -
    1641-4187A4 GEAR HOUSING ASSEMBLY, COMPLETE (ELECTRIC SHIFT)
    GEAR HOUSING ASSEMBLY, COMPLETE (ELECTRIC SHIFT)
  • 1
    1641-3767A1 GEAR HOUSING ASSEMBLY (HYDRAULIC SHIFT)
    GEAR HOUSING ASSEMBLY (HYDRAULIC SHIFT)
  • 1
    1641-4187A1 GEAR HOUSING ASSEMBLY(ELECTRIC SHIFT)
    GEAR HOUSING ASSEMBLY(ELECTRIC SHIFT)
  • 2
    16-8M0041668 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (1 7/8")
    STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (1 7/8")
  • 3
    31-68290A1 ROLLER BEARING, DRIVE SHAFT
    ROLLER BEARING, DRIVE SHAFT
  • 4
    10-79953Q04 SCREW, VENT - GEAR HOUSING
    SCREW, VENT - GEAR HOUSING
  • 5
    12-191833 WASHER, SEAL - VENT SCREW
    WASHER, SEAL - VENT SCREW
  • 6
    25-54029 "O" RING, GEAR HOUSING (3" O.D.)
    "O" RING, GEAR HOUSING (3" O.D.)
  • 7
    43-54402A2 GEAR ASSEMBLY (DRIVE AND PINION)
    GEAR ASSEMBLY (DRIVE AND PINION)
  • 8
    12-54048 WASHER, PINION GEAR TO DRIVE SHAFT
    WASHER, PINION GEAR TO DRIVE SHAFT
  • 9
    11-55819 NUT, PINION GEAR TO DRIVE SHAFT
    NUT, PINION GEAR TO DRIVE SHAFT
  • 10
    45-54396 DRIVE SHAFT
    DRIVE SHAFT
  • 11
    25-54030 "O" RING, GEAR HOUSING (3 3/16" O.D.)
    "O" RING, GEAR HOUSING (3 3/16" O.D.)
  • 12
    15-39808A1 SHIM ASSEMBLY, ROLLER BEARING TO GEAR HOUSING (.002-3-5-10)
    SHIM ASSEMBLY, ROLLER BEARING TO GEAR HOUSING (.002-3-5-10)
  • 13
    31-820456A1 TAPERED ROLLER BEARING ASSEMBLY, DRIVE SHAFT
    TAPERED ROLLER BEARING ASSEMBLY, DRIVE SHAFT
  • 14
    15-36178A02 SHIM ASSEMBLY, ROLLER BEARING TO DRIVE SHAFT HOUSING (.002-)
    SHIM ASSEMBLY, ROLLER BEARING TO DRIVE SHAFT HOUSING (.002-)
  • 15
    34127T2 TRIM TAB ASSEMBLY, GEAR HOUSING (HYDRAULIC SHIFT)
    TRIM TAB ASSEMBLY, GEAR HOUSING (HYDRAULIC SHIFT)
  • 15
    97-31640Q4 TRIM TAB ASSEMBLY, GEAR HOUSING (ELECTRIC SHIFT)
    TRIM TAB ASSEMBLY, GEAR HOUSING (ELECTRIC SHIFT)
  • 16
    10-41350 SCREW, TRIM TAB TO GEAR HOUSING (2 1/2")
    SCREW, TRIM TAB TO GEAR HOUSING (2 1/2")
  • 17
    15-55499A1 SHIM ASSEMBLY, ROLLER BEARING TO GEAR HOUSING(.002-3-5-10)
    SHIM ASSEMBLY, ROLLER BEARING TO GEAR HOUSING(.002-3-5-10)
  • 18
    31-8M0103475 TAPERED ROLLER BEARING ASSEMBLY, PROPELLER GEAR
    TAPERED ROLLER BEARING ASSEMBLY, PROPELLER GEAR
  • 19
    44-54255 PROPELLER SHAFT
    PROPELLER SHAFT
  • 20
    15-54005A1 SHIM ASSEMBLY, THRUST RING TO GEAR HOUSING (.002-3-5-10)
    SHIM ASSEMBLY, THRUST RING TO GEAR HOUSING (.002-3-5-10)
  • 21
    54166 RING, THRUST - BEARING CARRIER
    RING, THRUST - BEARING CARRIER
  • 22
    25-34821 "O" RING, BEARING CARRIER
    "O" RING, BEARING CARRIER
  • 23
    31-8M0103474 TAPERED ROLLER BEARING ASSEMBLY
    TAPERED ROLLER BEARING ASSEMBLY
  • 24
    53936A1 BEARING CARRIER ASSEMBLY
    BEARING CARRIER ASSEMBLY
  • 25
    31-54042T ROLLER BEARING, BEARING CARRIER
    ROLLER BEARING, BEARING CARRIER
  • 26
    26-821092 OIL SEAL, BEARING CARRIER
    OIL SEAL, BEARING CARRIER
  • 27
    28-30281 KEY, LOCATING - BEARING CARRIER
    KEY, LOCATING - BEARING CARRIER
  • 28
    14-54167 TAB WASHER, GEAR HOUSING COVER
    TAB WASHER, GEAR HOUSING COVER
  • 29
    54163 COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 30
    55074T HUB, THRUST - PROPELLER SHAFT
    HUB, THRUST - PROPELLER SHAFT
  • 31
    12-55073A2 WASHER ASSEMBLY, SPLINED
    WASHER ASSEMBLY, SPLINED
  • 32
    12-55072 WASHER, CUPPED - SPLINED WASHER
    WASHER, CUPPED - SPLINED WASHER
  • 33
    14-34817 TAB WASHER, PROPELLER NUT
    TAB WASHER, PROPELLER NUT
  • 34
    11-82671127 NUT, PROPELLER
    NUT, PROPELLER
  • 35
    10-47557 SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1 1/2")
    SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1 1/2")
  • 36
    11-34933 NUT, GEAR HOUSING SCREW
    NUT, GEAR HOUSING SCREW
