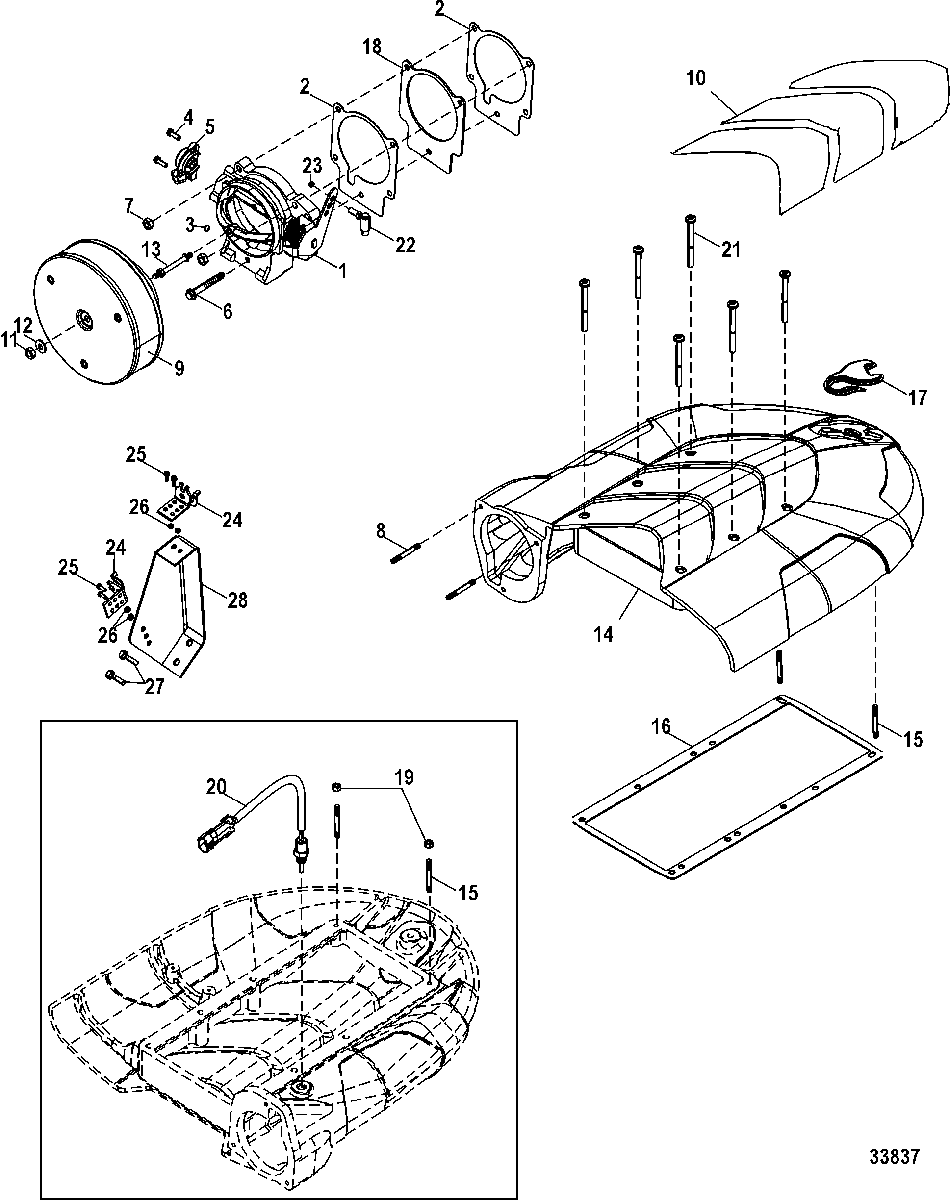

Throttle Body And Air Plenum для Mercruiser - SCORPION 377 0W698433 & Up
-
№АртикулНазвание
-
1861484A02 THROTTLE BODY ASSEMBLYTHROTTLE BODY ASSEMBLY
-
227-861449 GASKET, Throttle BodyGASKET, Throttle Body
-
3862999002 PLUG, Intake Air Control PortPLUG, Intake Air Control Port
-
410-803150 SCREWSCREW
-
5803148 SENSORSENSOR
-
610-861581 SCREW, (.250-20 x 2.250)SCREW, (.250-20 x 2.250)
-
711-8267089 NUT, (.250-28)NUT, (.250-28)
-
816-728091 STUD, (.250-20/.250-28 x 1.620)STUD, (.250-20/.250-28 x 1.620)
-
9861444 FLAME ARRESTORFLAME ARRESTOR
-
1037-879288A45 DECAL SET, Scorpion 350DECAL SET, Scorpion 350
-
1037-879288A46 DECAL SET, Scorpion 377
SN# 1A092502 & BelowDECAL SET, Scorpion 377
SN# 1A092502 & Below -
1037-8M0053164 DECAL SET, Scorpion 377
SN# 1A092503 & UpDECAL SET, Scorpion 377
SN# 1A092503 & Up -
1111-8267139 NUT, (.250-28)NUT, (.250-28)
-
1212-86400 WASHERWASHER
-
1316-865460 STUDSTUD
-
14861334A12 PLENUM ASSEMBLY, Grey, Air IntakePLENUM ASSEMBLY, Grey, Air Intake
-
1516-728091 STUD, (.250-20/.250-28 x 1.620)STUD, (.250-20/.250-28 x 1.620)
-
1627-807670 GASKET, Air PlenumGASKET, Air Plenum
-
17862960 EMBLEM, Scorpion (Chrome)EMBLEM, Scorpion (Chrome)
-
18861450 ADAPTOR PLATE, Throttle BodyADAPTOR PLATE, Throttle Body
-
1911-807082 NUT, (.250-28)NUT, (.250-28)
-
20885342002 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
2110-806953 SCREW, (.250-20 x 2.750)SCREW, (.250-20 x 2.750)
-
22807484 BALL JOINT ASSEMBLY, Quick ReleaseBALL JOINT ASSEMBLY, Quick Release
-
2311-8267089 NUT, (.250-28)NUT, (.250-28)
-
24807485 BRACKETBRACKET
-
2510-89766 SCREW, (#10-32 x .620) Stainless SteelSCREW, (#10-32 x .620) Stainless Steel
-
2611-826709106 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
2710-657461 SCREW AND LOCKWASHER, (.250-20 x .625)SCREW AND LOCKWASHER, (.250-20 x .625)
-
28861073T02 BRACKET, Throttle AnchorBRACKET, Throttle Anchor
