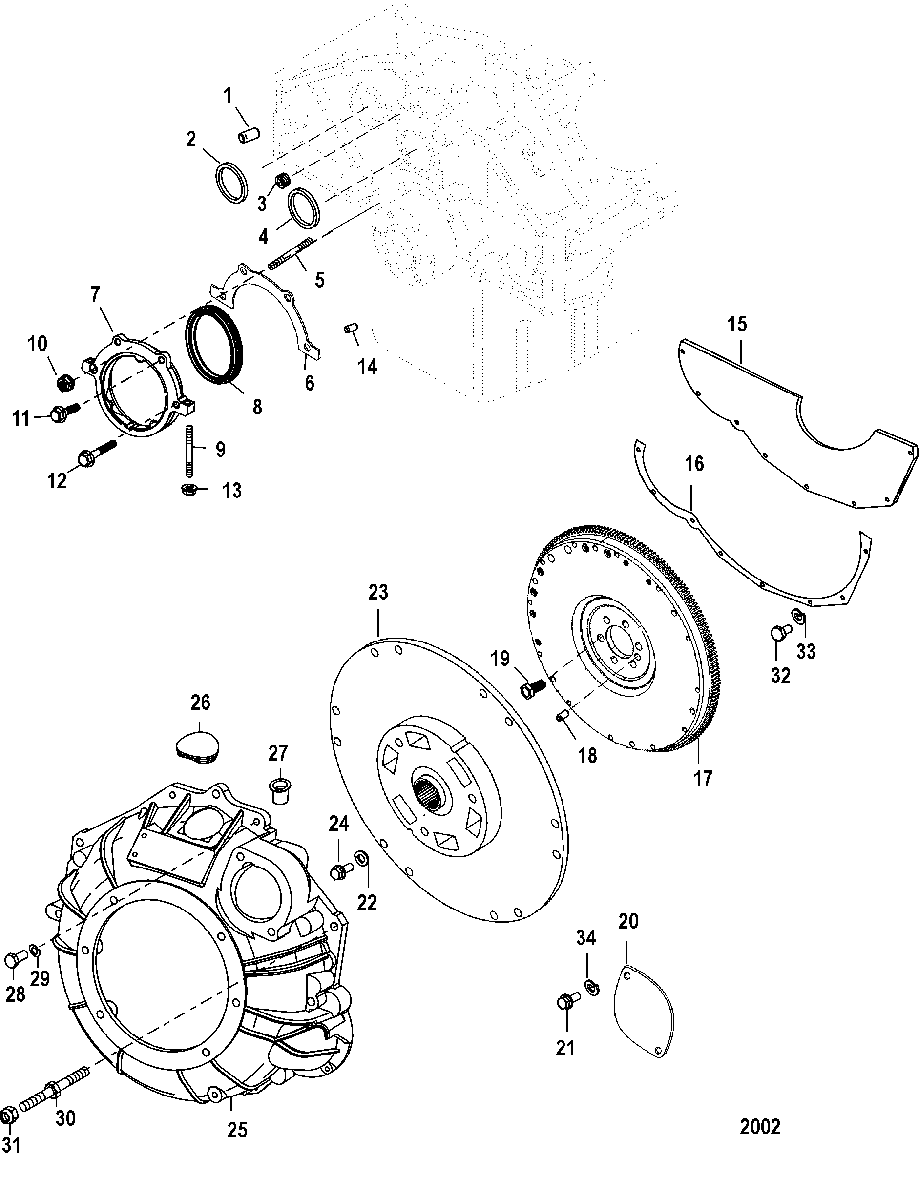

Cylinder Block - Flywheel Housing для Mercruiser - SCORPION 377 0W698433 & Up
-
№АртикулНазвание
-
117-8M0092110 PIN, Dowel (.6206/.6211 x 1.20), Flywheel Housing LocationPIN, Dowel (.6206/.6211 x 1.20), Flywheel Housing Location
-
219-34270 EXPANSION PLUG, (1.625), Engine Core HoleEXPANSION PLUG, (1.625), Engine Core Hole
-
322-32561 PLUG, (.250-18 x .41), Oil GalleyPLUG, (.250-18 x .41), Oil Galley
-
422-72640 PLUG, Camshaft Bearing HolePLUG, Camshaft Bearing Hole
-
516-14827 STUD, (.250-20 x 2.180)STUD, (.250-20 x 2.180)
-
627-881715 GASKET, Crankshaft Oil Seal HousingGASKET, Crankshaft Oil Seal Housing
-
7852940 HOUSING ASSEMBLY, With StudsHOUSING ASSEMBLY, With Studs
-
826-852941 SEAL, Crankshaft OilSEAL, Crankshaft Oil
-
916-11989 STUD, (.312-18 x 1.6718)STUD, (.312-18 x 1.6718)
-
1011-8M0098315 NUTNUT
-
1110-14242 BOLT, (.250-20 x .875)BOLT, (.250-20 x .875)
-
1210-8M0064241 BOLT, (.250-20 x 1.750)BOLT, (.250-20 x 1.750)
-
1311-11971 NUT, (.312-18)NUT, (.312-18)
-
1417-14263 PIN, Dowel, Oil Seal Housing LocatingPIN, Dowel, Oil Seal Housing Locating
-
15818718A3 COVER KITCOVER KIT
-
1627-86015 GASKETGASKET
-
17222-8M0047213 FLYWHEELFLYWHEEL
-
1817-43504 PIN, Dowel, FlywheelPIN, Dowel, Flywheel
-
1910-845757 SCREW, (.437-20 x 1.00)SCREW, (.437-20 x 1.00)
-
20939201 PLATE, CoverPLATE, Cover
-
2110-863480 SCREW, (.375-16 x 1.125)SCREW, (.375-16 x 1.125)
-
2213-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
23860125T DRIVEPLATE ASSEMBLYDRIVEPLATE ASSEMBLY
-
2410-863480 SCREW, (.375-16 x 1.125)SCREW, (.375-16 x 1.125)
-
25814309A1 HOUSING ASSEMBLYHOUSING ASSEMBLY
-
2619-12304 PLUG, Timing WindowPLUG, Timing Window
-
2719-38606 CAPLUG, (#10)CAPLUG, (#10)
-
2810-47277 SCREW, (.312-24 x .750)SCREW, (.312-24 x .750)
-
2810-34353 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
2810-37612 SCREW, (.375-16 x 1.250)SCREW, (.375-16 x 1.250)
-
2810-47688 SCREW, (.375-16 x 2.750)SCREW, (.375-16 x 2.750)
-
2913-400247 LOCKWASHER, (M8)LOCKWASHER, (M8)
-
3016-8M2004610 STUD, (.375-16 x 2.130)STUD, (.375-16 x 2.130)
-
3111-32219 NUT, (.375-16)NUT, (.375-16)
-
3210-98253 SCREW, (.250-20 x .500)SCREW, (.250-20 x .500)
-
3313-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
3413-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
