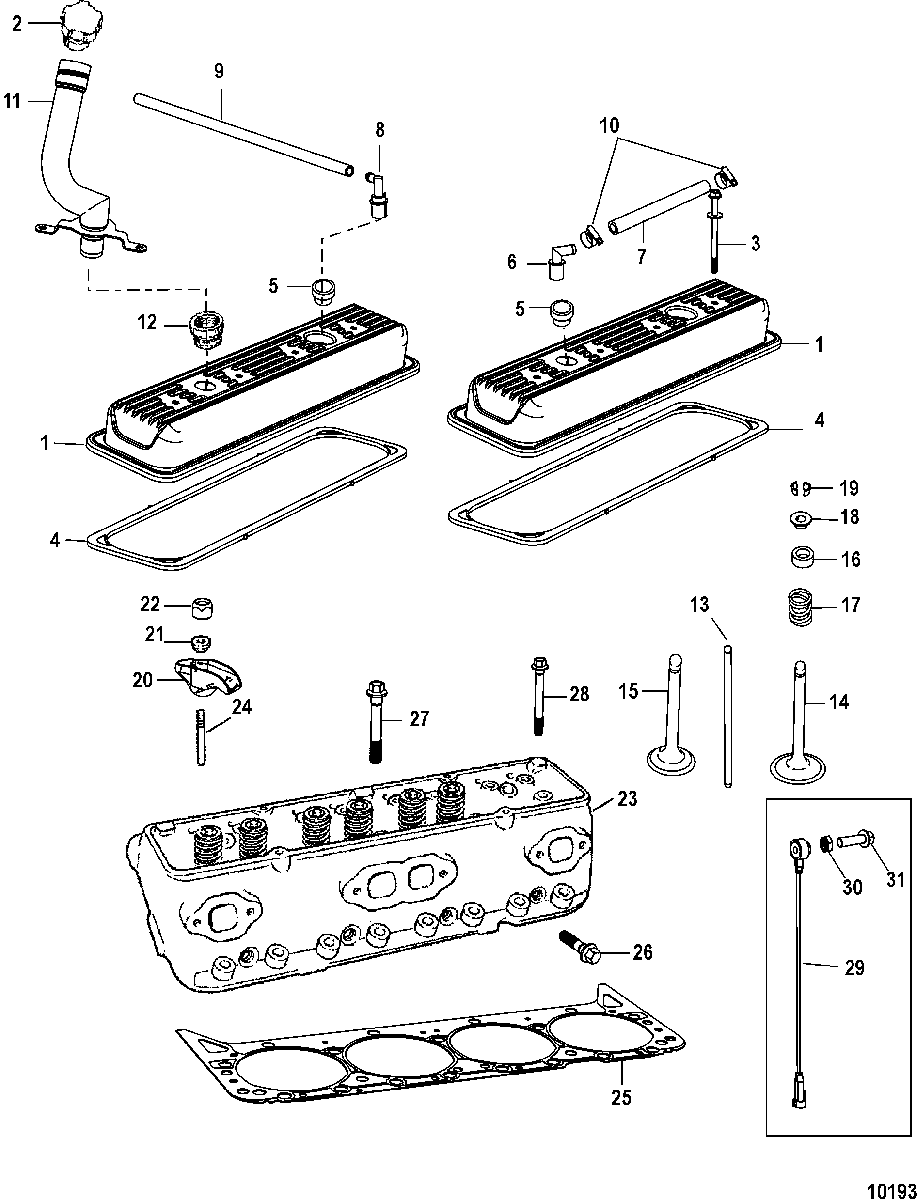

Cylinder Head And Rocker Cover для Mercruiser - SCORPION 377 0W698433 & Up

  • №
    Артикул
    Название
  • 1
    809995 COVER, Rocker
    With Oil Fill Hole
    COVER, Rocker
    With Oil Fill Hole
  • 1
    8M0086350 COVER, Rocker
    Without Oil Fill Hole
    COVER, Rocker
    Without Oil Fill Hole
  • 2
    36-18710002 CAP, Oil Fill
    CAP, Oil Fill
  • 3
    10-8M0084557 SCREW
    SCREW
  • 4
    27-17467 GASKET, Rocker Cover
    GASKET, Rocker Cover
  • 5
    23-8M0071559 GROMMET
    GROMMET
  • 6
    97850T ELBOW, 90 Degree, Breather
    ELBOW, 90 Degree, Breather
  • 7
    32-866802 HOSE, Molded
    HOSE, Molded
  • 8
    21-8M2017060 VALVE, PCV
    VALVE, PCV
  • 9
    32-8M0062321 HOSE, (33.00 Inches Bulk), PVC Breather
    HOSE, (33.00 Inches Bulk), PVC Breather
  • 10
    54-815504105 CLAMP, Worm Gear (11-18 mm), Hose
    CLAMP, Worm Gear (11-18 mm), Hose
  • 11
    807688T TUBE, Oil Fill
    Inline
    TUBE, Oil Fill
    Inline
  • 11
    879194T09 TUBE, Oil Fill
    V-Drive
    TUBE, Oil Fill
    V-Drive
  • 12
    26-805622 GROMMET, Oil Fill Tube
    GROMMET, Oil Fill Tube
  • 13
    173391 PUSH ROD
    PUSH ROD
  • 14
    8243171 VALVE
    350
    VALVE
    350
  • 14
    8M2010902 VALVE
    377
    VALVE
    377
  • 14
    8243181 VALVE
    VALVE
  • 15
    809992 VALVE
    VALVE
  • 16
    26-8M0050563 SEAL, Intake
    SEAL, Intake
  • 16
    26-804507 SEAL, Exhaust
    SEAL, Exhaust
  • 17
    24-483471 SPRING
    SPRING
  • 18
    483481 CAP
    CAP
  • 19
    28-547971 KEY
    KEY
  • 20
    35329 ARM KIT, Rocker
    ARM KIT, Rocker
  • 21
    35331 BALL, Rocker Arm
    BALL, Rocker Arm
  • 22
    11-34516 NUT
    NUT
  • 23
    938-8M0115137 CYLINDER HEAD ASSEMBLY
    350 (Bare)
    CYLINDER HEAD ASSEMBLY
    350 (Bare)
  • 23
    900-8M0061735 CYLINDER HEAD ASSEMBLY
    377 (Loaded - Includes references 14-19, 24-25)
    CYLINDER HEAD ASSEMBLY
    377 (Loaded - Includes references 14-19, 24-25)
  • 24
    16-34522 STUD
    STUD
  • 24
    16-34521 STUD
    STUD
  • 25
    27-75611001 GASKET
    GASKET
  • 26
    10-11968 SCREW, (.437-14 x 1.750)
    SCREW, (.437-14 x 1.750)
  • 27
    10-119671 SCREW, (.437-14 x 3.00)
    SCREW, (.437-14 x 3.00)
  • 28
    10-11966 SCREW, (.437-14 x 3.750)
    SCREW, (.437-14 x 3.750)
  • 29
    8M6003194 SENSOR ASSEMBLY, Knock
    SENSOR ASSEMBLY, Knock
  • 30
    11-82670912 NUT, (.375-16) Stainless Steel
    NUT, (.375-16) Stainless Steel
  • 31
    16-863414 STUD, Knock Sensor
    STUD, Knock Sensor
  • -
    27-807670A96 GASKET/SEAL SET, Engine Overhaul
    GASKET/SEAL SET, Engine Overhaul
  • -
    27-75611A03 GASKET SET, Cylinder Head
    GASKET SET, Cylinder Head
