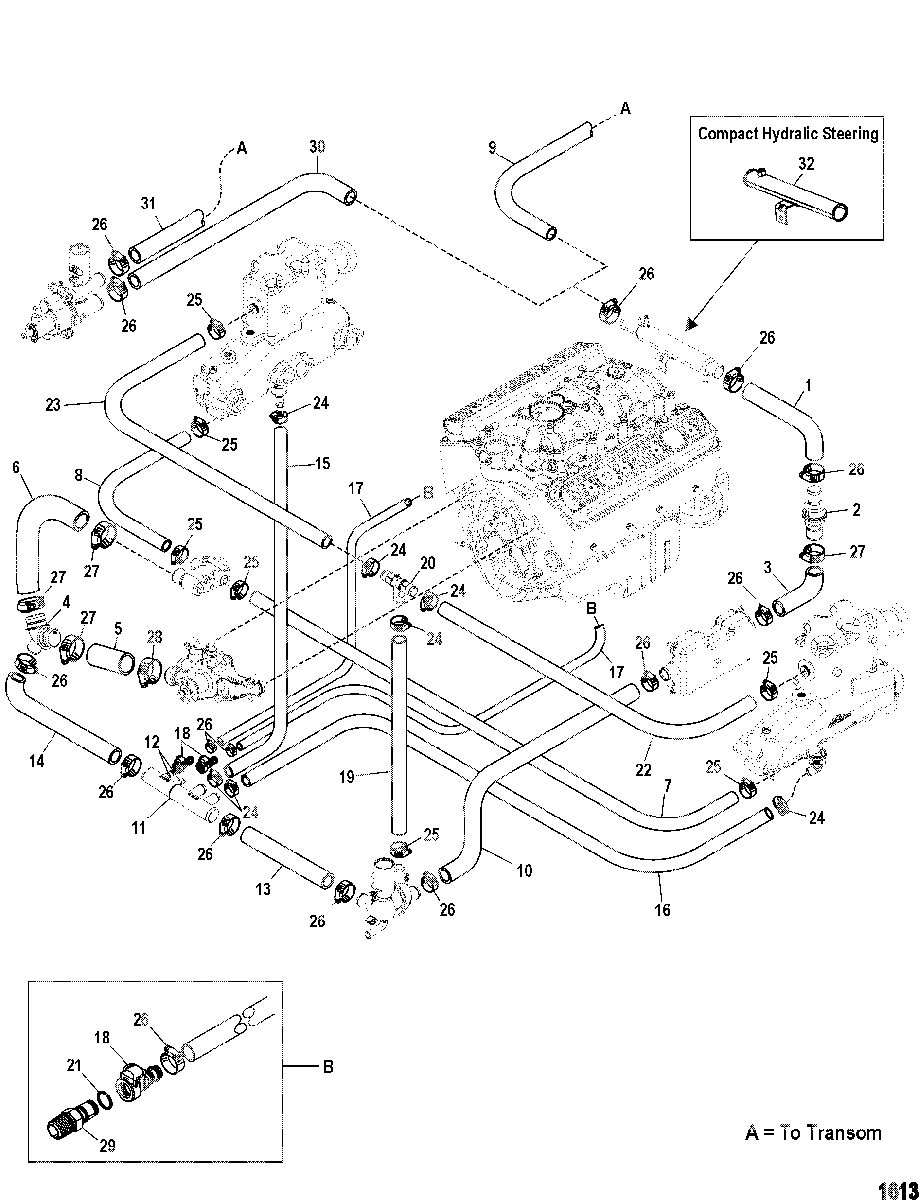

Standard Cooling System(Easy Drain) для Mercruiser - MX 6.2L MPI BRAVO 0M300000 THRU 0M599999

  • №
    Артикул
    Название
  • 1
    32-863489 HOSE, Power Steering Cooler To Check Valve
    HOSE, Power Steering Cooler To Check Valve
  • 2
    21-864206A1 CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 3
    32-863623 HOSE, Check Valve To Fuel Cooler
    HOSE, Check Valve To Fuel Cooler
  • 4
    32-863456A1 FITTING, Y
    FITTING, Y
  • 5
    32-862274 HOSE, Lower Circulation Pump
    HOSE, Lower Circulation Pump
  • 6
    32-863456A1 HOSE, Y Fitting To Circulating Pump
    HOSE, Y Fitting To Circulating Pump
  • 7
    32-863458 HOSE, Thermostat Housing To Port Manifold
    HOSE, Thermostat Housing To Port Manifold
  • 8
    32-863459 HOSE, Thermostat Housing To Starboard Manifold
    HOSE, Thermostat Housing To Starboard Manifold
  • 9
    32-807661 HOSE, Transom To Power Steering Cooler
    HOSE, Transom To Power Steering Cooler
  • 10
    32-863670 HOSE, Fuel Cooler To Water Distribution Housing
    (With Power Steering)
    HOSE, Fuel Cooler To Water Distribution Housing
    (With Power Steering)
  • 10
    32-863937 HOSE, Fuel Cooler To Water Distribution Housing
    (With Out Power Steering)
    HOSE, Fuel Cooler To Water Distribution Housing
    (With Out Power Steering)
  • 11
    22-864621A1 FITTING, Lower Distribution
    FITTING, Lower Distribution
  • 12
    25-627021 O-RING, (.301 x .070)
    O-RING, (.301 x .070)
  • 13
    32-863490 HOSE, Water Drain Accumulator To Distribution Fitting
    HOSE, Water Drain Accumulator To Distribution Fitting
  • 14
    32-863491 HOSE, Distribution Fitting To "Y" Fitting
    HOSE, Distribution Fitting To "Y" Fitting
  • 15
    32-8M0062634 HOSE, (44.00 Inches Bulk), Starboard Manifold To Distribution Fitting
    (Cut To 22.00 Inch Length)
    HOSE, (44.00 Inches Bulk), Starboard Manifold To Distribution Fitting
    (Cut To 22.00 Inch Length)
  • 16
    32-864599 HOSE, Port Manifold To Distribution Fitting
    HOSE, Port Manifold To Distribution Fitting
  • 17
    32-8M0062590 HOSE, Cylinder Block Drain To Distribution Fitting
    (Port-23 Inch) (Starboard-17.00 Inch)
    HOSE, Cylinder Block Drain To Distribution Fitting
    (Port-23 Inch) (Starboard-17.00 Inch)
  • 18
    22-862225 FITTING, Pushlock
    FITTING, Pushlock
  • 19
    32-863465 HOSE, Drain Accumulator To Tee Fitting
    HOSE, Drain Accumulator To Tee Fitting
  • 20
    22-863464 FITTING, Tee
    (Bravo Only)
    FITTING, Tee
    (Bravo Only)
  • 20
    22-8M0065823 FITTING ASSEMBLY
    (Alpha Only)
    FITTING ASSEMBLY
    (Alpha Only)
  • NS
    22-8M0065823 BUSHING, Orifice
    (Alpha Only)
    BUSHING, Orifice
    (Alpha Only)
  • NS
    22-8M0065823 O-RING
    (Alpha Only)
    O-RING
    (Alpha Only)
  • 21
    25-627021 O-RING, (.301 x .070)
    O-RING, (.301 x .070)
  • 22
    32-863496 HOSE, T Fitting To Port Elbow
    HOSE, T Fitting To Port Elbow
  • 23
    32-863828 HOSE, T Fitting To Starboard Elbow
    HOSE, T Fitting To Starboard Elbow
  • 24
    54-815504212 CLAMP, Worm Gear, Hose
    CLAMP, Worm Gear, Hose
  • 25
    54-815504216 CLAMP, Worm Gear (1.56 Diameter), Hose
    CLAMP, Worm Gear (1.56 Diameter), Hose
  • 26
    54-815504222 CLAMP, Worm Gear (1.98 DIameter), Hose
    CLAMP, Worm Gear (1.98 DIameter), Hose
  • 27
    54-815504228 CLAMP, Worm Gear, Hose
    CLAMP, Worm Gear, Hose
  • 28
    54-815504232 CLAMP, Worm Gear (2.50 Diameter), Hose
    CLAMP, Worm Gear (2.50 Diameter), Hose
  • 29
    22-862603 FITTING, Male Quick Connector (Threaded)
    FITTING, Male Quick Connector (Threaded)
  • 30
    32-863611 HOSE, Sea Water Pump To Power Steering Cooler
    HOSE, Sea Water Pump To Power Steering Cooler
  • 31
    32-8M0062666 HOSE, Sea Water Pump To Water Pick Up
    HOSE, Sea Water Pump To Water Pick Up
  • 32
    863841T TUBE, Water, Brass
    (Compact Hydraulic Steering)
    TUBE, Water, Brass
    (Compact Hydraulic Steering)
