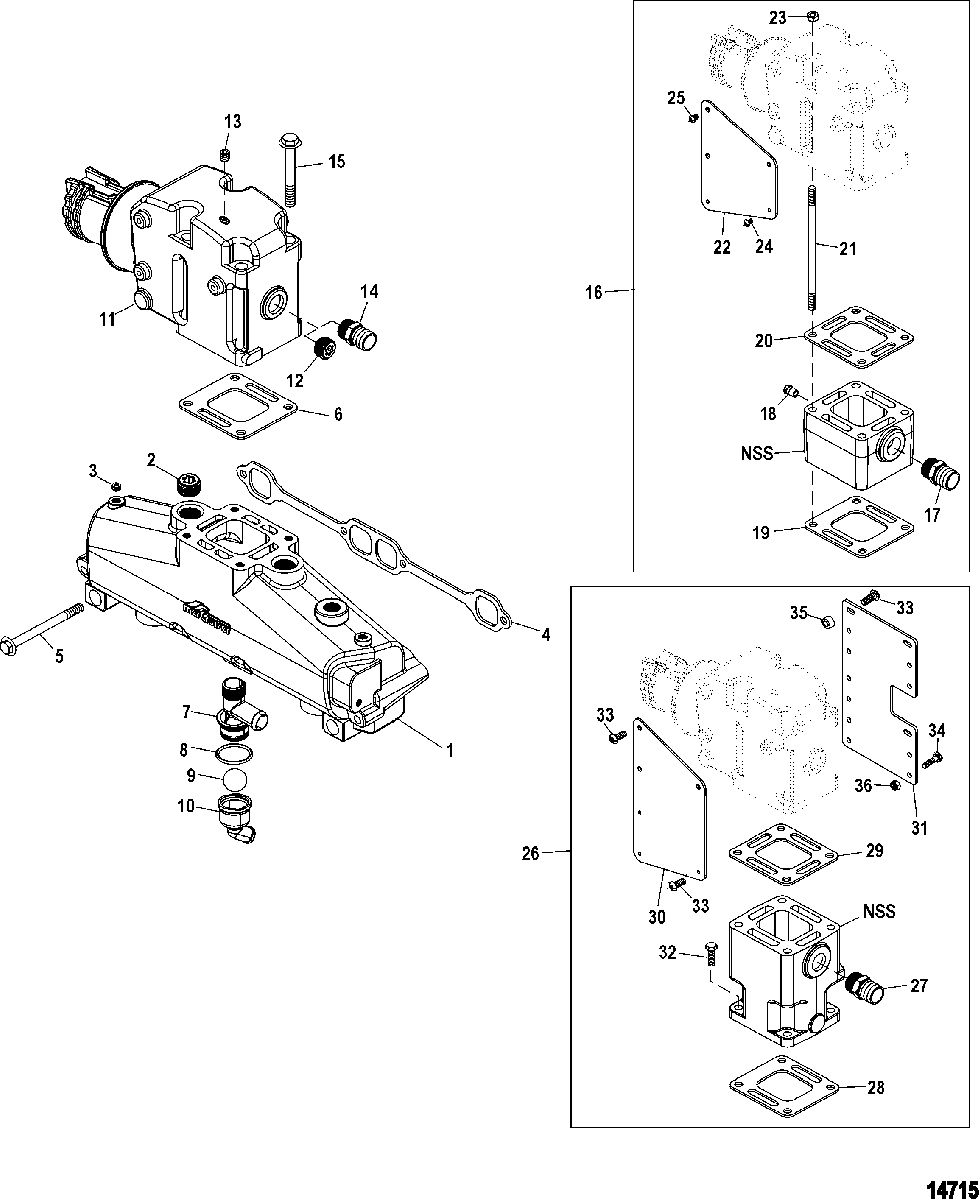

Exhaust Manifold And Elbow для Mercruiser - MX 6.2L MPI BRAVO 0M300000 THRU 0M599999

  • №
    Артикул
    Название
  • 1
    860246A15 MANIFOLD ASSEMBLY, Exhaust
    MANIFOLD ASSEMBLY, Exhaust
  • 2
    22-428611 FITTING, Pipe - Brass (.750-14)
    FITTING, Pipe - Brass (.750-14)
  • 3
    22-384071 PLUG, Pipe (.500)
    PLUG, Pipe (.500)
  • 4
    27-33395 GASKET
    GASKET
  • 5
    10-53728 SCREW, (.375-16 x 4.75)
    SCREW, (.375-16 x 4.75)
  • 6
    27-863724 GASKET, Elbow
    (Standard Cooling)
    GASKET, Elbow
    (Standard Cooling)
  • 6
    27-863726 GASKET, Elbow
    (Closed Cooling)
    GASKET, Elbow
    (Closed Cooling)
  • 7
    22-863786A1 FITTING ASSEMBLY, Drain
    FITTING ASSEMBLY, Drain
  • 8
    25-864701 O-RING, (1.112 x .103)
    O-RING, (1.112 x .103)
  • 9
    30-863129 BALL
    BALL
  • 10
    862994T FITTING
    FITTING
  • 11
    807988A03 ELBOW ASSEMBLY, Exhaust
    ELBOW ASSEMBLY, Exhaust
  • 12
    22-428611 FITTING, Pipe - Brass (.750-14)
    FITTING, Pipe - Brass (.750-14)
  • 13
    22-73379 PLUG, (.250-18)
    PLUG, (.250-18)
  • 14
    22-866725 FITTING, (.750-14)
    FITTING, (.750-14)
  • 15
    10-43749 SCREW, (.375-16 x 5.750)
    SCREW, (.375-16 x 5.750)
  • 16
    93320A15 RISER EXTENSION KIT, (3 Inch)
    RISER EXTENSION KIT, (3 Inch)
  • 17
    22-866725 FITTING, (.750-14)
    FITTING, (.750-14)
  • 18
    22-328022 PLUG, Pipe (.125-27) Brass
    PLUG, Pipe (.125-27) Brass
  • 19
    27-863724 GASKET, Restrictor
    GASKET, Restrictor
  • 20
    27-863726 GASKET
    GASKET
  • 21
    16-8M0022137 STUD, (.375 x 9.56)
    STUD, (.375 x 9.56)
  • 21
    16-8M0022138 STUD, (.375 x 10.56)
    STUD, (.375 x 10.56)
  • 22
    863714T01 BRACKET
    BRACKET
  • 23
    11-805979 NUT, (.375-24), Flange
    NUT, (.375-24), Flange
  • 24
    10-864378 SCREW, (.250-20 x .375) Torx
    SCREW, (.250-20 x .375) Torx
  • 25
    10-860008 SCREW, (.250-20 x .625) Torx
    SCREW, (.250-20 x .625) Torx
  • 26
    93322A10 RISER EXTENSION KIT, (6 Inch)
    RISER EXTENSION KIT, (6 Inch)
  • 27
    22-866725 FITTING, (.750-14)
    FITTING, (.750-14)
  • 28
    27-863724 GASKET, Restrictor
    GASKET, Restrictor
  • 29
    27-863726 GASKET
    GASKET
  • 30
    863715T01 BRACKET, ECM Mounting
    BRACKET, ECM Mounting
  • 31
    818598T BRACKET, Shift Plate Mounting
    BRACKET, Shift Plate Mounting
  • 32
    10-865982005 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 33
    10-860008 SCREW, (.250-20 x .625) Torx
    SCREW, (.250-20 x .625) Torx
  • 34
    10-28667 SCREW, (.250-20 x 1.00) Stainless Steel
    SCREW, (.250-20 x 1.00) Stainless Steel
  • 35
    23-92152T SPACER, (.27 x .75 x .38)
    SPACER, (.27 x .75 x .38)
  • 36
    11-8267138 NUT, (.25-20)
    NUT, (.25-20)
  • -
    27-861246A05 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
