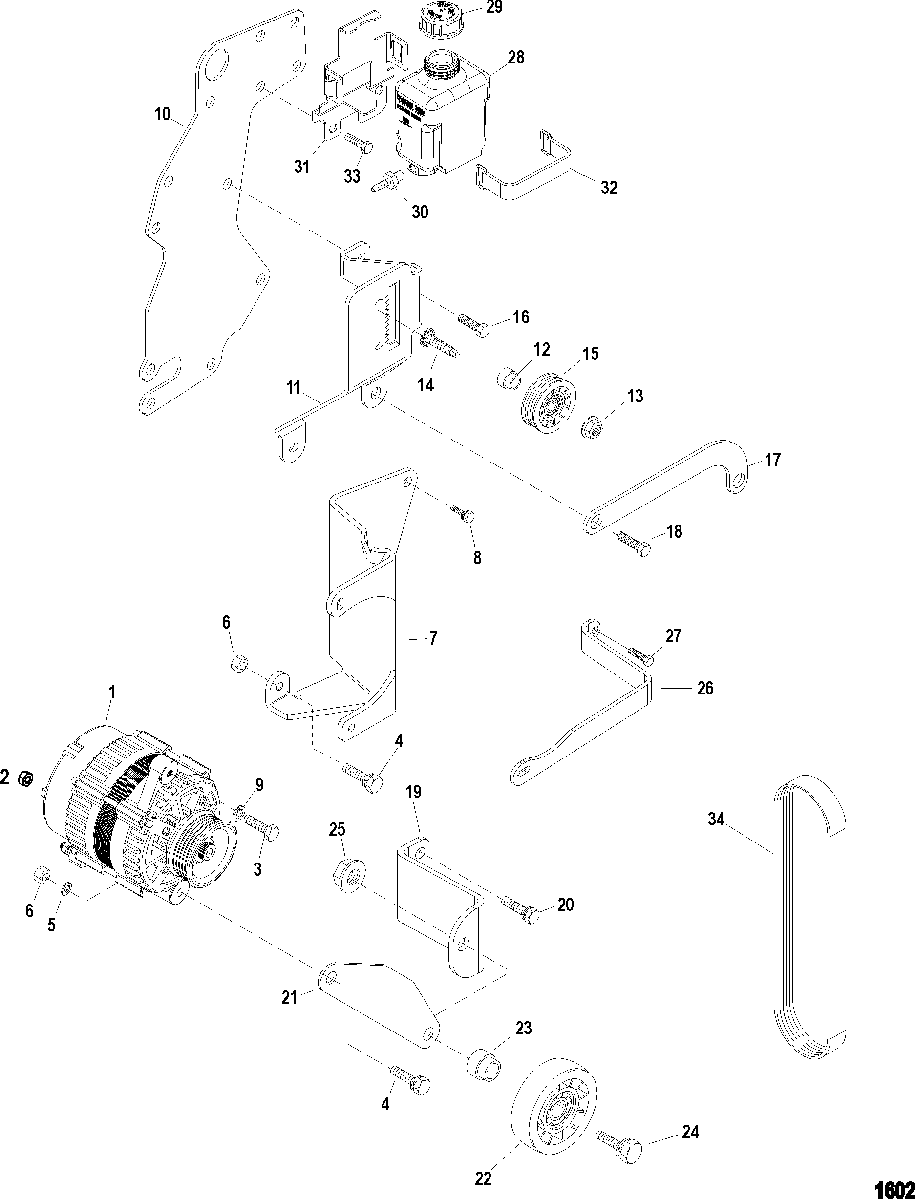

Alternator And Brackets для Mercruiser - MX 6.2L MPI BRAVO 0M300000 THRU 0M599999

  • №
    Артикул
    Название
  • -
    862031T1 ALTERNATOR ASSEMBLY, 65 Amp - With 62mm Pulley
    SN# 0M320024 & Below
    ALTERNATOR ASSEMBLY, 65 Amp - With 62mm Pulley
    SN# 0M320024 & Below
  • 1
    863077T ALTERNATOR ASSEMBLY, Black, 65 Amp With 50mm Pulley
    (Non Serviceable) SN# 0M320025 & Up
    ALTERNATOR ASSEMBLY, Black, 65 Amp With 50mm Pulley
    (Non Serviceable) SN# 0M320025 & Up
  • 2
    11-400212 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 3
    10-40001134 SCREW, (M8 x 25)
    SCREW, (M8 x 25)
  • 4
    10-828213 SCREW, (.312-18 x 1.500) Hex Flange
    SCREW, (.312-18 x 1.500) Hex Flange
  • 5
    12-57792 WASHER
    WASHER
  • 6
    11-26484 NUT, (.312-18)
    NUT, (.312-18)
  • 7
    863211T01 BRACKET, Alternator Mounting
    BRACKET, Alternator Mounting
  • 8
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 9
    12-20084 WASHER, (.328 x .562 x .062)
    WASHER, (.328 x .562 x .062)
  • 10
    863443T1 BRACKET
    (Standard Cooling)
    BRACKET
    (Standard Cooling)
  • 10
    863443T3 BRACKET
    (Closed Cooling)
    BRACKET
    (Closed Cooling)
  • 11
    862083T BRACKET, Idler Adjusting
    BRACKET, Idler Adjusting
  • 12
    865193 BUSHING
    BUSHING
  • 13
    11-859135 NUT, (.437-20) Brass/Nickel Plated
    NUT, (.437-20) Brass/Nickel Plated
  • 14
    43-8M0113182 PINION STUD, (.437-20) Stainless Steel
    PINION STUD, (.437-20) Stainless Steel
  • 15
    807757T PULLEY ASSEMBLY, Idler - Black (3.00 Inch Diameter)
    SN# 0M320024 & Below
    PULLEY ASSEMBLY, Idler - Black (3.00 Inch Diameter)
    SN# 0M320024 & Below
  • 15
    864625T PULLEY (4.25 Inch Diameter)
    (With Power Steering) SN# 0M320025 & Up
    PULLEY (4.25 Inch Diameter)
    (With Power Steering) SN# 0M320025 & Up
  • 15
    807757T PULLEY ASSEMBLY, Idler - Black (3.00 Inch Diameter)
    (Compact Hydralic Steering) SN# 0M320025 & Up
    PULLEY ASSEMBLY, Idler - Black (3.00 Inch Diameter)
    (Compact Hydralic Steering) SN# 0M320025 & Up
  • 16
    10-34353 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 17
    862082T BRACE, Power Steering
    BRACE, Power Steering
  • 18
    10-40001188 SCREW, (M10 x 20)
    SCREW, (M10 x 20)
  • 19
    864456T BRACKET, Alternator Brace
    BRACKET, Alternator Brace
  • 20
    10-34353 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 21
    862085T BRACE, Idler Bracket
    (Bravo)
    BRACE, Idler Bracket
    (Bravo)
  • 22
    8M6500024 PULLEY
    (Bravo)
    PULLEY
    (Bravo)
  • 23
    865193 BUSHING
    (Bravo)
    BUSHING
    (Bravo)
  • 24
    10-56393 SCREW, (.437-20 x 1.75)
    (Bravo)
    SCREW, (.437-20 x 1.75)
    (Bravo)
  • 25
    11-859135 NUT, (.437-20) Brass/Nickel Plated
    (Bravo)
    NUT, (.437-20) Brass/Nickel Plated
    (Bravo)
  • 26
    862778 BRACKET, Alternator Brace
    BRACKET, Alternator Brace
  • 27
    10-34353 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 28
    8M0075709 RESERVOIR, Drive Lube
    RESERVOIR, Drive Lube
  • 29
    36-8067271 CAP, Drive Lube Monitor, Drive Lube Reservoir Bottle
    CAP, Drive Lube Monitor, Drive Lube Reservoir Bottle
  • 30
    22-808624 CONNECTOR
    CONNECTOR
  • 31
    860065A1 BRACKET KIT, Oil Bottle, Reservoir Mounting
    BRACKET KIT, Oil Bottle, Reservoir Mounting
  • 32
    808023T STRAP, Bracket, Retaining
    STRAP, Bracket, Retaining
  • 33
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 34
    57-865615Q04 BELT, Serpentine
    (Alpha) (With Power Steering) SN# 0M320024 & Below
    BELT, Serpentine
    (Alpha) (With Power Steering) SN# 0M320024 & Below
  • 34
    57-865615Q04 BELT, Serpentine
    (Alpha) (With Power Steering) SN# 0M320025 & Up
    BELT, Serpentine
    (Alpha) (With Power Steering) SN# 0M320025 & Up
  • 34
    57-865615Q09 BELT, Serpentine
    (Alpha) (CHS And Non Power Steering) SN# 0M320024 & Below
    BELT, Serpentine
    (Alpha) (CHS And Non Power Steering) SN# 0M320024 & Below
  • 34
    57-865615Q09 BELT, Serpentine
    (Alpha) (CHS And Non Power Steering) SN# 0M320025 & Up
    BELT, Serpentine
    (Alpha) (CHS And Non Power Steering) SN# 0M320025 & Up
  • 34
    57-865615Q03 BELT, Serpentine
    (Bravo) (With Power Steering) SN# 0M320024 & Below
    BELT, Serpentine
    (Bravo) (With Power Steering) SN# 0M320024 & Below
  • 34
    57-865615Q03 BELT, Serpentine
    (Bravo) (With Power Steering) SN# 0M320025 & Up
    BELT, Serpentine
    (Bravo) (With Power Steering) SN# 0M320025 & Up
  • 34
    57-865615Q08 BELT, Serpentine
    (Bravo) (CHS And Non Power Steering) SN# 0M320024 & Below
    BELT, Serpentine
    (Bravo) (CHS And Non Power Steering) SN# 0M320024 & Below
  • 34
    57-865615Q08 BELT, Serpentine
    (Bravo) (CHS And Non Power Steering) SN# 0M320025 & Up
    BELT, Serpentine
    (Bravo) (CHS And Non Power Steering) SN# 0M320025 & Up
