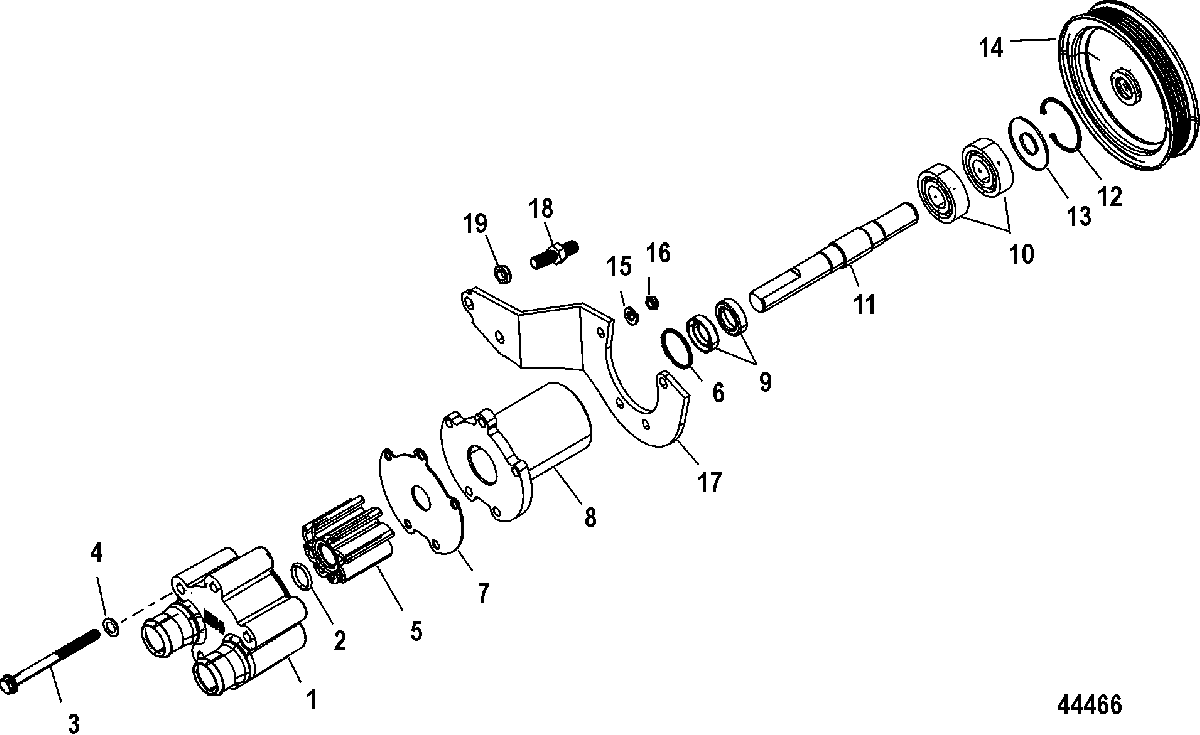

Sea Water Pump Assembly(Bravo Standard Cooling) для Mercruiser - 5.0L CARB ALPHA/BRAVO 0M600000 THRU 0W300009

  • №
    Артикул
    Название
  • -
    46-807151A9 PUMP ASSEMBLY, Sea Water, Complete
    PUMP ASSEMBLY, Sea Water, Complete
  • 1
    46-807151A14 BODY/IMPELLER KIT
    BODY/IMPELLER KIT
  • 2
    25-33465 O-RING
    O-RING
  • 3
    10-807356 SCREW, (.312-18 x 2.680) (.312-18 X .625)
    SCREW, (.312-18 x 2.680) (.312-18 X .625)
  • 3
    10-74191 SCREW, (.312-18 x 3.250)
    SCREW, (.312-18 x 3.250)
  • 4
    12-814806 WASHER, (.344 x .688 x .065) Stainless Steel
    WASHER, (.344 x .688 x .065) Stainless Steel
  • 5
    47-59362T1 IMPELLER
    IMPELLER
  • 6
    25-94288 QUAD RING
    QUAD RING
  • 7
    94576 WEAR PLATE
    WEAR PLATE
  • 8
    46-94913A5 HOUSING ASSEMBLY, Pump
    (Includes Refference 6)
    HOUSING ASSEMBLY, Pump
    (Includes Refference 6)
  • 9
    26-90562 SEAL, (1.254 x .312)
    SEAL, (1.254 x .312)
  • 10
    30-72961 BEARING, Ball
    BEARING, Ball
  • 11
    59501A1 SHAFT
    SHAFT
  • 12
    53-23720 RING, Retaining
    RING, Retaining
  • 13
    26-72785 SEAL
    SEAL
  • 14
    861579 PULLEY
    PULLEY
  • 15
    13-400247 LOCKWASHER, (M8)
    LOCKWASHER, (M8)
  • 16
    11-21908 NUT, (.312-18) Cad Plated
    NUT, (.312-18) Cad Plated
  • 17
    8077491 BRACKET
    BRACKET
  • 18
    16-860102 STUD, (.375-16 x 1.730)
    STUD, (.375-16 x 1.730)
  • 19
    11-32219 NUT, (.375-16)
    NUT, (.375-16)
