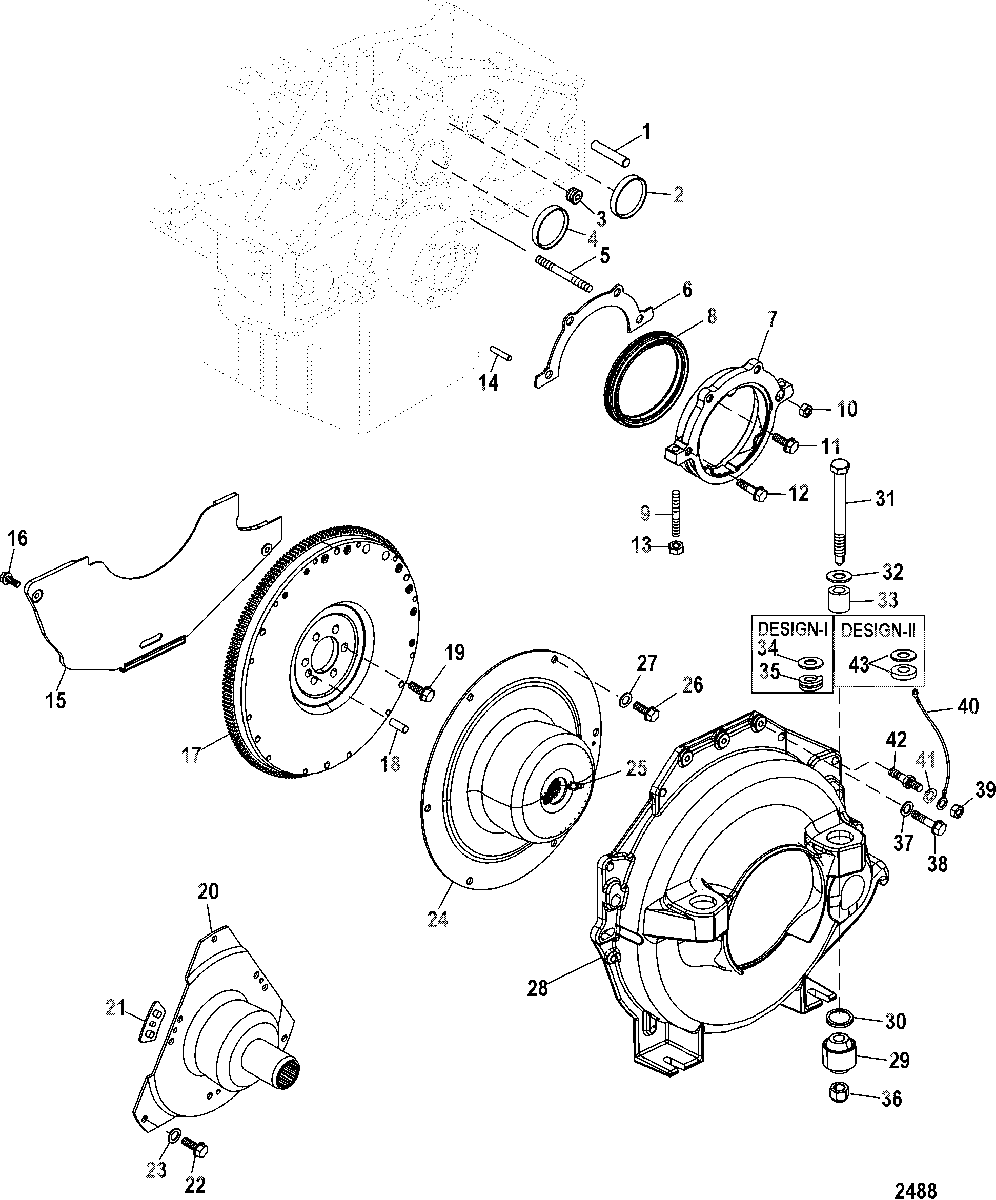

Cylinder Block and Flywheel Housing для Mercruiser - 5.0L CARB ALPHA/BRAVO 0M600000 THRU 0W300009

  • №
    Артикул
    Название
  • 1
    17-8M0092110 PIN, Dowel (.6206/.6211 x 1.20), Flywheel Housing Location
    PIN, Dowel (.6206/.6211 x 1.20), Flywheel Housing Location
  • 2
    19-34270 EXPANSION PLUG, (1.625), Engine Core Hole
    EXPANSION PLUG, (1.625), Engine Core Hole
  • 3
    22-32561 PLUG, (.250-18 x .41), Oil Galley
    PLUG, (.250-18 x .41), Oil Galley
  • 4
    22-72640 PLUG, Expansion, Camshaft Bearing Hole
    PLUG, Expansion, Camshaft Bearing Hole
  • 5
    16-14827 STUD, (.250-20 x 2.180)
    STUD, (.250-20 x 2.180)
  • 6
    27-881715 GASKET, Crankshaft Oil Seal Housing
    GASKET, Crankshaft Oil Seal Housing
  • 7
    852940 HOUSING ASSEMBLY, With Studs, Crankshaft Oil Seal
    HOUSING ASSEMBLY, With Studs, Crankshaft Oil Seal
  • 8
    26-852941 SEAL, Crankshaft Oil
    SEAL, Crankshaft Oil
  • 9
    16-11989 STUD, (.312-18 x 1.6718)
    STUD, (.312-18 x 1.6718)
  • 10
    11-8M0098315 NUT, (.250-20)
    NUT, (.250-20)
  • 11
    10-14242 BOLT, (.250-20 x .875)
    BOLT, (.250-20 x .875)
  • 12
    10-8M0064241 BOLT, (.250-20 x 1.750)
    BOLT, (.250-20 x 1.750)
  • 13
    11-11971 NUT, (.312-18)
    NUT, (.312-18)
  • 14
    17-14263 PIN, Dowel, Dowel - Oil Seal Housing Locating
    PIN, Dowel, Dowel - Oil Seal Housing Locating
  • 15
    807260A2 COVER KIT, Flywheel
    COVER KIT, Flywheel
  • NS
    11-807296 NUT, (.250-20)
    NUT, (.250-20)
  • 16
    10-76596 SCREW, (.250-20 x 1.250)
    SCREW, (.250-20 x 1.250)
  • 17
    222-8M0047213 FLYWHEEL
    FLYWHEEL
  • 18
    17-43504 PIN, Dowel, Flywheel
    PIN, Dowel, Flywheel
  • 19
    10-845757 SCREW, (.437-20 x 1.00)
    SCREW, (.437-20 x 1.00)
  • 20
    18643A5 COUPLING ASSEMBLY
    (Alpha)
    COUPLING ASSEMBLY
    (Alpha)
  • NS
    22-74036 FITTING, Grease
    (Alpha)
    FITTING, Grease
    (Alpha)
  • 21
    18644 BUMPER, Rubber
    (Alpha)
    BUMPER, Rubber
    (Alpha)
  • 22
    10-14883 SCREW, (.375-16 x 1.12)
    (Alpha)
    SCREW, (.375-16 x 1.12)
    (Alpha)
  • 23
    12-13510 WASHER
    (Alpha)
    WASHER
    (Alpha)
  • 24
    8M0098795 COUPLER ASSEMBLY, Engine - Short Aluminum Hub
    (Bravo and All Jackshaft Models)
    COUPLER ASSEMBLY, Engine - Short Aluminum Hub
    (Bravo and All Jackshaft Models)
  • 24
    861523A11 COUPLER ASSEMBLY, Engine
    (Bravo)(Steel Hub For Work Application)
    COUPLER ASSEMBLY, Engine
    (Bravo)(Steel Hub For Work Application)
  • 25
    22-49099 FITTING
    (Bravo)
    FITTING
    (Bravo)
  • 26
    10-863480 SCREW, (.375-16 x 1.125)
    (Bravo)
    SCREW, (.375-16 x 1.125)
    (Bravo)
  • 27
    12-20572 WASHER, (.390 x .750 x .093)
    (Bravo)
    WASHER, (.390 x .750 x .093)
    (Bravo)
  • 28
    865657A03 HOUSING ASSEMBLY, Flywheel, Flywheel
    SN# 0M659999 & Below
    HOUSING ASSEMBLY, Flywheel, Flywheel
    SN# 0M659999 & Below
  • 28
    865657A03 HOUSING ASSEMBLY, Flywheel, Flywheel
    SN# 0M660000 & Up
    HOUSING ASSEMBLY, Flywheel, Flywheel
    SN# 0M660000 & Up
  • 28
    865657A04 HOUSING ASSEMBLY, Flywheel, Flywheel
    SN# 0M659999 & Below
    HOUSING ASSEMBLY, Flywheel, Flywheel
    SN# 0M659999 & Below
  • 28
    865657A04 HOUSING ASSEMBLY, Flywheel, Flywheel
    SN# 0M660000 & Up
    HOUSING ASSEMBLY, Flywheel, Flywheel
    SN# 0M660000 & Up
  • 29
    8M0103028 MOUNT ASSEMBLY, Rubber
    SN# 0M659999 & Below
    MOUNT ASSEMBLY, Rubber
    SN# 0M659999 & Below
  • 29
    8M0103028 MOUNT, Rubber
    SN# 0M660000 & Up
    MOUNT, Rubber
    SN# 0M660000 & Up
  • 29
    865330A02 MOUNT KIT, Rubber
    SN# 0M659999 & Below
    MOUNT KIT, Rubber
    SN# 0M659999 & Below
  • 29
    865330A02 MOUNT, Rubber
    SN# 0M660000 & Up
    MOUNT, Rubber
    SN# 0M660000 & Up
  • 30
    23-99322 SPACER
    SPACER
  • 31
    10-97934 SCREW, (.500-20 x 5.370) Special
    SCREW, (.500-20 x 5.370) Special
  • 32
    12-35777 WASHER, (.5156 x 1.375 x .125) Aluminum
    WASHER, (.5156 x 1.375 x .125) Aluminum
  • 33
    23-99299 SPACER, (.520 x .870 x .630)
    SPACER, (.520 x .870 x .630)
  • 34
    12-32834 WASHER, (.9375 x 1.750 x .172)
    SN# 0M659999 & Below
    WASHER, (.9375 x 1.750 x .172)
    SN# 0M659999 & Below
  • 35
    13-33734 LOCKWASHER, (.500)
    SN# 0M659999 & Below
    LOCKWASHER, (.500)
    SN# 0M659999 & Below
  • 36
    11-863332 NUT, (.500-20) Aluminum
    NUT, (.500-20) Aluminum
  • 37
    12-20572 WASHER, (.390 x .750 x .093)
    WASHER, (.390 x .750 x .093)
  • 38
    10-37612 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 38
    10-32132 SCREW, (.375-16 x 1.750)
    SCREW, (.375-16 x 1.750)
  • 39
    11-32219 NUT, (.375-16)
    NUT, (.375-16)
  • 40
    84-62826T06 CABLE ASSEMBLY, Ground (13.00 Inches) Black
    CABLE ASSEMBLY, Ground (13.00 Inches) Black
  • 41
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 42
    16-861316 STUD, (.375-16 x 2.750) Special
    STUD, (.375-16 x 2.750) Special
  • 42
    16-861316 STUD
    (Horizon)
    STUD
    (Horizon)
  • 43
    12-892619A01 SHIM KIT, Rear Engine Mount
    (Where Applicable) SN# 0M660000 & Up
    SHIM KIT, Rear Engine Mount
    (Where Applicable) SN# 0M660000 & Up
  • -
    27-861246A05 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
