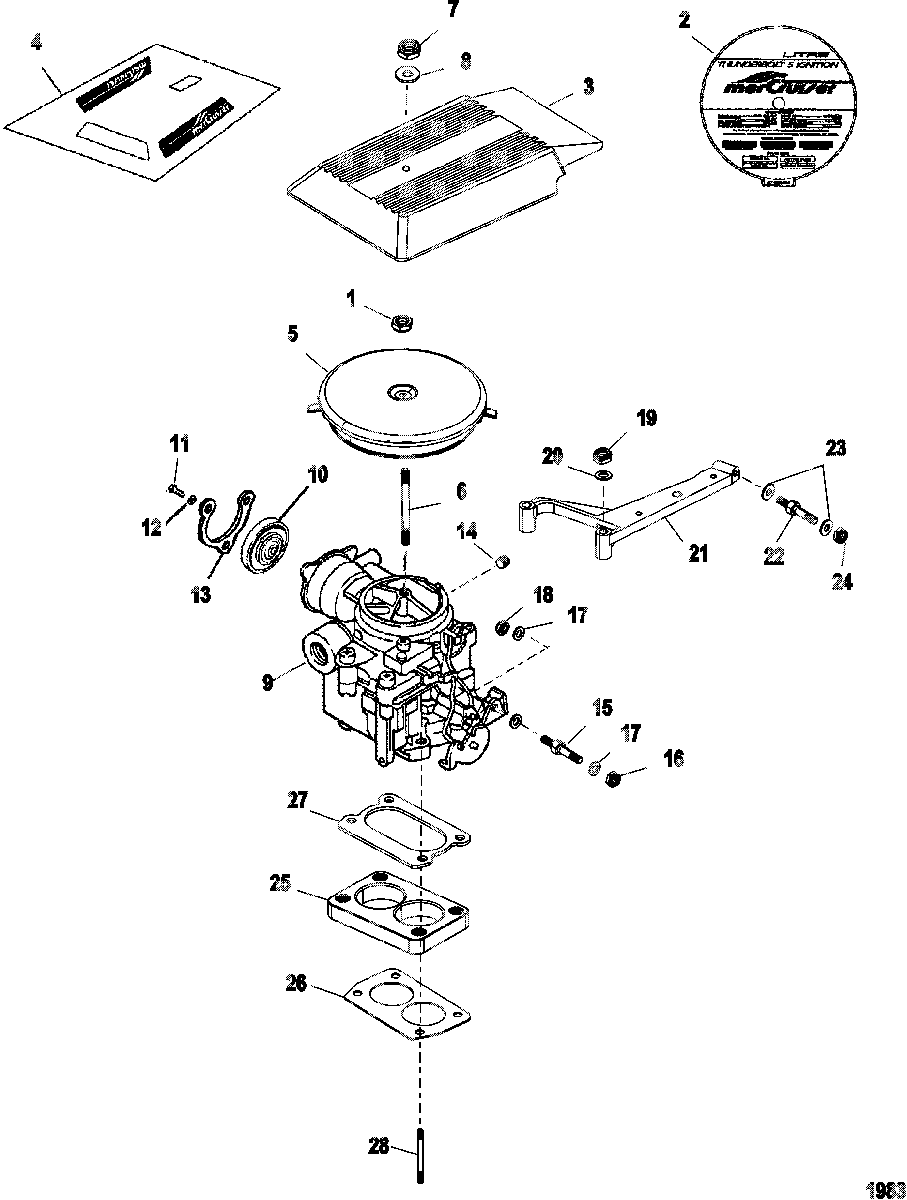

Carburetor and Throttle Linkage для Mercruiser - 5.0L CARB ALPHA/BRAVO 0M600000 THRU 0W300009

  • №
    Артикул
    Название
  • 1
    11-863001 NUT, (.250-28)
    NUT, (.250-28)
  • 2
    37-8615081 DECAL SET
    (5.0L Alpha)
    DECAL SET
    (5.0L Alpha)
  • 2
    37-865020 DECAL
    (5.7L Alpha)
    DECAL
    (5.7L Alpha)
  • 3
    18484A3 COVER
    (5.0L Bravo and 5.7L Aalpha/Bravo)
    COVER
    (5.0L Bravo and 5.7L Aalpha/Bravo)
  • 4
    37-861314A10 DECAL SET
    (5.0L Bravo)
    DECAL SET
    (5.0L Bravo)
  • 4
    37-861314A12 DECAL SET
    (5.7L Alpha/Bravo)
    DECAL SET
    (5.7L Alpha/Bravo)
  • 5
    863200 FLAME ARRESTOR
    FLAME ARRESTOR
  • 6
    16-8M0113181 STUD, (.250-20/.250-28 x Special) (3 Inch)
    STUD, (.250-20/.250-28 x Special) (3 Inch)
  • 7
    11-8267139 NUT, (.250-28)
    NUT, (.250-28)
  • 8
    12-86400 WASHER
    WASHER
  • 9
    3310-864942A01 CARBURETOR ASSEMBLY
    (5.0L Alpha/Bravo) SN# 0M623982 & Below
    CARBURETOR ASSEMBLY
    (5.0L Alpha/Bravo) SN# 0M623982 & Below
  • 9
    3310-864942A01 CARBURETOR ASSEMBLY
    (5.0L Alpha/Bravo) SN# 0M623983 & Up
    CARBURETOR ASSEMBLY
    (5.0L Alpha/Bravo) SN# 0M623983 & Up
  • 9
    3310-864943A01 CARBURETOR ASSEMBLY
    (5.7L Alpha/Bravo) SN# 0M625179 & Below
    CARBURETOR ASSEMBLY
    (5.7L Alpha/Bravo) SN# 0M625179 & Below
  • 9
    3310-864943A01 CARBURETOR ASSEMBLY
    (5.7L Alpha/Bravo) SN# 0M625180 & Up
    CARBURETOR ASSEMBLY
    (5.7L Alpha/Bravo) SN# 0M625180 & Up
  • 10
    70125A02 COVER, Choke
    COVER, Choke
  • 11
    10-33047 SCREW
    SCREW
  • 12
    13-26995 LOCKWASHER, (#8) Stainless Steel
    LOCKWASHER, (#8) Stainless Steel
  • 13
    53-805140 PLATE
    PLATE
  • 14
    22-56800 PLUG, Pipe (.0625-27)
    PLUG, Pipe (.0625-27)
  • 15
    16-8M0113178 STUD, (.250-28 x 2.00), Throttle Cable Anchor
    STUD, (.250-28 x 2.00), Throttle Cable Anchor
  • 16
    11-8267089 NUT, (.250-28)
    NUT, (.250-28)
  • 17
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 18
    11-8267139 NUT, (.250-28)
    NUT, (.250-28)
  • 19
    11-862902 NUT, (.312-24)
    NUT, (.312-24)
  • 20
    12-20084 WASHER, (.328 x .562 x .062)
    WASHER, (.328 x .562 x .062)
  • 20
    12-26825 WASHER, (.328 x .750 x .06)
    WASHER, (.328 x .750 x .06)
  • 21
    805489T BRACKET
    BRACKET
  • 22
    16-38525 STUD
    STUD
  • 23
    12-24664 WASHER, (M4 x 20)
    WASHER, (M4 x 20)
  • 24
    11-8267139 NUT, (.250-28)
    NUT, (.250-28)
  • 25
    807726A2 ADAPTOR
    ADAPTOR
  • 26
    27-8079821 GASKET
    GASKET
  • 27
    27-861246 GASKET
    GASKET
  • 28
    16-807849 STUD, (.312-18/.312-24 x 3.380)
    STUD, (.312-18/.312-24 x 3.380)
  • 28
    16-65868 STUD, (.312-18/.312-24 x 2.120)
    STUD, (.312-18/.312-24 x 2.120)
  • -
    27-861246A05 GASKET SET
    GASKET SET
