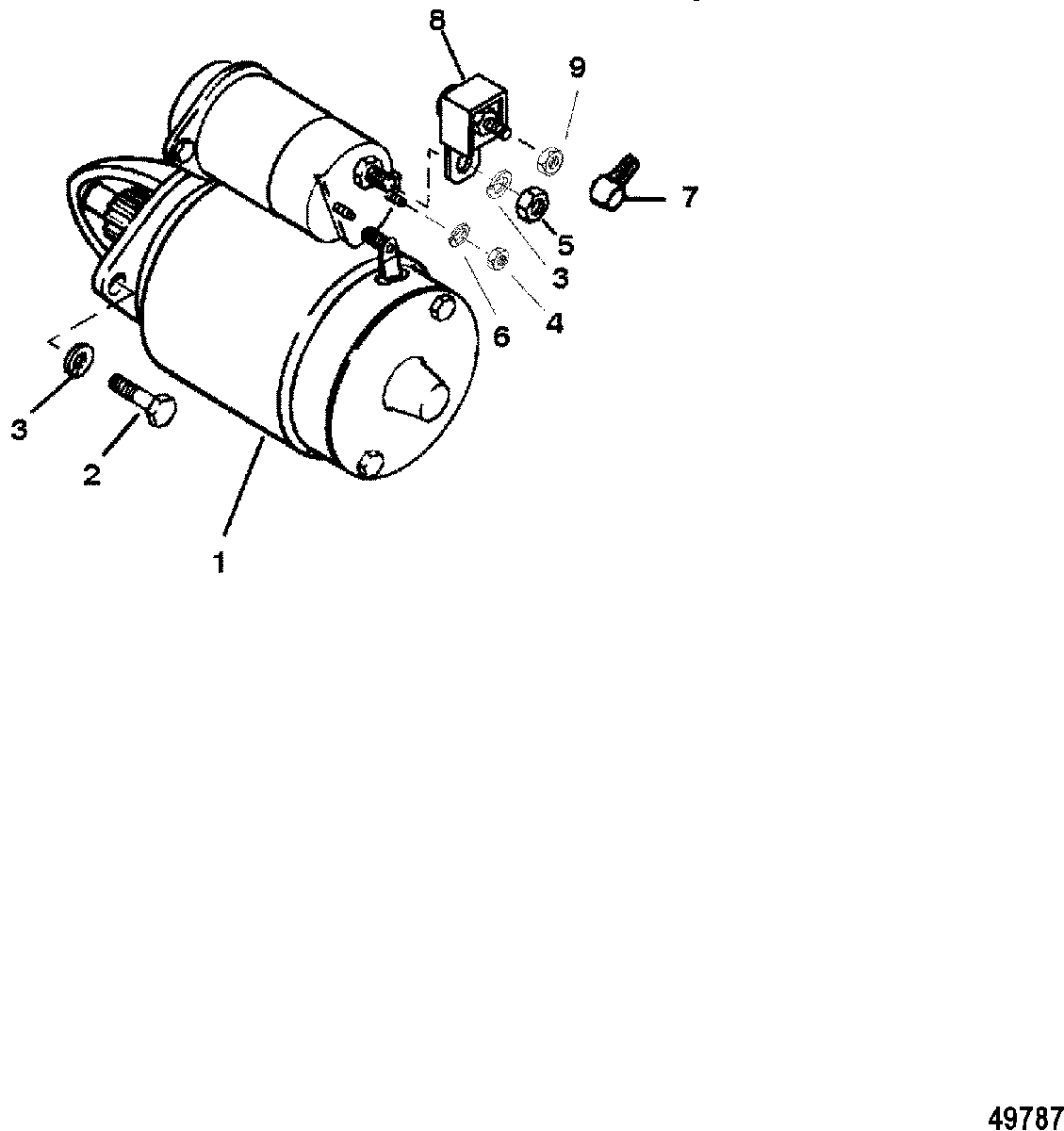

Starter Motor для Mercruiser - 383 Mag Inboard 4V 1G400000 & Up
-
№АртикулНазвание
-
150-808011A05 STARTER MOTOR ASSEMBLY
LH RotationSTARTER MOTOR ASSEMBLY
LH Rotation -
150-97499R3 STARTER MOTOR ASSEMBLY
RH RotationSTARTER MOTOR ASSEMBLY
RH Rotation -
210-47462 SCREW, (.437-14 x 1.250)SCREW, (.437-14 x 1.250)
-
313-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
411-400211 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
511-15874 NUT, (M10)NUT, (M10)
-
613-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
785-79695T BOOT, Insulator (Black)BOOT, Insulator (Black)
-
888-79023A91 FUSE ASSEMBLY, 90 AmpereFUSE ASSEMBLY, 90 Ampere
-
911-21825 NUT, (.250-28)NUT, (.250-28)
