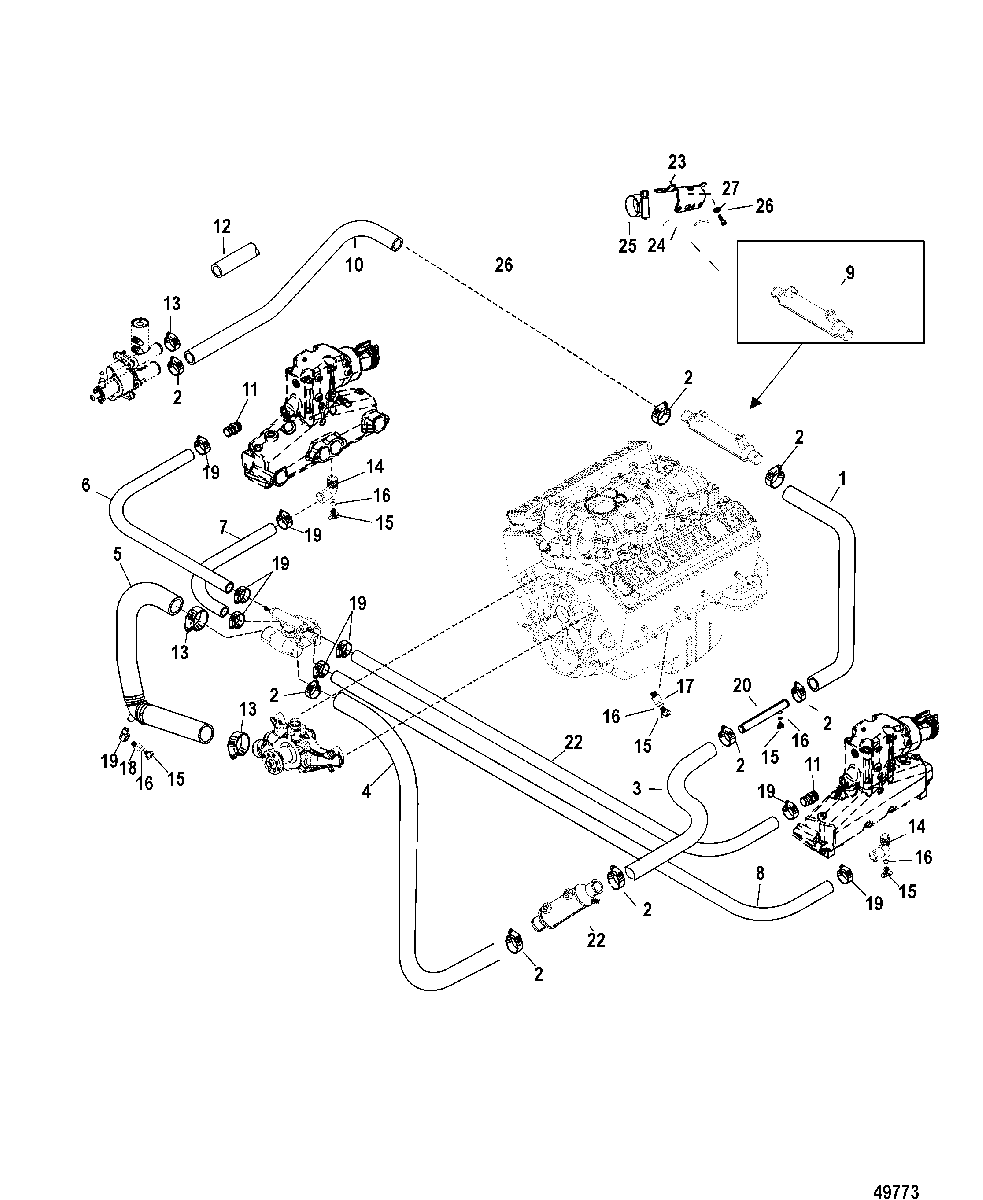

Standard Cooling System для Mercruiser - 383 Mag Inboard 4V 1G400000 & Up
-
№АртикулНазвание
-
132-8600891 HOSE, Molded, Power Steering to Fuel CoolerHOSE, Molded, Power Steering to Fuel Cooler
-
254-815504224 CLAMP, Worm GearCLAMP, Worm Gear
-
332-866331 HOSE, Drain Fitting to Check ValveHOSE, Drain Fitting to Check Valve
-
432-16012 HOSE, Circulating Pump to Drain ElbowHOSE, Circulating Pump to Drain Elbow
-
532-864703A1 HOSE, Pump to Drain ElbowHOSE, Pump to Drain Elbow
-
632-864435 HOSEHOSE
-
732-807697 HOSE, Thermostat Housing to Starboard ManifoldHOSE, Thermostat Housing to Starboard Manifold
-
832-863458 HOSE, Thermostat Housing to Port ManifoldHOSE, Thermostat Housing to Port Manifold
-
9862837T COOLER, Transmission OilCOOLER, Transmission Oil
-
1032-8080441 HOSE, Molded, Seawater Pump to Steering CoolerHOSE, Molded, Seawater Pump to Steering Cooler
-
1122-866725 FITTING, Straight (.750-14), BarbFITTING, Straight (.750-14), Barb
-
1232-8M0062666 HOSE, (96.00 Inches Bulk)HOSE, (96.00 Inches Bulk)
-
1354-815504232 CLAMP, Worm Gear (2.50 Diameter)CLAMP, Worm Gear (2.50 Diameter)
-
1422-862210A01 ELBOW KIT, DrainELBOW KIT, Drain
-
1522-8M0119211 PLUG ASSEMBLY, (.500-13) BluePLUG ASSEMBLY, (.500-13) Blue
-
1625-26802 O-RING, (.424 x .103)O-RING, (.424 x .103)
-
1722-860088 BUSHINGBUSHING
-
1822-46982 FITTING, (90 Degree)FITTING, (90 Degree)
-
1954-815504216 CLAMP, (25 - 40 mm)CLAMP, (25 - 40 mm)
-
20861505 FITTINGFITTING
-
21806426T COOLER, Engine OilCOOLER, Engine Oil
-
2232-864979 HOSEHOSE
-
23805546A2 BRACKETBRACKET
-
24772233 PADPAD
-
2554-815504232 CLAMP, Worm Gear (2.50 Diameter)CLAMP, Worm Gear (2.50 Diameter)
-
2610-37612 SCREW, (.375-16 x 1.250)SCREW, (.375-16 x 1.250)
-
2713-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
