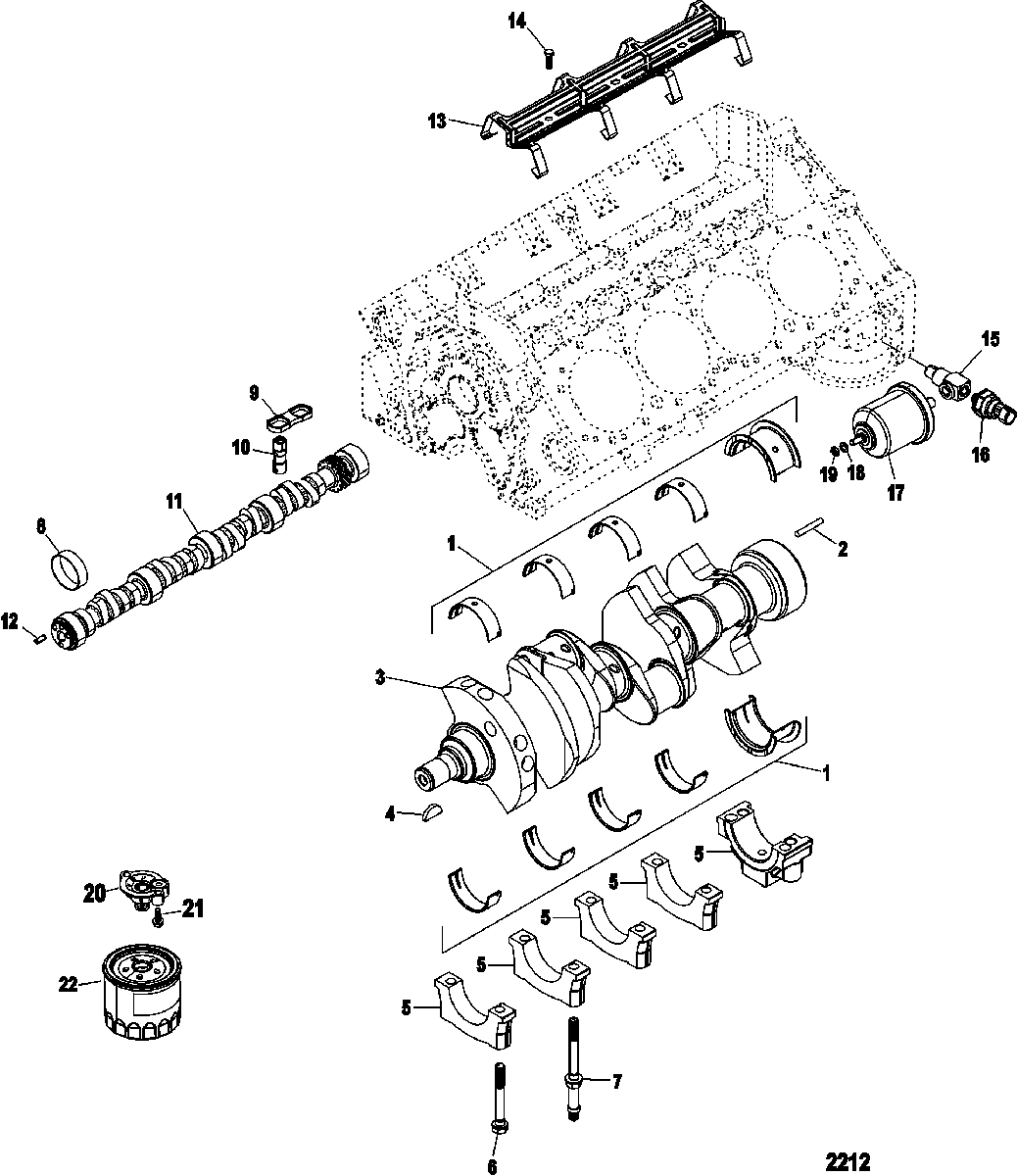

Cylinder Block, Camshaft and Crankshaft для Mercruiser - 383 Mag Inboard 4V 1G400000 & Up

  • №
    Артикул
    Название
  • 1
    31-849396 BEARING SET, Standard - 5 Pair
    BEARING SET, Standard - 5 Pair
  • 1
    31-849395 BEARING SET, (.001 Oversize) 5 Pair
    BEARING SET, (.001 Oversize) 5 Pair
  • 1
    31-849394 BEARING SET, (.001 Undersize) 5 Pair
    BEARING SET, (.001 Undersize) 5 Pair
  • 2
    17-43504 PIN, Dowel
    PIN, Dowel
  • 3
    429-863323T1 CRANKSHAFT
    CRANKSHAFT
  • 4
    28-862594 KEY, Crankshaft
    KEY, Crankshaft
  • 5
    NSS NOT SOLD SEPARATE, Cap-Crankshaft Bearing
    NOT SOLD SEPARATE, Cap-Crankshaft Bearing
  • 6
    10-8625671 SCREW, Crankshaft Bearing Cap
    SCREW, Crankshaft Bearing Cap
  • 7
    16-850090 STUD, (.437-14/.375-16 x 3.360), Crankshaft Bearing Cap
    STUD, (.437-14/.375-16 x 3.360), Crankshaft Bearing Cap
  • 8
    23-85674 BEARING SET
    BEARING SET
  • 9
    17341T GUIDE, Lifter
    GUIDE, Lifter
  • 10
    17340T1 LIFTER, Roller
    LIFTER, Roller
  • 11
    400-8M0060619 CAMSHAFT
    STD Rotation (LH)
    CAMSHAFT
    STD Rotation (LH)
  • 11
    400-8M0064648 CAMSHAFT
    REV Rotation (RH)
    CAMSHAFT
    REV Rotation (RH)
  • 12
    17-843378 PIN, Dowel
    PIN, Dowel
  • 13
    811662 RETAINER, Lifter Guide
    RETAINER, Lifter Guide
  • 14
    10-34500 SCREW, (.312-18 x .625)
    SCREW, (.312-18 x .625)
  • 15
    22-864669 FITTING
    FITTING
  • 16
    87-8M0070108 SWITCH, Oil Pressure
    SWITCH, Oil Pressure
  • 17
    8M0068784 SENDER ASSEMBLY, Oil Pressure
    SENDER ASSEMBLY, Oil Pressure
  • 18
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 19
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 20
    71920 VALVE ASSEMBLY, Filter
    VALVE ASSEMBLY, Filter
  • 21
    10-54786 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 22
    35-866340Q03 FILTER, Oil - Quicksilver Brand
    FILTER, Oil - Quicksilver Brand
  • 22
    35-866340K01 FILTER, Oil - Mercury Brand
    FILTER, Oil - Mercury Brand
  • -
    92-809825 RTV SILICONE, (3 Ounce Tube) Metallic Blue
    RTV SILICONE, (3 Ounce Tube) Metallic Blue
  • -
    92-34227Q02 SEALING COMPOUND
    SEALING COMPOUND
