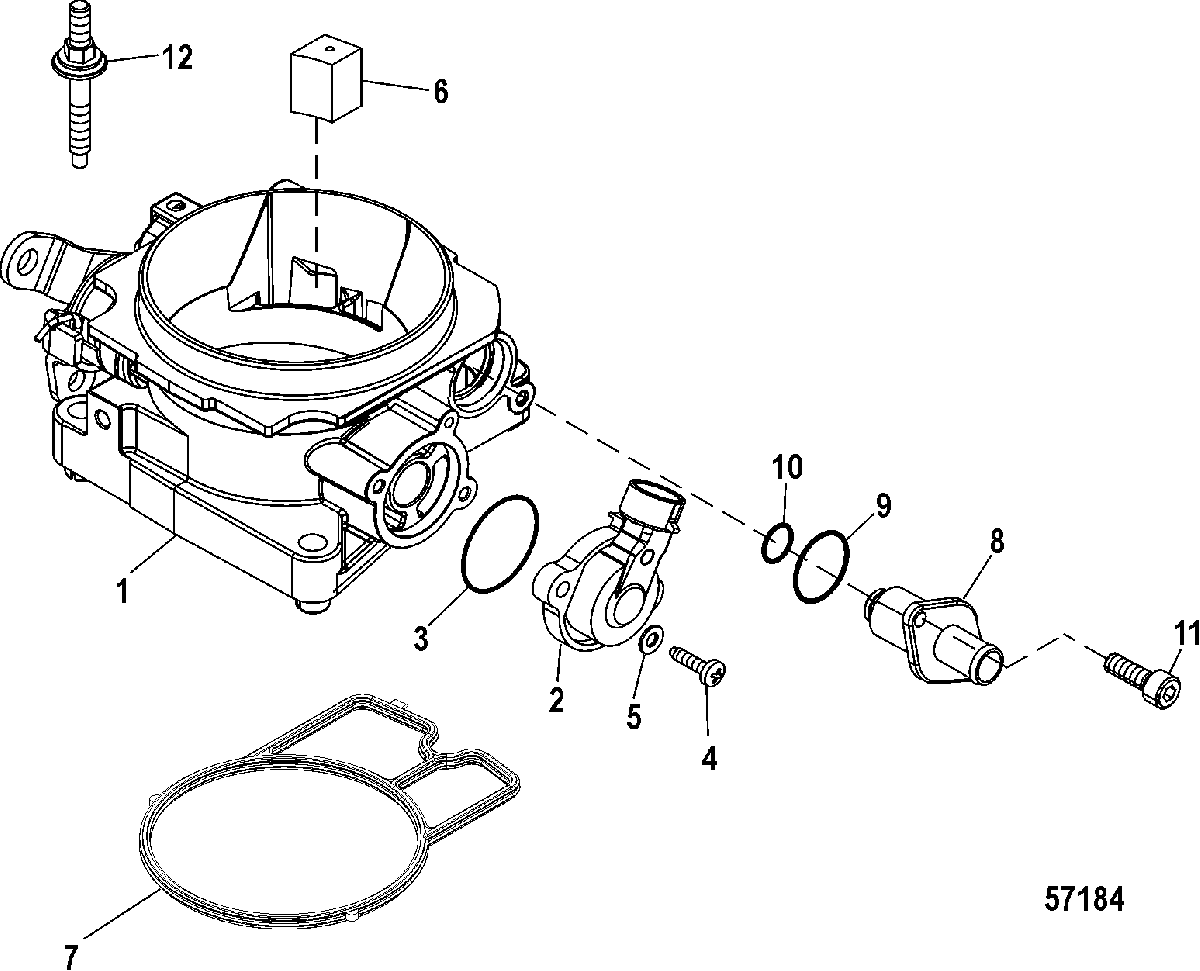

Throttle Body(Mechanical Throttle and Shift) для Mercruiser - 350 MPI Crate 1G400000 & Up

  • №
    Артикул
    Название
  • 1
    8M0096994 THROTTLE BODY ASSEMBLY
    THROTTLE BODY ASSEMBLY
  • 2
    8M0097035 SENSOR, TPS
    SENSOR, TPS
  • 3
    NSS NOT SOLD SEPARATE, O-RING
    NOT SOLD SEPARATE, O-RING
  • 4
    10-4008612 SCREW, (M4 x 12)
    SCREW, (M4 x 12)
  • 5
    NSS NOT SOLD SEPARATE, O-RING
    NOT SOLD SEPARATE, O-RING
  • 6
    35-863829 MUFFLER, Intake Air Control
    MUFFLER, Intake Air Control
  • 7
    27-8M4502066 GASKET, Throttle Body
    GASKET, Throttle Body
  • 8
    862999A5 ADAPTOR ASSEMBLY, IAC
    ADAPTOR ASSEMBLY, IAC
  • 9
    25-863006 O-RING
    O-RING
  • 10
    25-808547 O-RING
    O-RING
  • 11
    10-4008612 SCREW, (M4 x 12)
    SCREW, (M4 x 12)
  • 12
    16-8M0088142 STUD
    STUD
