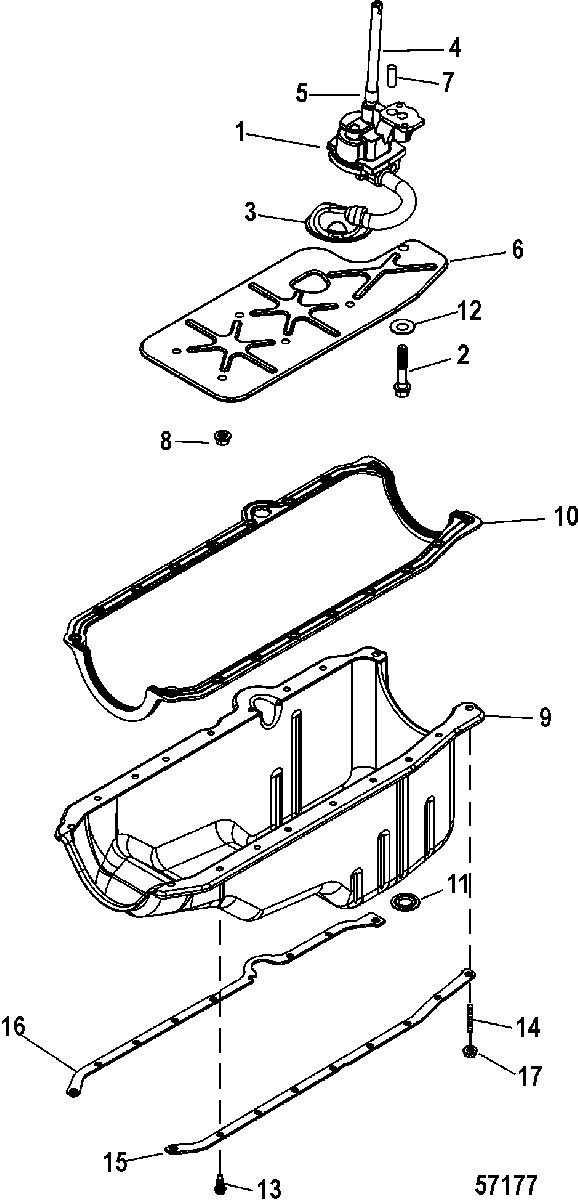

Oil Pan and Oil Pump для Mercruiser - 350 MPI Crate 1G400000 & Up

  • №
    Артикул
    Название
  • 1
    809907002 PUMP ASSEMBLY, Oil
    PUMP ASSEMBLY, Oil
  • 2
    10-17346 SCREW, Oil Pump
    SCREW, Oil Pump
  • 3
    809909 SCREEN, Oil Pump Pick Up
    SCREEN, Oil Pump Pick Up
  • 4
    36184 SHAFT
    SHAFT
  • 5
    23-36183 RETAINER
    RETAINER
  • 6
    986021 DEFLECTOR, Oil
    DEFLECTOR, Oil
  • 7
    17-843378 PIN, Dowel, Alignment, Oil PUmp
    PIN, Dowel, Alignment, Oil PUmp
  • 8
    11-845602 NUT, (.375-16)
    NUT, (.375-16)
  • 9
    809910 PAN, Oil
    PAN, Oil
  • 10
    27-138651 GASKET, Oil Pan
    GASKET, Oil Pan
  • 11
    27-8M0077608 GASKET, Drain Screw
    GASKET, Drain Screw
  • 12
    12-27339 WASHER
    WASHER
  • 13
    10-14070 SCREW, (.250-20 x .625)
    SCREW, (.250-20 x .625)
  • 14
    16-11989 STUD, (.312-18 x 1.6718)
    STUD, (.312-18 x 1.6718)
  • 15
    14257 REINFORCEMENT
    REINFORCEMENT
  • 16
    14256 REINFORCEMENT
    REINFORCEMENT
  • 17
    11-11971 NUT, (.312-18)
    NUT, (.312-18)
