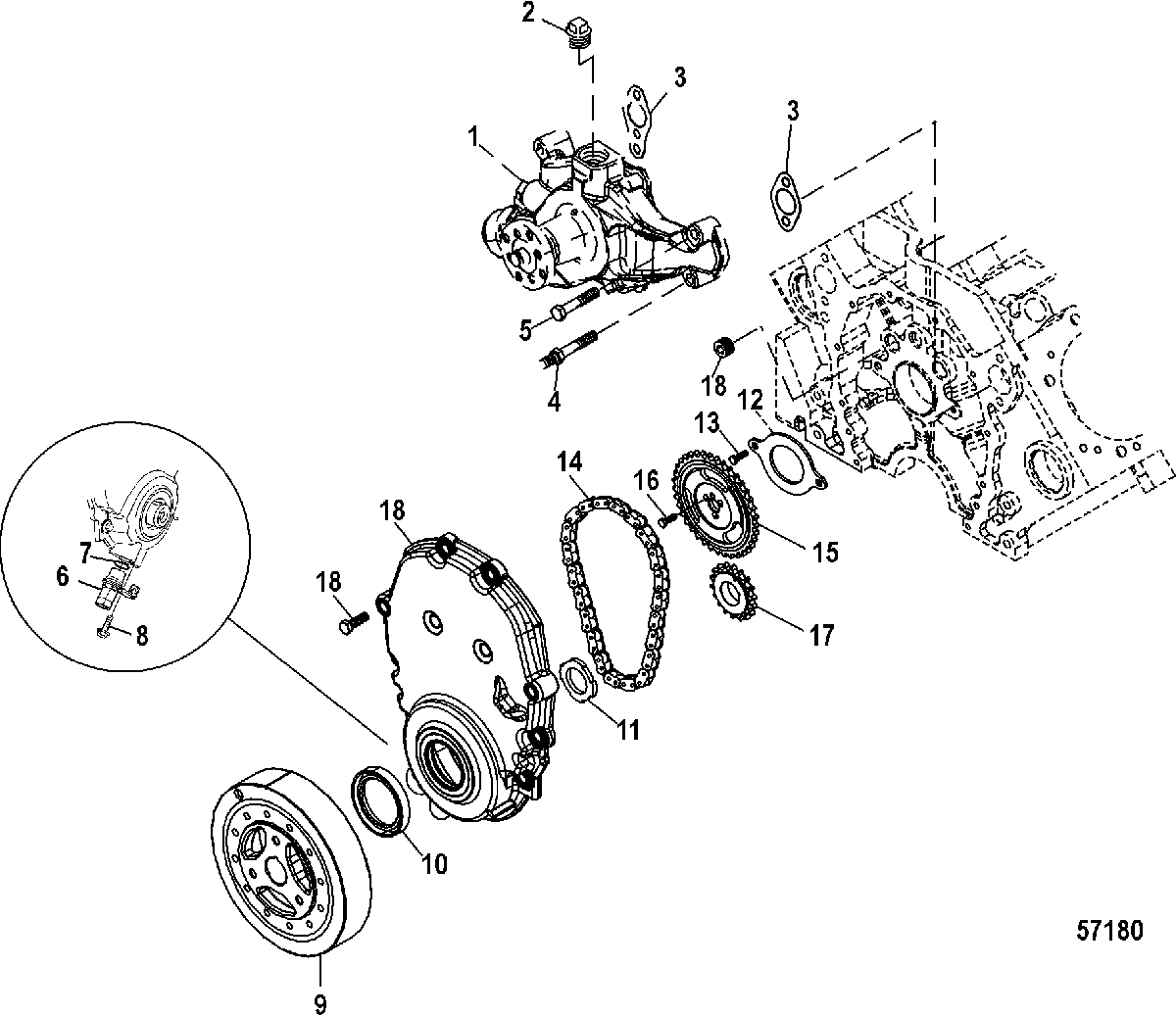

Front Cover and Circulating Pump для Mercruiser - 350 MPI Crate 1G400000 & Up

  • №
    Артикул
    Название
  • 1
    46-8M0113734 PUMP ASSEMBLY, Water
    PUMP ASSEMBLY, Water
  • 2
    22-428611 FITTING, Pipe - Brass (.750-14)
    FITTING, Pipe - Brass (.750-14)
  • 3
    27-34897 GASKET, Water Pump
    GASKET, Water Pump
  • 4
    16-8M0076418 STUD
    STUD
  • 5
    10-32132 SCREW, (.375-16 x 1.750)
    SCREW, (.375-16 x 1.750)
  • 5
    10-47688 SCREW, (.375-16 x 2.750)
    SCREW, (.375-16 x 2.750)
  • 6
    864297T01 SENSOR ASSEMBLY, Crankshaft Position
    SENSOR ASSEMBLY, Crankshaft Position
  • 7
    25-885192 O-RING
    O-RING
  • 8
    10-884018001 SCREW
    SCREW
  • 9
    863397 HARMONIC BALANCER
    HARMONIC BALANCER
  • 10
    863396001 TIMING COVER ASSEMBLY, Screws, Grommets, Oil Seal, and Gasket are Not Sold Seperately
    TIMING COVER ASSEMBLY, Screws, Grommets, Oil Seal, and Gasket are Not Sold Seperately
  • 11
    863398 RELUCTOR WHEEL
    RELUCTOR WHEEL
  • 12
    845941 RETAINER, Camshaft
    RETAINER, Camshaft
  • 13
    10-845943 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • 14
    17161T CHAIN, Timing
    CHAIN, Timing
  • 15
    43-8116591 SPROCKET, Camshaft
    SPROCKET, Camshaft
  • 16
    10-8M0043993 SCREW, (.312-18 x .750)
    SCREW, (.312-18 x .750)
  • 17
    43-17160 SPROCKET, Crankshaft
    SPROCKET, Crankshaft
  • 18
    19-816565 PLUG, Cup (.468)
    PLUG, Cup (.468)
