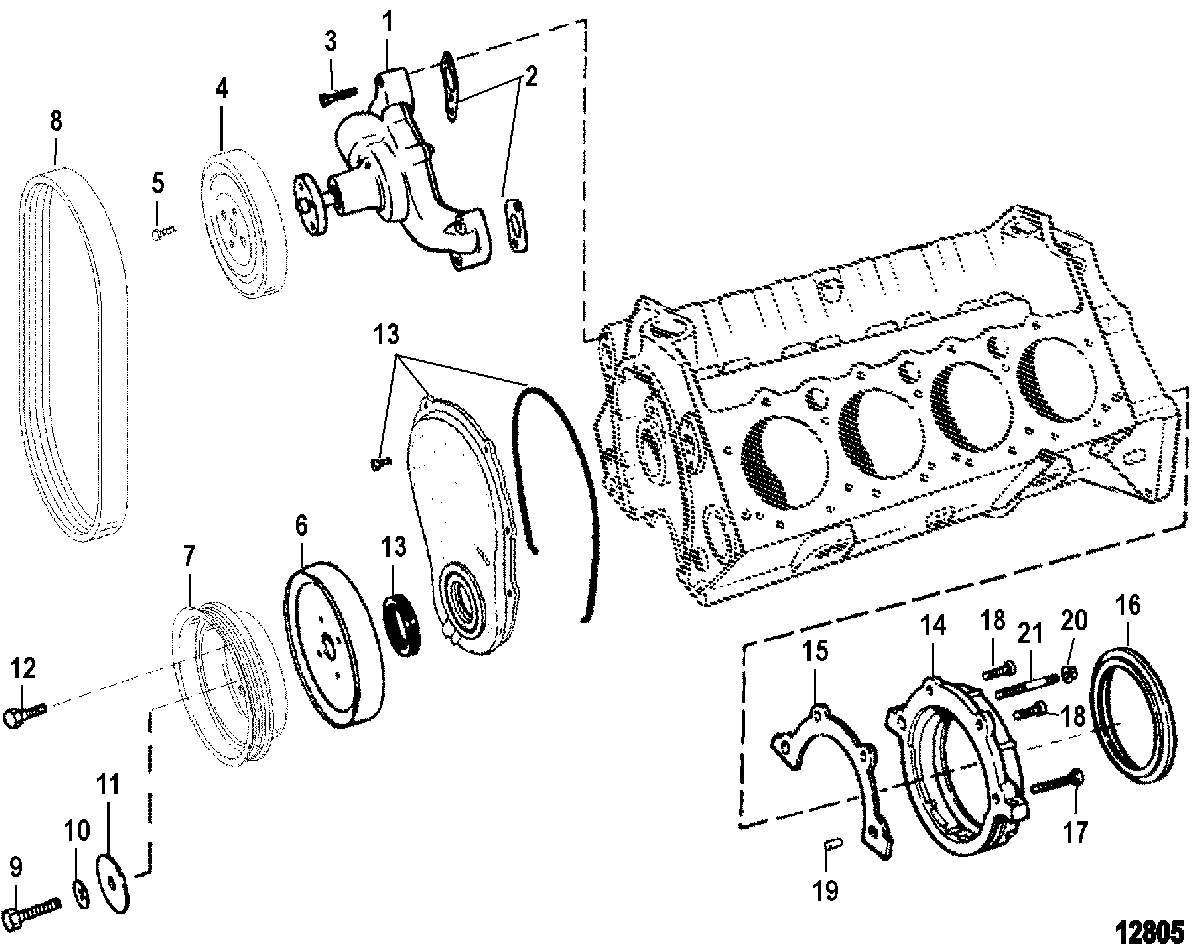

Water Pump and Front Cover для Mercruiser - 350 MAG MPI ALPHA/BRAVO 0L331599 THRU 0M299999

  • №
    Артикул
    Название
  • 1
    46-8M0113734 PUMP ASSEMBLY, Water
    PUMP ASSEMBLY, Water
  • 2
    27-34897 GASKET
    GASKET
  • 3
    10-32132 SCREW, (.375-16 x 1.750)
    SCREW, (.375-16 x 1.750)
  • 3
    10-47688 SCREW, (.375-16 x 2.750)
    SCREW, (.375-16 x 2.750)
  • 3
    16-8M0076418 STUD, (.312-24/.375-16 x 2.5625)
    STUD, (.312-24/.375-16 x 2.5625)
  • 4
    807729T PULLEY
    PULLEY
  • 5
    10-47277 SCREW, (.312-24 x .750)
    SCREW, (.312-24 x .750)
  • 6
    852946001 BALANCER, Harmonic
    BALANCER, Harmonic
  • 7
    807730T PULLEY
    PULLEY
  • 8
    57-861758Q BELT, Serpentine
    Standard Cooling-Alpha Engines-Reference Service Bulletin MC-00-003 and Parts Bulletin QS-98-001
    BELT, Serpentine
    Standard Cooling-Alpha Engines-Reference Service Bulletin MC-00-003 and Parts Bulletin QS-98-001
  • 8
    57-861757Q BELT, Serpentine
    Standard Cooling-Bravo Engines-Reference Service Bulletin MC-00-003 and Parts Bulletin QS-98-001
    BELT, Serpentine
    Standard Cooling-Bravo Engines-Reference Service Bulletin MC-00-003 and Parts Bulletin QS-98-001
  • 8
    57-861049Q BELT, Serpentine
    Closed Cooling-Reference Service Bulletin MC-00-003 and Parts Bulletin QS-98-001
    BELT, Serpentine
    Closed Cooling-Reference Service Bulletin MC-00-003 and Parts Bulletin QS-98-001
  • 8
    57-807755Q04 BELT, Serpentine
    Standard Cooling-Alpha Engines-Cooling-Reference Service Bulletin MC-00-003 and Parts Bulletin QS-98-001
    BELT, Serpentine
    Standard Cooling-Alpha Engines-Cooling-Reference Service Bulletin MC-00-003 and Parts Bulletin QS-98-001
  • 8
    57-807755Q05 BELT, Serpentine
    Closed Cooling-Alpha Engines-Cooling-Reference Service Bulletin MC-00-003 and Parts Bulletin QS-98-001
    BELT, Serpentine
    Closed Cooling-Alpha Engines-Cooling-Reference Service Bulletin MC-00-003 and Parts Bulletin QS-98-001
  • 9
    10-8M2021674 SCREW, (.437-20 x 2.50)
    SCREW, (.437-20 x 2.50)
  • 10
    13-39131 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 11
    12-35332001 WASHER
    WASHER
  • 12
    10-34352 SCREW, (.375-24 x .875)
    SCREW, (.375-24 x .875)
  • 13
    835005 COVER ASSEMBLY, Timing, Screws, grommets, oil seal and gasket are not sold separately.
    Block Code 2MH
    COVER ASSEMBLY, Timing, Screws, grommets, oil seal and gasket are not sold separately.
    Block Code 2MH
  • 13
    863396001 TIMING COVER ASSEMBLY, Screws, grommets, oil seal and gasket are not sold separately.
    Block Code 2MN
    TIMING COVER ASSEMBLY, Screws, grommets, oil seal and gasket are not sold separately.
    Block Code 2MN
  • 14
    852940 HOUSING ASSEMBLY, With Studs, Rear
    HOUSING ASSEMBLY, With Studs, Rear
  • 15
    27-881715 GASKET
    GASKET
  • 16
    26-852941 SEAL, Rear
    SEAL, Rear
  • 17
    10-8M0064241 BOLT, (.250-20 x 1.750)
    BOLT, (.250-20 x 1.750)
  • 18
    10-14242 BOLT, (.250-20 x .875)
    BOLT, (.250-20 x .875)
  • 19
    17-14263 PIN, Dowel
    PIN, Dowel
  • 20
    11-8M0098315 NUT, (.250-20)
    NUT, (.250-20)
  • 21
    16-14827 STUD, (.250-20 x 2.180)
    STUD, (.250-20 x 2.180)
  • -
    27-75611A98 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
