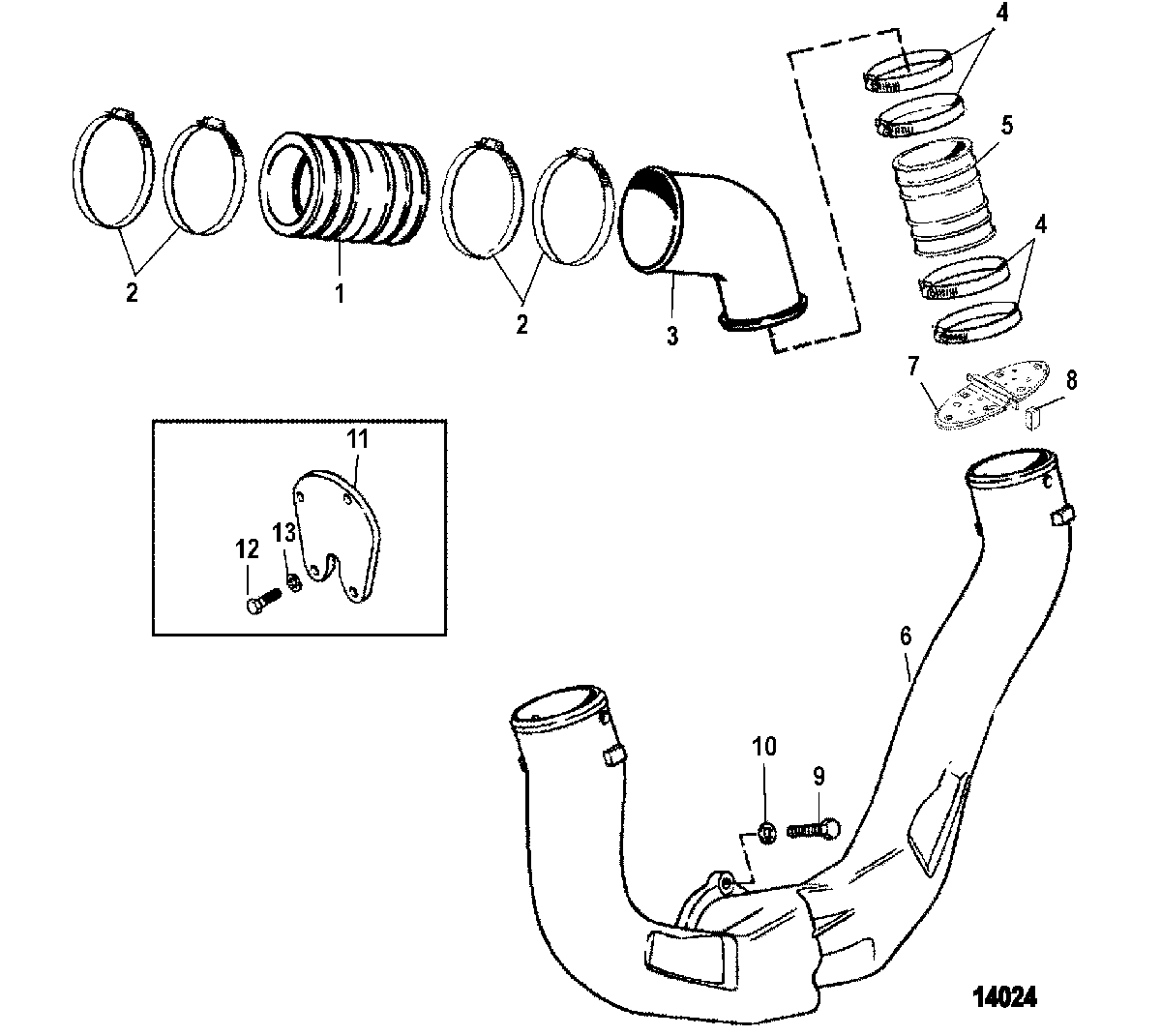

Exhaust System для Mercruiser - 350 MAG MPI ALPHA/BRAVO 0L331599 THRU 0M299999

  • №
    Артикул
    Название
  • 1
    32-44348001 TUBE, Exhaust
    (Standard)
    TUBE, Exhaust
    (Standard)
  • 1
    32-4865910 TUBE, Exhaust (12.00 Inches)
    (Blacktrac)
    TUBE, Exhaust (12.00 Inches)
    (Blacktrac)
  • 2
    54-815504272 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 3
    11086T ELBOW, Port
    (With Out Risers)
    ELBOW, Port
    (With Out Risers)
  • 3
    14343T ELBOW, Starboard
    (With Out Risers)
    ELBOW, Starboard
    (With Out Risers)
  • 3
    14801A1 ELBOW KIT
    (Use With Three Inch And Six Inch Risers Kits)
    ELBOW KIT
    (Use With Three Inch And Six Inch Risers Kits)
  • 4
    54-815504272 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 5
    32-14358001 TUBE
    TUBE
  • 6
    8M0115149 PIPE
    PIPE
  • 7
    807166A1 SHUTTER ASSEMBLY, Water
    SHUTTER ASSEMBLY, Water
  • 8
    25-807167 GROMMET
    GROMMET
  • 9
    10-8M0113174 SCREW, (.375-16 x 1.25)
    SCREW, (.375-16 x 1.25)
  • 10
    13-41471 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • NS
    19-8M0074364 COVER, Hose Clamp End
    COVER, Hose Clamp End
  • 11
    861776A2 PLATE KIT
    (Through Transom)
    PLATE KIT
    (Through Transom)
  • 12
    10-8M0113180 SCREW, (.375-16 x 1.00)
    (Through Transom)
    SCREW, (.375-16 x 1.00)
    (Through Transom)
  • 13
    13-41471 LOCKWASHER, (.375)
    (Through Transom)
    LOCKWASHER, (.375)
    (Through Transom)
