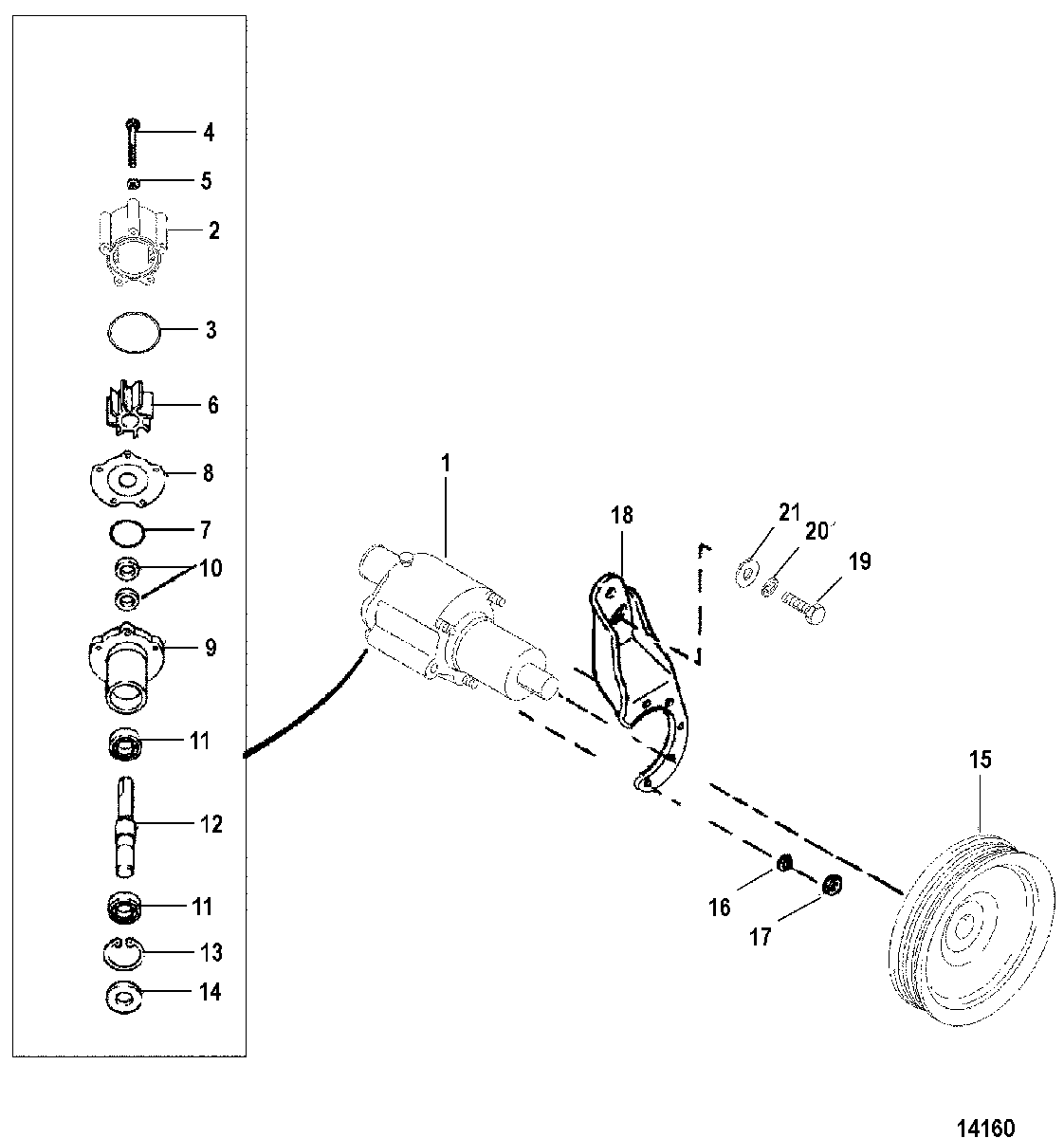

Sea Water Pump Assembly для Mercruiser - 350 MAG MPI ALPHA/BRAVO 0L331599 THRU 0M299999
-
№АртикулНазвание
-
146-807151A9 PUMP ASSEMBLY, Sea WaterPUMP ASSEMBLY, Sea Water
-
246-807151A14 BODY/IMPELLER KITBODY/IMPELLER KIT
-
325-33465 O-RINGO-RING
-
410-807356 SCREW, (.312-18 x 2.680)SCREW, (.312-18 x 2.680)
-
410-74822 SCREW, (.312-18 x 3.500)SCREW, (.312-18 x 3.500)
-
512-814806 WASHER, (.344 x .688 x .065) Stainless SteelWASHER, (.344 x .688 x .065) Stainless Steel
-
647-59362T1 IMPELLERIMPELLER
-
725-94288 QUAD RINGQUAD RING
-
894576 WEAR PLATE (INNER)WEAR PLATE (INNER)
-
946-94913A5 HOUSING ASSEMBLY, PumpHOUSING ASSEMBLY, Pump
-
1026-90562 SEAL, (1.254 x .312)SEAL, (1.254 x .312)
-
1130-72961 BEARING, BallBEARING, Ball
-
1259501A1 SHAFTSHAFT
-
1353-23720 RING, RetainingRING, Retaining
-
1426-72785 SEALSEAL
-
15861579 PULLEY
Reference Service Bulletin MC-00-003 and Parts Bulletin QS-98-001PULLEY
Reference Service Bulletin MC-00-003 and Parts Bulletin QS-98-001 -
1613-39107 LOCKWASHER, (.312-24)LOCKWASHER, (.312-24)
-
1711-21908 NUT, (.312-18) Cad PlatedNUT, (.312-18) Cad Plated
-
188077491 BRACKETBRACKET
-
1910-34353 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
2013-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
2112-34714 WASHERWASHER
