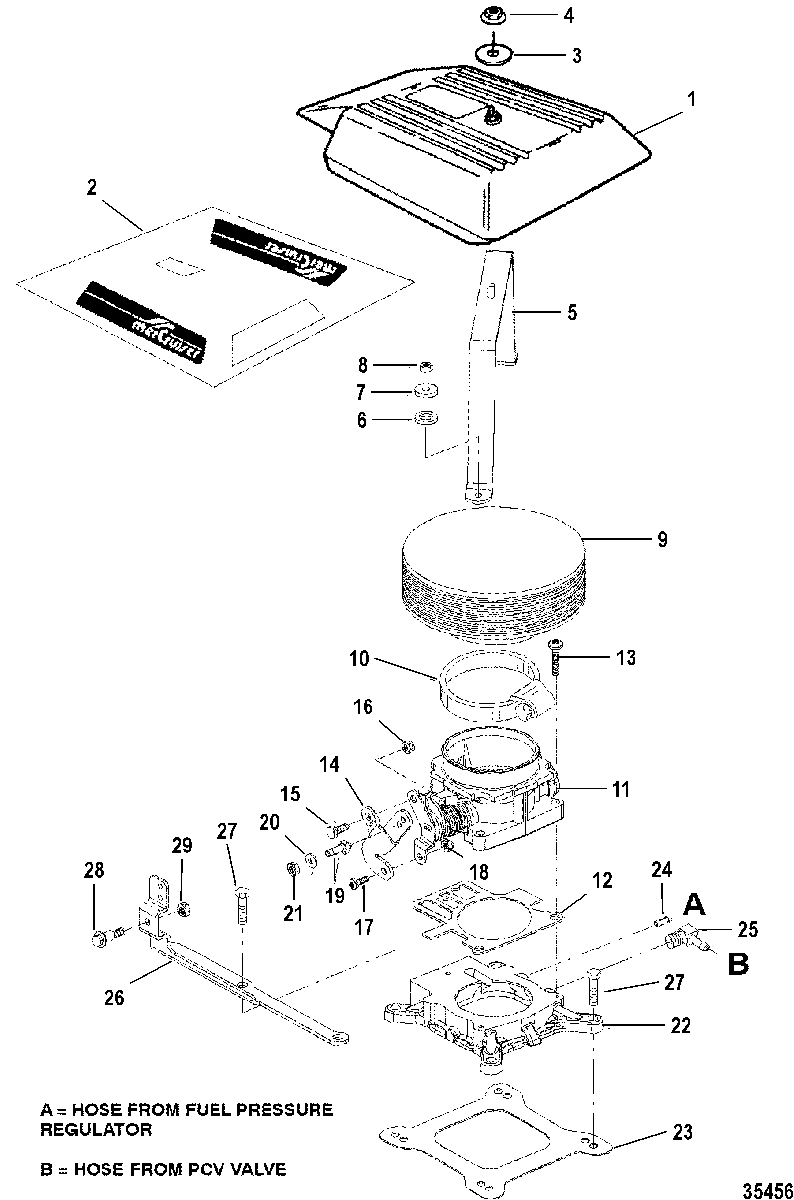

INTAKE PLENUM AND FLAME ARRESTOR для Mercruiser - 350 MAG MPI ALPHA/BRAVO 0L010019 THRU 0L339999

  • №
    Артикул
    Название
  • 1
    18484A3 COVER
    COVER
  • 2
    37-861314A14 DECAL SET
    DECAL SET
  • 3
    12-86400 WASHER
    WASHER
  • 4
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
  • 5
    861408 BRACKET, Flame Arrestor
    BRACKET, Flame Arrestor
  • 6
    12-30119 WASHER, (.875 Inch Outside Diameter)
    WASHER, (.875 Inch Outside Diameter)
  • 7
    12-26907 WASHER (5/8 IN. O.D.)
    WASHER (5/8 IN. O.D.)
  • 8
    11-64015 NUT, (.250-20)
    NUT, (.250-20)
  • 9
    861259 FLAME ARRESTOR
    FLAME ARRESTOR
  • 10
    54-815504256 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 11
    861536A1 THROTTLE BODY ASSEMBLY
    THROTTLE BODY ASSEMBLY
  • 12
    27-807672 GASKET, TBU Relocator Tube
    GASKET, TBU Relocator Tube
  • NS
    8M0097035 SENSOR, Throttle Position
    SENSOR, Throttle Position
  • NS
    803149 VALVE, Intake Air Control
    VALVE, Intake Air Control
  • NS
    10-853680 SCREW KIT
    SCREW KIT
  • 13
    10-807054 SCREW, (.250-20 x 1.00)
    SCREW, (.250-20 x 1.00)
  • 14
    861387 BRACKET, Throttle Linkage
    BRACKET, Throttle Linkage
  • 15
    10-54630 SCREW, (.312-24 x .625)
    SCREW, (.312-24 x .625)
  • 16
    11-82670911 NUT, (.312-24) Stainless Steel
    NUT, (.312-24) Stainless Steel
  • 17
    10-64074 SCREW, (.250-28 x .620)
    SCREW, (.250-28 x .620)
  • 18
    11-8267089 NUT, (.250-28)
    NUT, (.250-28)
  • 19
    16-805526 STUD, (.250-28 x 1.540)
    STUD, (.250-28 x 1.540)
  • 20
    12-20533 WASHER
    WASHER
  • 21
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
  • 22
    861040A1 PLATE, TBI Adaptor
    PLATE, TBI Adaptor
  • 23
    27-41610 GASKET
    GASKET
  • 24
    22-805598 FITTING, (.1875) Barb
    FITTING, (.1875) Barb
  • 25
    22-687271 FITTING, (.250-18) 90 Degree - Brass
    FITTING, (.250-18) 90 Degree - Brass
  • 26
    861388 BRACKET, Throttle Cable
    BRACKET, Throttle Cable
  • 27
    10-74824 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 28
    10-96430 SHOULDER SCREW
    SHOULDER SCREW
  • 29
    11-814101 NUT, (.250-20) Stainless Steel
    NUT, (.250-20) Stainless Steel
  • -
    27-75611A98 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
