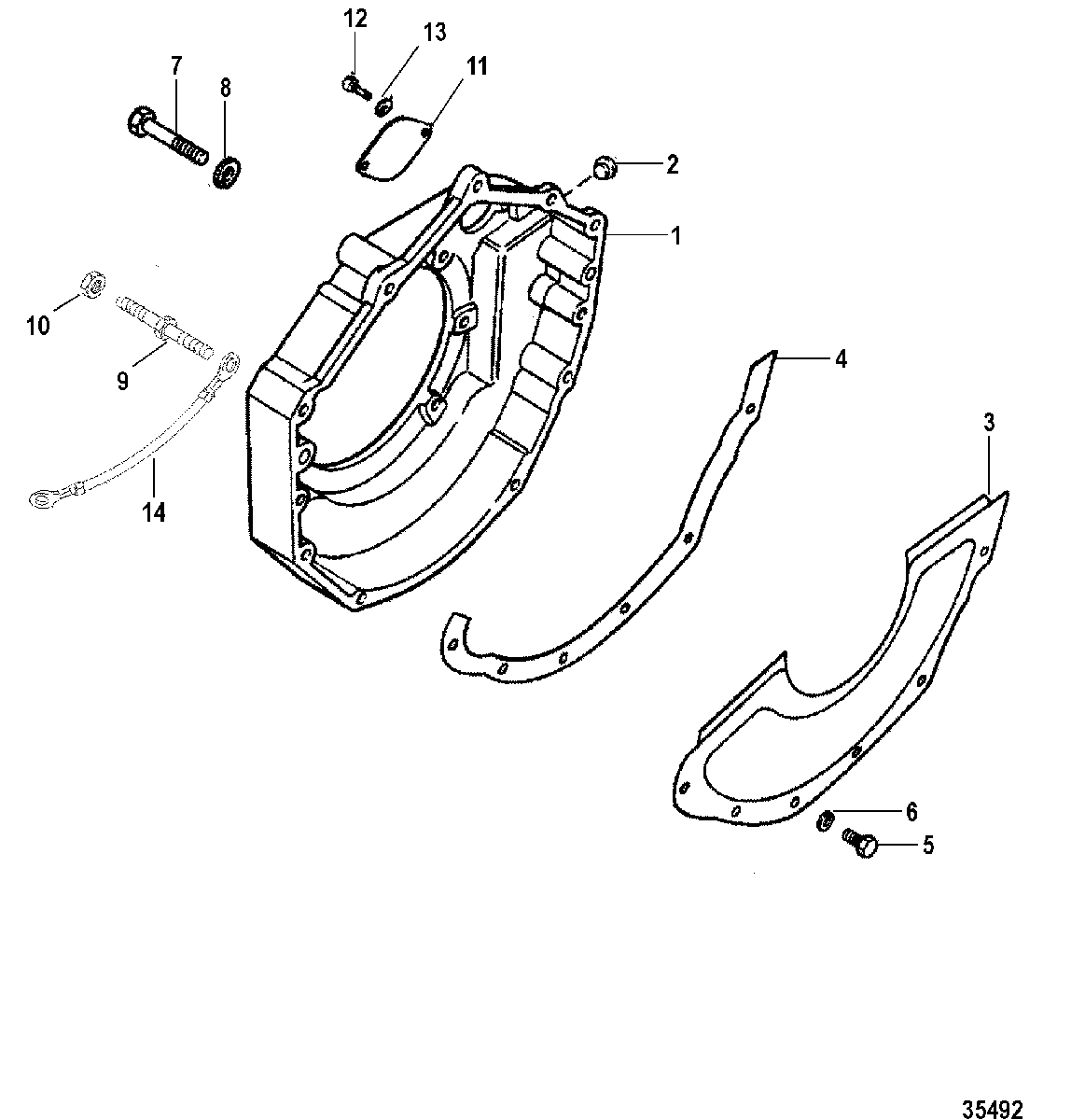

FLYWHEEL HOUSING(WITH BLACKTRAC) для Mercruiser - 350 MAG MPI ALPHA/BRAVO 0L010019 THRU 0L339999

  • №
    Артикул
    Название
  • 1
    814309A1 HOUSING ASSEMBLY
    HOUSING ASSEMBLY
  • 2
    19-12304 PLUG
    PLUG
  • 3
    818718A3 COVER KIT
    COVER KIT
  • 4
    27-86015 GASKET
    GASKET
  • 5
    10-98253 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • 6
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 7
    10-34353 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 7
    10-37612 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 7
    10-47688 SCREW, (.375-16 x 2.750)
    SCREW, (.375-16 x 2.750)
  • 8
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 9
    16-8M2004610 STUD, (.375-16 x 2.130)
    STUD, (.375-16 x 2.130)
  • 10
    11-32219 NUT, (.375-16)
    NUT, (.375-16)
  • 11
    939201 PLATE
    PLATE
  • 12
    10-92913 SCREW, (.437-14 x .750)
    SCREW, (.437-14 x .750)
  • 13
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 14
    84-62826A10 CABLE ASSEMBLY, Ground (21.00 Inches) Black
    CABLE ASSEMBLY, Ground (21.00 Inches) Black
