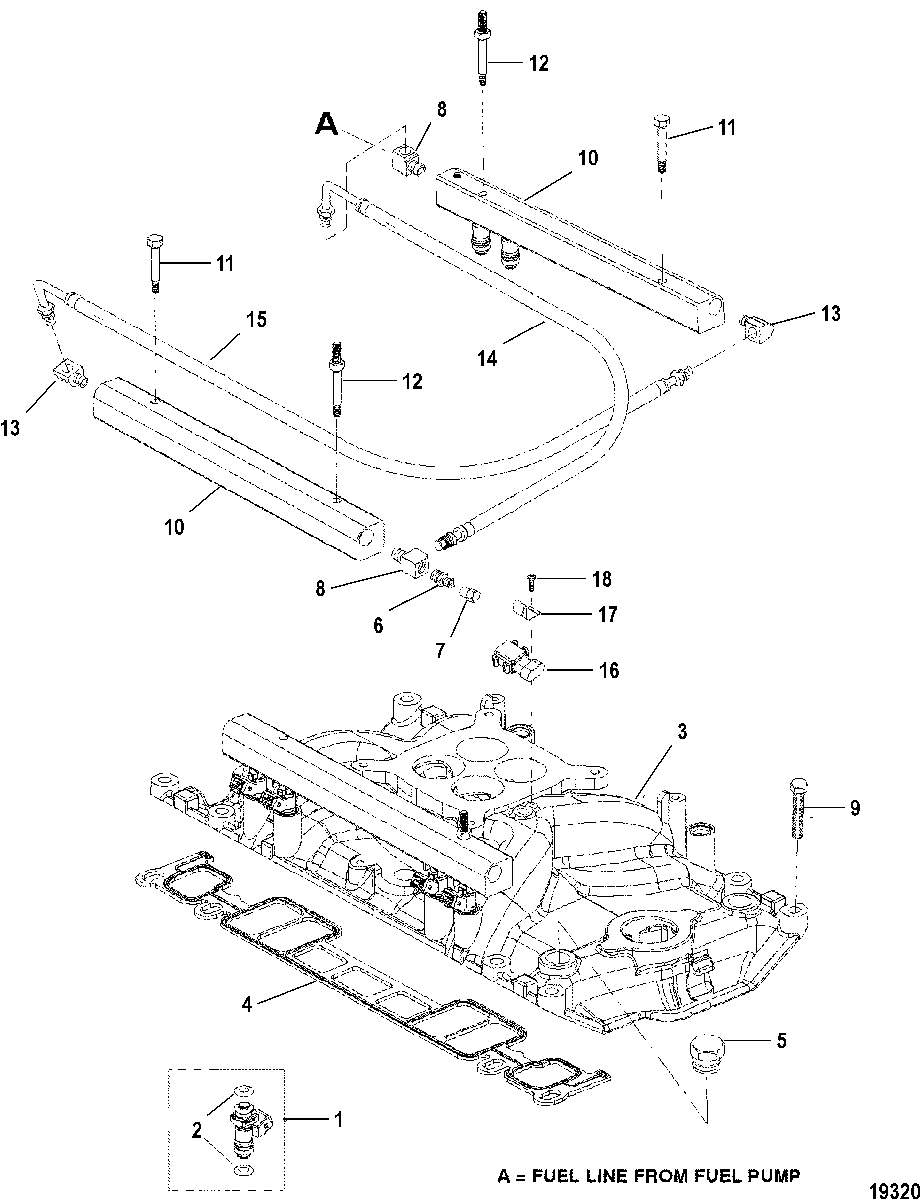

INTAKE MANIFOLD AND FUEL RAILS для Mercruiser - 350 MAG MPI ALPHA/BRAVO 0L010019 THRU 0L339999

  • №
    Артикул
    Название
  • 1
    861260T INJECTOR, Fuel
    INJECTOR, Fuel
  • 2
    25-851889 O-RING
    O-RING
  • 3
    861422A5 MANIFOLD ASSEMBLY, Intake
    MANIFOLD ASSEMBLY, Intake
  • 4
    27-807473A1 GASKET SET
    GASKET SET
  • 5
    22-860075 PLUG, Pipe (.500-14)
    PLUG, Pipe (.500-14)
  • 6
    22-860266 VALVE
    VALVE
  • 7
    19-8M0046566 CAP, Shrader Valve - Brass
    CAP, Shrader Valve - Brass
  • 8
    860265 FITTING
    FITTING
  • 9
    10-808010 SCREW, (.312-18 x 1.375)
    SCREW, (.312-18 x 1.375)
  • 10
    861061T FUEL RAIL
    FUEL RAIL
  • 11
    10-86885 SCREW, (.250-20 x 1.500) Stainless Steel
    SCREW, (.250-20 x 1.500) Stainless Steel
  • 12
    16-845019 STUD, (.250-20 x 2.750)
    STUD, (.250-20 x 2.750)
  • 13
    22-93385 FITTING, (90 Degree)
    FITTING, (90 Degree)
  • 14
    32-861566 LINE, Fuel (21 IN.)
    LINE, Fuel (21 IN.)
  • 15
    32-861570 LINE, Fuel (24 IN.)
    LINE, Fuel (24 IN.)
  • 16
    8M0054726 SENSOR, MAP
    SENSOR, MAP
  • 17
    861198 CLIP
    CLIP
  • 18
    10-823588 SCREW, (#8-32 x .250)
    SCREW, (#8-32 x .250)
  • -
    27-75611A98 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
