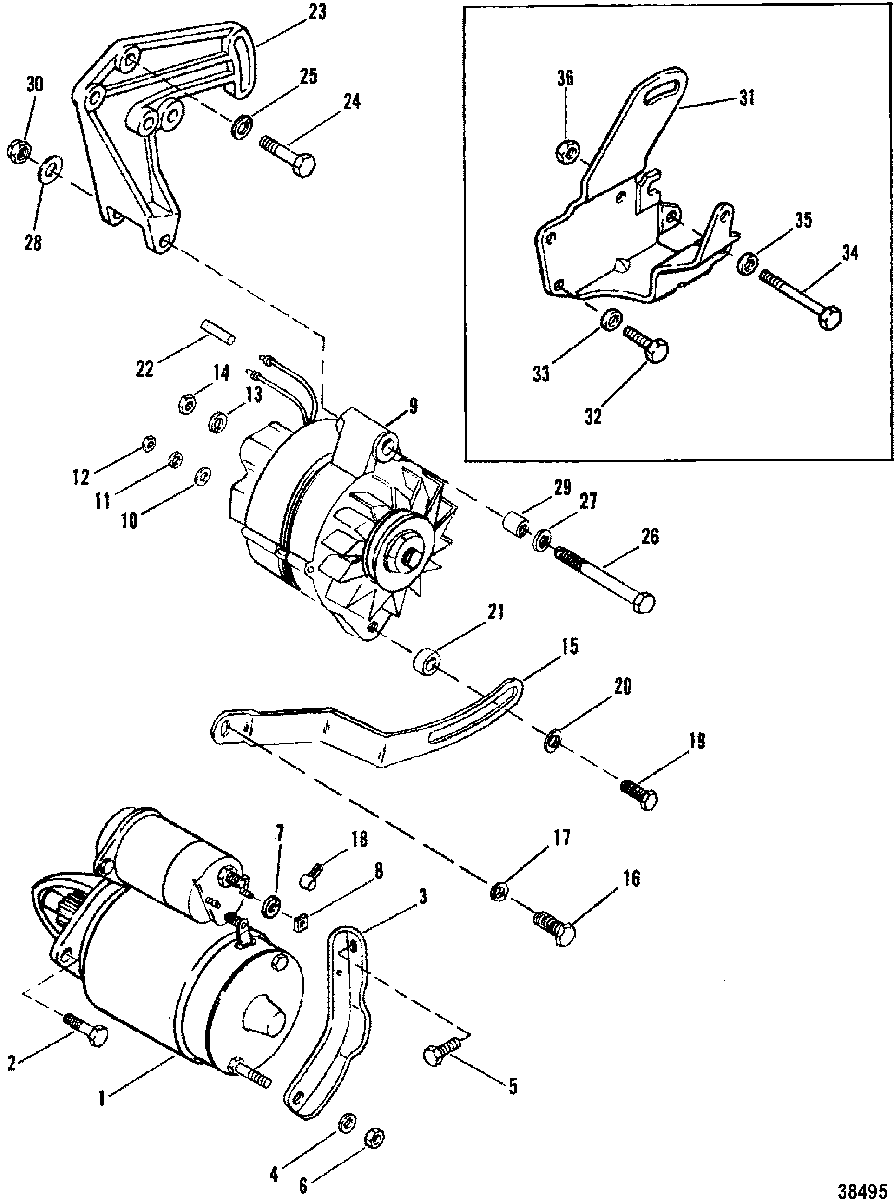

STARTER MOTOR AND ALTERNATOR для Mercruiser - 350 MAG. ALPHA GM 350 V-8 1987-1995 0B525982 THRU 0F600999
-
№АртикулНазвание
-
150-863007A1 STARTER MOTOR ASSEMBLY
12 IN. STARTER MOTORSTARTER MOTOR ASSEMBLY
12 IN. STARTER MOTOR -
210-94435001 BOLT, (.375-16 x 4.600)
12 IN. STARTER MOTORBOLT, (.375-16 x 4.600)
12 IN. STARTER MOTOR -
312404 BRACE
12 IN. STARTER MOTORBRACE
12 IN. STARTER MOTOR -
412-29245 WASHER, (.281 x .500 x .060) Stainless Steel
12 IN. STARTER MOTORWASHER, (.281 x .500 x .060) Stainless Steel
12 IN. STARTER MOTOR -
510-35765A1 SCREW AND LOCKWASHER, (.312-18 x .625)
12 IN. STARTER MOTORSCREW AND LOCKWASHER, (.312-18 x .625)
12 IN. STARTER MOTOR -
150-863007A1 STARTER MOTOR ASSEMBLY, 3-1/4 Diameter End Cap
8 IN. STARTER MOTOR (PG 200) 3-1/4 IN. DIAMETER END CAPSTARTER MOTOR ASSEMBLY, 3-1/4 Diameter End Cap
8 IN. STARTER MOTOR (PG 200) 3-1/4 IN. DIAMETER END CAP -
210-8053432 SCREW, (.375-16 x 4.33)
3-1/4 IN. DIAMETER END CAPSCREW, (.375-16 x 4.33)
3-1/4 IN. DIAMETER END CAP -
611-15874 NUT, (M10)
USE WITH 12 IN. AND 8 IN. STARTER MOTORNUT, (M10)
USE WITH 12 IN. AND 8 IN. STARTER MOTOR -
611-8267088 NUT, (.250-20)
USE WITH 12 IN. AND 8 IN. STARTER MOTORNUT, (.250-20)
USE WITH 12 IN. AND 8 IN. STARTER MOTOR -
713-26996 LOCKWASHER, (#10) Stainless Steel
USE WITH 12 IN. AND 8 IN. STARTER MOTORLOCKWASHER, (#10) Stainless Steel
USE WITH 12 IN. AND 8 IN. STARTER MOTOR -
811-26419 NUT, (#8-32) Brass
USE WITH 12 IN. AND 8 IN. STARTER MOTORNUT, (#8-32) Brass
USE WITH 12 IN. AND 8 IN. STARTER MOTOR -
811-400211 NUT, (M5) Stainless Steel
USE WITH 12 IN. AND 8 IN. STARTER MOTORNUT, (M5) Stainless Steel
USE WITH 12 IN. AND 8 IN. STARTER MOTOR -
150-863007A1 STARTER MOTOR ASSEMBLY
2-7/8 IN. DIAMETER END CAPSTARTER MOTOR ASSEMBLY
2-7/8 IN. DIAMETER END CAP -
210-8053432 SCREW, (.375-16 x 4.33)
8 IN. STARTER MOTOR (PG260) 2-7/8 IN. DIAMETER END CAPSCREW, (.375-16 x 4.33)
8 IN. STARTER MOTOR (PG260) 2-7/8 IN. DIAMETER END CAP -
611-806949 NUT, (M8-1.5)
2-7/8 IN. DIAMETER END CAPNUT, (M8-1.5)
2-7/8 IN. DIAMETER END CAP -
811-400211 NUT, (M5) Stainless Steel
2-7/8 IN. DIAMETER END CAPNUT, (M5) Stainless Steel
2-7/8 IN. DIAMETER END CAP -
9817119A4 ALTERNATOR ASSEMBLY, (55 Ampere)
MANDO #AR-150 MOTOROLA #8MR2039K PRESTOLITE #8EM2003KAALTERNATOR ASSEMBLY, (55 Ampere)
MANDO #AR-150 MOTOROLA #8MR2039K PRESTOLITE #8EM2003KA -
1012-96457 WASHER, Phenolic (.27 x .81 x .062)
MANDO #AR-150 MOTOROLA #8MR2039K PRESTOLITE #8EM2003KAWASHER, Phenolic (.27 x .81 x .062)
MANDO #AR-150 MOTOROLA #8MR2039K PRESTOLITE #8EM2003KA -
1113-26996 LOCKWASHER, (#10) Stainless Steel
MANDO #AR-150 MOTOROLA #8MR2039K PRESTOLITE #8EM2003KALOCKWASHER, (#10) Stainless Steel
MANDO #AR-150 MOTOROLA #8MR2039K PRESTOLITE #8EM2003KA -
1211-79989 NUT, (#10-24) Stainless Steel
MANDO #AR-150 MOTOROLA #8MR2039K PRESTOLITE #8EM2003KANUT, (#10-24) Stainless Steel
MANDO #AR-150 MOTOROLA #8MR2039K PRESTOLITE #8EM2003KA -
1313-21272 LOCKWASHER, (.250)
MANDO #AR-150 MOTOROLA #8MR2039K PRESTOLITE #8EM2003KALOCKWASHER, (.250)
MANDO #AR-150 MOTOROLA #8MR2039K PRESTOLITE #8EM2003KA -
1411-64015 NUT, (.250-20)
MANDO #AR-150 MOTOROLA #8MR2039K PRESTOLITE #8EM2003KANUT, (.250-20)
MANDO #AR-150 MOTOROLA #8MR2039K PRESTOLITE #8EM2003KA -
9817119A4 ALTERNATOR
MANDO #AC-155603ALTERNATOR
MANDO #AC-155603 -
1012-96457 WASHER, Phenolic (.27 x .81 x .062)
MANDO #AC-155603WASHER, Phenolic (.27 x .81 x .062)
MANDO #AC-155603 -
1113-26996 LOCKWASHER, (#10) Stainless Steel
MANDO #AC-155603LOCKWASHER, (#10) Stainless Steel
MANDO #AC-155603 -
1211-79989 NUT, (#10-24) Stainless Steel
MANDO #AC-155603NUT, (#10-24) Stainless Steel
MANDO #AC-155603 -
1312-29245 WASHER, (.281 x .500 x .060) Stainless Steel
MANDO #AC-155603WASHER, (.281 x .500 x .060) Stainless Steel
MANDO #AC-155603 -
1411-94330 NUT, (.250-20) Brass
MANDO #AC-155603NUT, (.250-20) Brass
MANDO #AC-155603 -
1585013T BRACEBRACE
-
1610-98261 SCREW, (.375-16 x .750)
(ALPHA ENGINES)SCREW, (.375-16 x .750)
(ALPHA ENGINES) -
1610-26487 SCREW, (.375-16 x 1.12)
(BRAVO ENGINES)SCREW, (.375-16 x 1.12)
(BRAVO ENGINES) -
1713-35048 LOCKWASHER, (.375)
(BRAVO ENGINES)LOCKWASHER, (.375)
(BRAVO ENGINES) -
1885-79695T BOOT, Insulator - BlackBOOT, Insulator - Black
-
1910-29198 SCREW AND LOCKWASHER, (.312-18 x .875)SCREW AND LOCKWASHER, (.312-18 x .875)
-
2012-26168 WASHERWASHER
-
2123-52095 SPACER
(EARLY MODELS)SPACER
(EARLY MODELS) -
225790811 SLEEVE, (10.00 Inches Bulk)SLEEVE, (10.00 Inches Bulk)
-
2387115A1 BRACKET
CAST MOUNTING BRACKETBRACKET
CAST MOUNTING BRACKET -
2410-37612 SCREW, (.375-16 x 1.250)
CAST MOUNTING BRACKETSCREW, (.375-16 x 1.250)
CAST MOUNTING BRACKET -
2410-34354 SCREW, (.375-16 x 1.50)
CAST MOUNTING BRACKETSCREW, (.375-16 x 1.50)
CAST MOUNTING BRACKET -
2513-35048 LOCKWASHER, (.375)
CAST MOUNTING BRACKETLOCKWASHER, (.375)
CAST MOUNTING BRACKET -
2610-48308 SCREW, (.375-24 x 3.750)
CAST MOUNTING BRACKETSCREW, (.375-24 x 3.750)
CAST MOUNTING BRACKET -
2712-20553 WASHER, (.406 x .734 x .063)
CAST MOUNTING BRACKETWASHER, (.406 x .734 x .063)
CAST MOUNTING BRACKET -
2812-34714 WASHER
CAST MOUNTING BRACKETWASHER
CAST MOUNTING BRACKET -
2923-33186 BUSHING
CAST MOUNTING BRACKETBUSHING
CAST MOUNTING BRACKET -
3011-23161 NUT, (.375-24)
CAST MOUNTING BRACKETNUT, (.375-24)
CAST MOUNTING BRACKET -
3115083T BRACKET
STAMPED MOUNTING BRACKETBRACKET
STAMPED MOUNTING BRACKET -
3210-37612 SCREW, (.375-16 x 1.250)
STAMPED MOUNTING BRACKETSCREW, (.375-16 x 1.250)
STAMPED MOUNTING BRACKET -
3312-20553 WASHER, (.406 x .734 x .063)
STAMPED MOUNTING BRACKETWASHER, (.406 x .734 x .063)
STAMPED MOUNTING BRACKET -
3210-34353 SCREW, (.375-16 x 1.00)
STAMPED MOUNTING BRACKETSCREW, (.375-16 x 1.00)
STAMPED MOUNTING BRACKET -
3312-20553 WASHER, (.406 x .734 x .063)
STAMPED MOUNTING BRACKETWASHER, (.406 x .734 x .063)
STAMPED MOUNTING BRACKET -
3210-48424 SCREW, (.375-16 x 1.620)
STAMPED MOUNTING BRACKETSCREW, (.375-16 x 1.620)
STAMPED MOUNTING BRACKET -
3313-35048 LOCKWASHER, (.375)
STAMPED MOUNTING BRACKETLOCKWASHER, (.375)
STAMPED MOUNTING BRACKET -
3410-56743 SCREW, (.375-24 x 3.125)
STAMPED MOUNTING BRACKETSCREW, (.375-24 x 3.125)
STAMPED MOUNTING BRACKET -
3512-34714 WASHER
STAMPED MOUNTING BRACKETWASHER
STAMPED MOUNTING BRACKET -
3611-23161 NUT, (.375-24)
STAMPED MOUNTING BRACKETNUT, (.375-24)
STAMPED MOUNTING BRACKET
