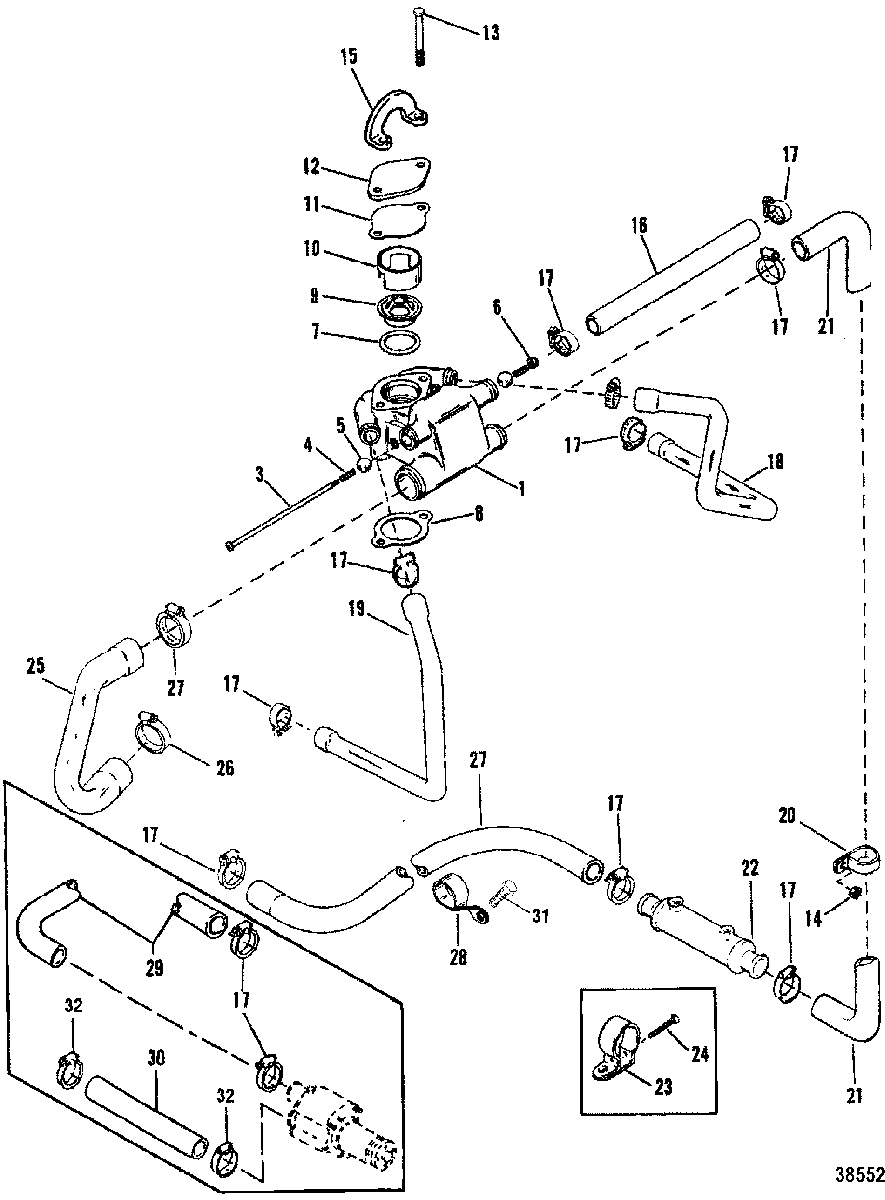

STANDARD COOLING SYSTEM(DESIGN II) для Mercruiser - 350 MAG. ALPHA GM 350 V-8 1987-1995 0B525982 THRU 0F600999
‹-+›
-
№АртикулНазвание
-
116413A9 HOUSING ASSEMBLY, Thermostat
(USE W/O CHECK BALLS)HOUSING ASSEMBLY, Thermostat
(USE W/O CHECK BALLS) -
116413A3 HOUSING ASSEMBLY, Thermostat
USE WITH CHECK BALLS REF. #5HOUSING ASSEMBLY, Thermostat
USE WITH CHECK BALLS REF. #5 -
310-17989 SCREW, (#10-32 x 8.600)
USE WITH CHECK BALLS REF. #5SCREW, (#10-32 x 8.600)
USE WITH CHECK BALLS REF. #5 -
424-75533 SPRING
USE WITH CHECK BALLS REF. #5SPRING
USE WITH CHECK BALLS REF. #5 -
530-98475 BALL, Nylon
USE WITH CHECK BALLS REF. #5BALL, Nylon
USE WITH CHECK BALLS REF. #5 -
611-826709106 NUT, (#10-32)
USE WITH CHECK BALLS REF. #5NUT, (#10-32)
USE WITH CHECK BALLS REF. #5 -
725-30224 O-RING, (1.859 x .139)O-RING, (1.859 x .139)
-
827-530451 GASKETGASKET
-
98M0089715 THERMOSTAT
(140 DEGREES)THERMOSTAT
(140 DEGREES) -
98M0109441 THERMOSTAT, 71A°C (160A°F)
BODENSEETHERMOSTAT, 71A°C (160A°F)
BODENSEE -
1023-806922 SLEEVESLEEVE
-
1127-331792 GASKETGASKET
-
1217494A1 COVER KITCOVER KIT
-
1310-60410 SCREW, (.375-16 x 4.250)SCREW, (.375-16 x 4.250)
-
1411-29250 NUT, (.312-24)NUT, (.312-24)
-
1512552 LIFTING EYELIFTING EYE
-
1632-8M0062614 HOSE, (48.00 Inches Bulk)
(STARBOARD/PORT) (ALPHA ONLY) (USE WITH CAST IRON EXHAUST ELBOW)HOSE, (48.00 Inches Bulk)
(STARBOARD/PORT) (ALPHA ONLY) (USE WITH CAST IRON EXHAUST ELBOW) -
1632-8M0062614 HOSE, (48.00 Inches Bulk)
(STARBOARD) (BRAVO AND 350 MAGNUM ALPHA) (USE WITH STAINLESS STEEL EXHAUST ELBOW)HOSE, (48.00 Inches Bulk)
(STARBOARD) (BRAVO AND 350 MAGNUM ALPHA) (USE WITH STAINLESS STEEL EXHAUST ELBOW) -
1632-817435 HOSE
(PORT) (BRAVO AND 350 MAGNUM ALPHA) (USE WITH STAINLESS STEEL EXHAUST ELBOW)HOSE
(PORT) (BRAVO AND 350 MAGNUM ALPHA) (USE WITH STAINLESS STEEL EXHAUST ELBOW) -
1754-815504220 CLAMP, Worm GearCLAMP, Worm Gear
-
1832-160211 HOSE (PORT)HOSE (PORT)
-
1932-871171 HOSE (STARBOARD)HOSE (STARBOARD)
-
2054-47715 CLIPCLIP
-
2132-16012 HOSEHOSE
-
2299356A2 COOLER ASSEMBLYCOOLER ASSEMBLY
-
2365970T1 BRACKETBRACKET
-
2410-41408 SCREW, (#10-32 x 1.50)SCREW, (#10-32 x 1.50)
-
2532-861590A05 HOSEHOSE
-
2654-815504232 CLAMP, Worm Gear (2.50 Diameter)CLAMP, Worm Gear (2.50 Diameter)
-
2732-96246A4 HOSE
ALPHAHOSE
ALPHA -
2854-64489 CLAMP
ALPHACLAMP
ALPHA -
2932-887952 HOSE
BRAVOHOSE
BRAVO -
3032-8M0062666 HOSE, (96.00 Inches Bulk)
BRAVOHOSE, (96.00 Inches Bulk)
BRAVO -
3110-98261 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
3254-815504222 CLAMP, Worm Gear (1.98 DIameter)CLAMP, Worm Gear (1.98 DIameter)
-
146-72774A32 PUMP ASSEMBLY, Sea Water - CompletePUMP ASSEMBLY, Sea Water - Complete
-
246-807151A14 BODY/IMPELLER KITBODY/IMPELLER KIT
-
387631A4 COVER KITCOVER KIT
-
410-73275 SCREW, (.312-18 x 2.88)SCREW, (.312-18 x 2.88)
-
410-52743 SCREW, (.312-18 x 3.750)SCREW, (.312-18 x 3.750)
-
512-20084 WASHER, (.328 x .562 x .062)WASHER, (.328 x .562 x .062)
-
627-8052151 GASKETGASKET
-
794916 WEAR PLATEWEAR PLATE
-
827-94914 GASKETGASKET
-
919-59504 PLUGPLUG
-
1047-59362T1 IMPELLERIMPELLER
-
NS28-8M0032837 KEYKEY
-
1194576 WEAR PLATEWEAR PLATE
-
1225-94288 QUAD RINGQUAD RING
-
1346-94913A1 HOUSING ASSEMBLY, Water PumpHOUSING ASSEMBLY, Water Pump
-
1426-90562 SEAL, (1.254 x .312)SEAL, (1.254 x .312)
-
1530-72961 BEARING, BallBEARING, Ball
-
1659501A1 SHAFTSHAFT
-
1753-23720 RING, RetainingRING, Retaining
-
1826-72785 SEALSEAL
-
1947530 HUBHUB
-
2073798A1 PULLEYPULLEY
-
2110-47277 SCREW, (.312-24 x .750)SCREW, (.312-24 x .750)
-
2213-39107 LOCKWASHER, (.312-24)LOCKWASHER, (.312-24)
-
2313-39107 LOCKWASHER, (.312-24)LOCKWASHER, (.312-24)
-
2411-21908 NUT, (.312-18) Cad PlatedNUT, (.312-18) Cad Plated
-
2589535T BRACKETBRACKET
-
2610-34353 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
2713-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
2812-34714 WASHERWASHER
-
2989609 BRACEBRACE
-
3010-26487 SCREW, (.375-16 x 1.12)SCREW, (.375-16 x 1.12)
-
3113-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
3212-34714 WASHERWASHER
-
3310-35786 SCREW, (.375-24 x 1.00)SCREW, (.375-24 x 1.00)
-
3413-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
3511-46335 NUT, (.375-24)NUT, (.375-24)
-
3622-328022 PLUG, Pipe (.125-27) (FOR WATER PUMP BODY)PLUG, Pipe (.125-27) (FOR WATER PUMP BODY)
-
3757-74271Q V BELT, (35.125 In) (35 IN.)V BELT, (35.125 In) (35 IN.)
-
3832-88795 HOSEHOSE
-
3954-815504220 CLAMP, Worm GearCLAMP, Worm Gear
