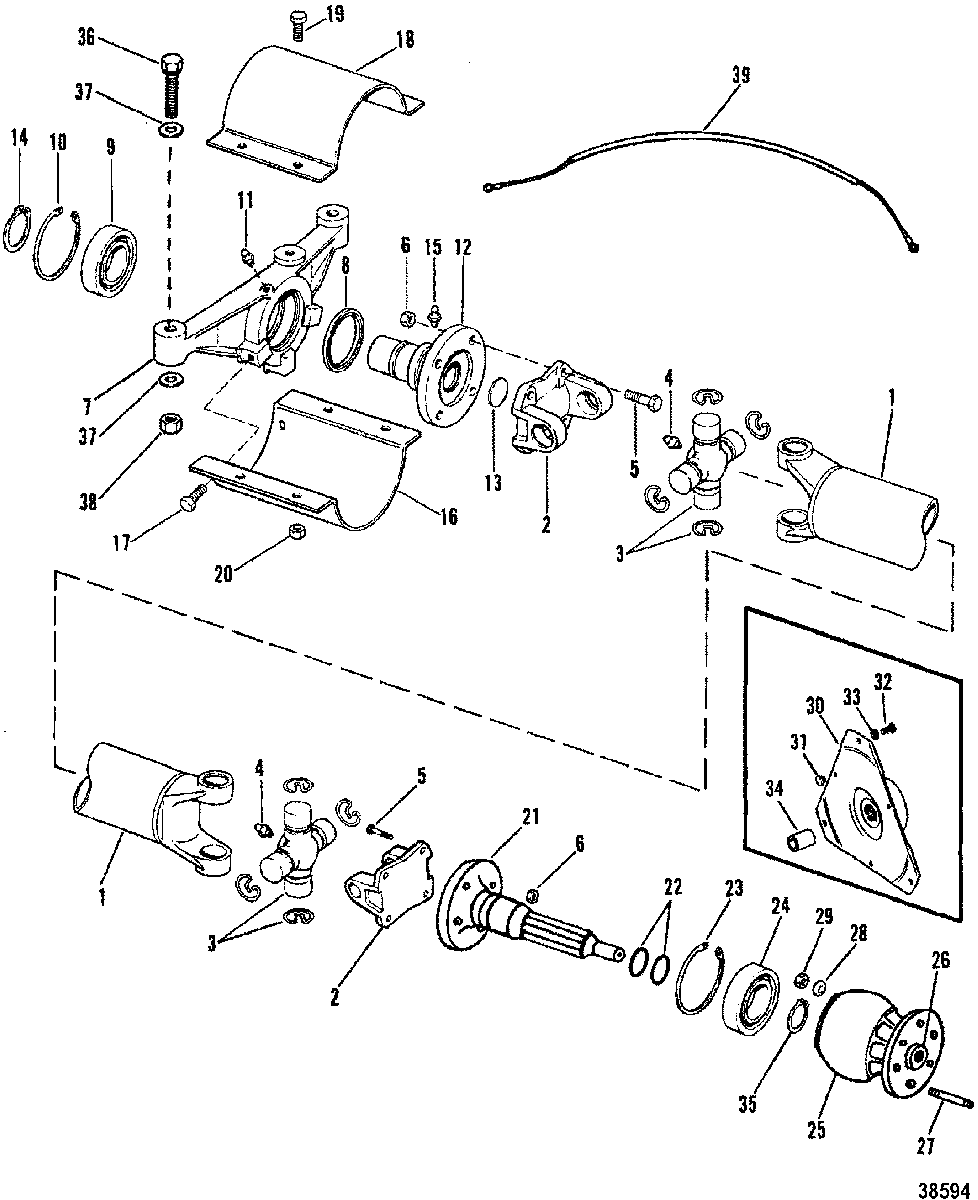

DRIVESHAFT EXTENSION COMPONENTS(JACKSHAFT MODELS) для Mercruiser - 350 MAG. ALPHA GM 350 V-8 1987-1995 0B525982 THRU 0F600999

  • №
    Артикул
    Название
  • 1
    45-94819A3 DRIVESHAFT ASSEMBLY
    DRIVESHAFT ASSEMBLY
  • 2
    52504T FLANGE, Yoke
    FLANGE, Yoke
  • 3
    61221T CROSS AND BEARING, With Clips
    CROSS AND BEARING, With Clips
  • 4
    22-74036 FITTING, Grease
    FITTING, Grease
  • 5
    10-805159 SCREW, (.437-20 x 1.500)
    SCREW, (.437-20 x 1.500)
  • 6
    11-34933 NUT, (.437-20) Stainless Steel
    NUT, (.437-20) Stainless Steel
  • 7
    817416A4 SUPPORT ASSEMBLY
    SUPPORT ASSEMBLY
  • 8
    26-93924 SEAL
    SEAL
  • 9
    30-93944A2 BEARING
    BEARING
  • 10
    53-93914 RING, Retaining
    RING, Retaining
  • 11
    22-74036 FITTING, Grease
    FITTING, Grease
  • 12
    93908A1 SHAFT ASSEMBLY (INPUT)
    SHAFT ASSEMBLY (INPUT)
  • 13
    19-93921 EXPANSION PLUG
    EXPANSION PLUG
  • 14
    53-93915 RING, Retaining
    RING, Retaining
  • 15
    22-74036 FITTING, Grease
    FITTING, Grease
  • 16
    93918A1 SHIELD, Lower
    SHIELD, Lower
  • 17
    10-76926 SCREW, (.375-16 x .875)
    SCREW, (.375-16 x .875)
  • 18
    93919A1 SHIELD, Upper
    SHIELD, Upper
  • 19
    10-96995 SCREW, (.375-16 x .880)
    SCREW, (.375-16 x .880)
  • 20
    11-82670912 NUT, (.375-16)
    NUT, (.375-16)
  • 21
    93906A2 SHAFT (OUTPUT)
    SHAFT (OUTPUT)
  • 22
    25-25439 O-RING, (.862 x .103)
    O-RING, (.862 x .103)
  • 23
    53-94104 RING, Retaining
    RING, Retaining
  • 24
    30-879194A03 BEARING, Ball
    BEARING, Ball
  • 25
    49736A3 COUPLING ASSEMBLY
    2 PIECE SEAL
    COUPLING ASSEMBLY
    2 PIECE SEAL
  • 26
    23-95966 BUSHING
    2 PIECE SEAL
    BUSHING
    2 PIECE SEAL
  • 27
    16-98532A1 STUD
    2 PIECE SEAL
    STUD
    2 PIECE SEAL
  • 28
    12-34567 WASHER
    2 PIECE SEAL
    WASHER
    2 PIECE SEAL
  • 29
    11-8M2008293 NUT, (.437-20)
    2 PIECE SEAL
    NUT, (.437-20)
    2 PIECE SEAL
  • 30
    18643A8 COUPLING ASSEMBLY
    FULL CIRCLE SEAL
    COUPLING ASSEMBLY
    FULL CIRCLE SEAL
  • 31
    18644 BUMPER, Rubber
    FULL CIRCLE SEAL
    BUMPER, Rubber
    FULL CIRCLE SEAL
  • 32
    10-14883 SCREW, (.375-16 x 1.12)
    FULL CIRCLE SEAL
    SCREW, (.375-16 x 1.12)
    FULL CIRCLE SEAL
  • 33
    12-13510 WASHER
    FULL CIRCLE SEAL
    WASHER
    FULL CIRCLE SEAL
  • 34
    23-49126 BUSHING
    FULL CIRCLE SEAL
    BUSHING
    FULL CIRCLE SEAL
  • 35
    53-8M0141818 RING
    RING
  • 36
    10-57053 SCREW, (.500-20 x 4.500)
    SCREW, (.500-20 x 4.500)
  • 37
    12-42307 WASHER (SPHERICAL)
    WASHER (SPHERICAL)
  • 38
    11-898832 NUT, (.500-20)
    NUT, (.500-20)
  • 39
    84-41575A1 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
