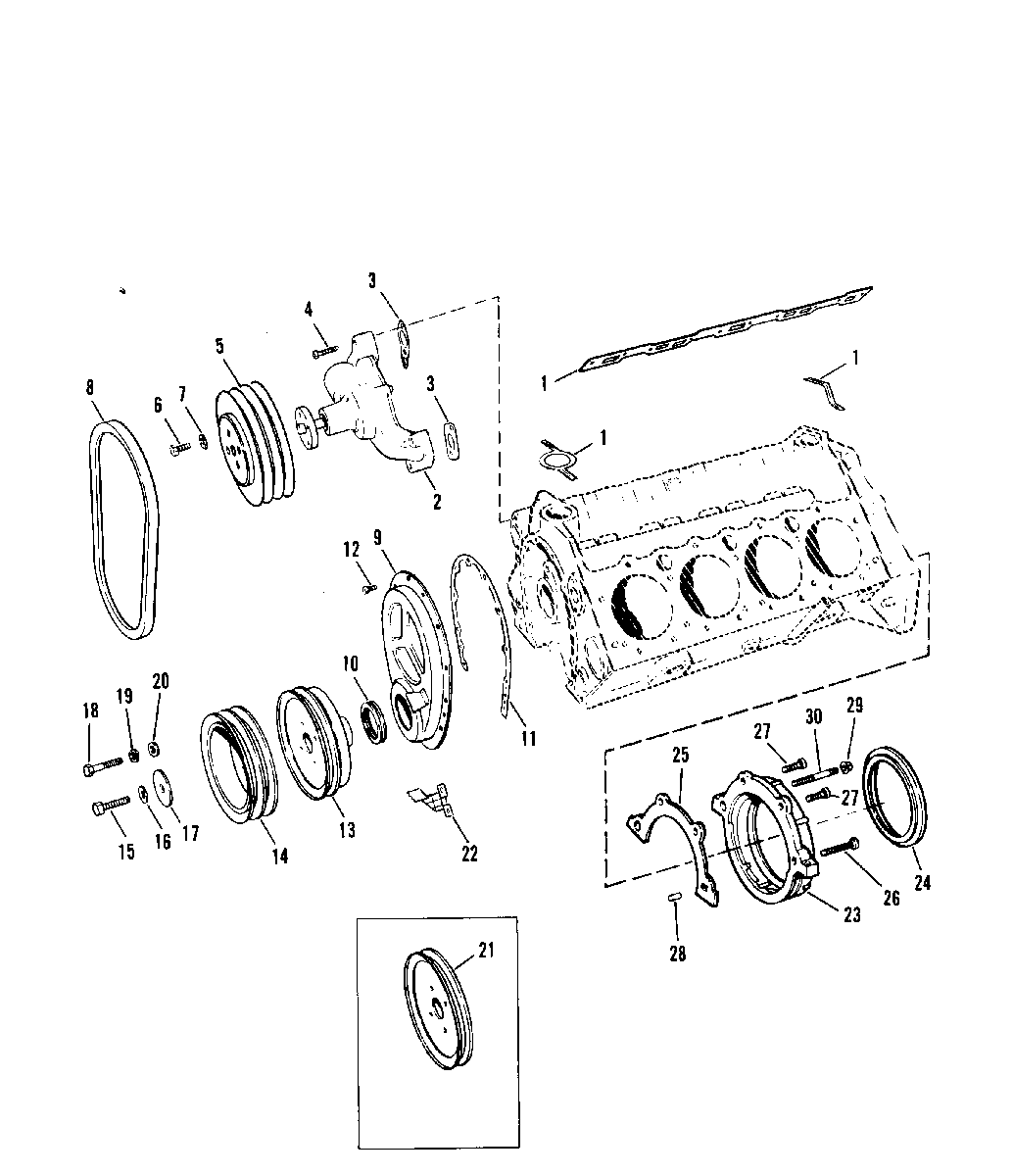

WATER PUMP AND FRONT COVER для Mercruiser - 320 (EFI) GM 350 V-8 1987 0A543604 THRU 0B157602

  • №
    Артикул
    Название
  • 1
    27-17145 GASKET SET, INTAKE MANIFOLD
    GASKET SET, INTAKE MANIFOLD
  • 2
    46-8M0113734 WATER PUMP ASSEMBLY
    WATER PUMP ASSEMBLY
  • 3
    27-34897 GASKET, WATER PUMP MOUNTING
    GASKET, WATER PUMP MOUNTING
  • 4
    10-32132 SCREW, WATER PUMP TO CYLINDER BLOCK (1-3/4")
    SCREW, WATER PUMP TO CYLINDER BLOCK (1-3/4")
  • 4
    10-47688 SCREW, WATER PUMP TO CYLINDER BLOCK (2-3/4")
    SCREW, WATER PUMP TO CYLINDER BLOCK (2-3/4")
  • 4
    10-52200 SCREW, WATER PUMP TO CYLINDER BLOCK (1-1/2")
    SCREW, WATER PUMP TO CYLINDER BLOCK (1-1/2")
  • 5
    15120T PULLEY, WATER PUMP (3 GROOVE)
    PULLEY, WATER PUMP (3 GROOVE)
  • 6
    10-47277 SCREW, PULLEY TO WATER PUMP (3/4")
    SCREW, PULLEY TO WATER PUMP (3/4")
  • 7
    13-39107 LOCKWASHER, WATER PUMP PULLEY SCREW
    LOCKWASHER, WATER PUMP PULLEY SCREW
  • 8
    57-93658Q BELT, ALTERNATOR
    BELT, ALTERNATOR
  • 9
    8M0127828 COVER, CRANKCASE FRONT
    COVER, CRANKCASE FRONT
  • 10
    26-97335 OIL SEAL, COVER
    OIL SEAL, COVER
  • 11
    27-14250 GASKET, COVER
    GASKET, COVER
  • 12
    10-8M0040582 SCREW, COVER
    SCREW, COVER
  • 13
    72650 BALANCER, HARMONIC - CRANKSHAFT
    BALANCER, HARMONIC - CRANKSHAFT
  • 14
    33863T PULLEY
    PULLEY
  • 15
    10-72626 BOLT, PULLEY AND HARMONIC BALANCER
    BOLT, PULLEY AND HARMONIC BALANCER
  • 16
    13-39131 LOCKWASHER
    PULLEY AND HARMONIC BALANCER BOLT
    LOCKWASHER
    PULLEY AND HARMONIC BALANCER BOLT
  • 17
    12-35332001 WASHER, PULLEY AND HARMONIC BALANCER BOLT
    WASHER, PULLEY AND HARMONIC BALANCER BOLT
  • 18
    10-34352 SCREW, PULLEY (7/8")
    SCREW, PULLEY (7/8")
  • 19
    13-35048 LOCKWASHER, PULLEY SCREW
    LOCKWASHER, PULLEY SCREW
  • 20
    12-20553 WASHER, PULLEY SCREW
    WASHER, PULLEY SCREW
  • 21
    90081A1 PULLEY (1 GROOVE) (W/POWER STEERING)
    PULLEY (1 GROOVE) (W/POWER STEERING)
  • 22
    60661 POINTER, TIMING
    POINTER, TIMING
  • 23
    14239 RETAINER, OIL SEAL (REAR)
    RETAINER, OIL SEAL (REAR)
  • 24
    26-8M0077606 OIL SEAL, CRANKSHAFT (REAR)
    OIL SEAL, CRANKSHAFT (REAR)
  • 25
    27-881715 GASKET, OIL SEAL RETAINER
    GASKET, OIL SEAL RETAINER
  • 26
    10-8M0064241 BOLT, OIL SEAL RETAINER
    BOLT, OIL SEAL RETAINER
  • 27
    10-14242 BOLT, OIL SEAL RETAINER
    BOLT, OIL SEAL RETAINER
  • 28
    17-14263 DOWEL PIN
    DOWEL PIN
  • 29
    11-11996 NUT
    NUT
  • 30
    16-14827 STUD
    STUD
