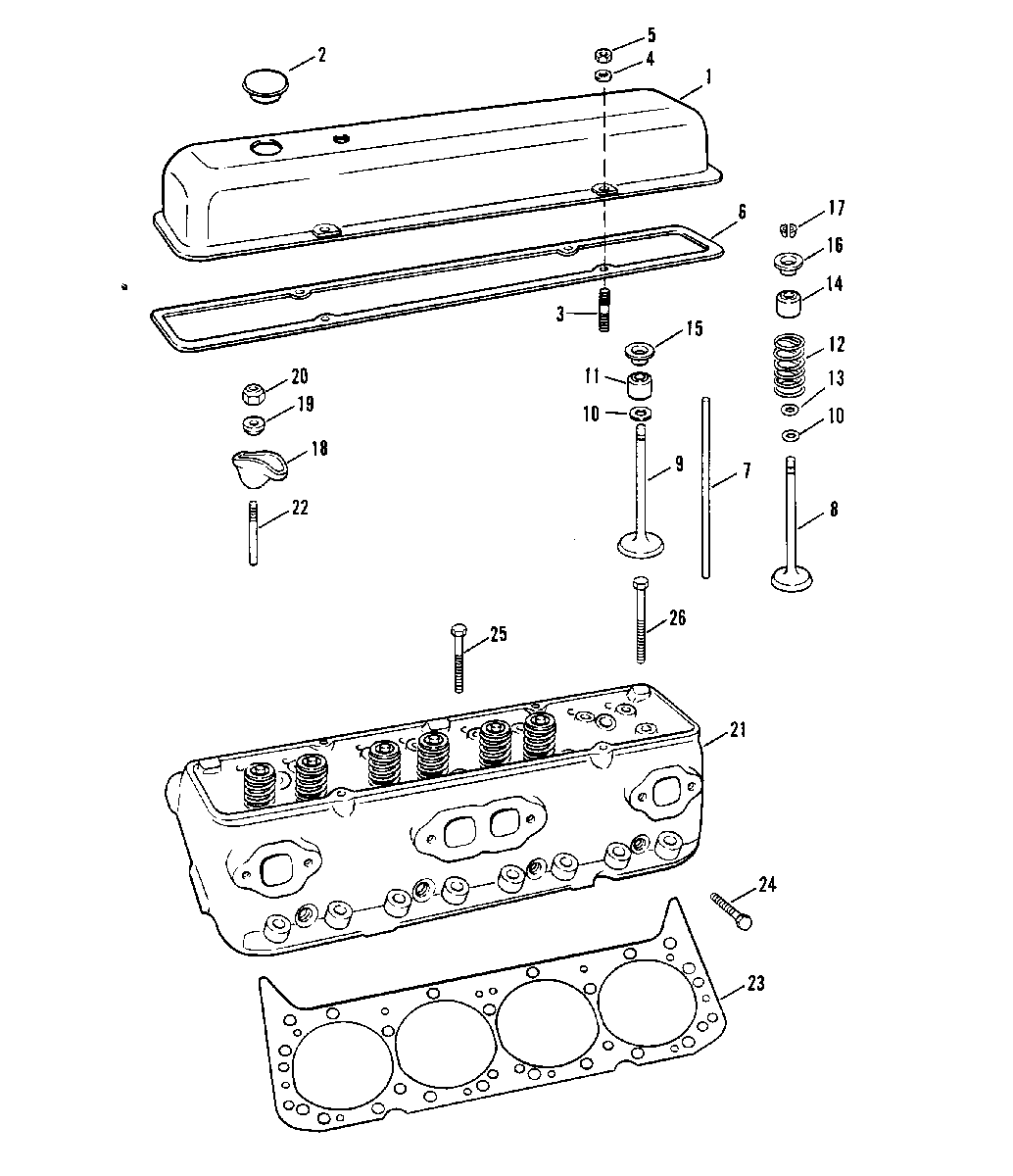

CYLINDER HEAD AND ROCKER COVER для Mercruiser - 320 (EFI) GM 350 V-8 1987 0A543604 THRU 0B157602

  • №
    Артикул
    Название
  • 1
    13470 COVER, ROCKER (STARBOARD)
    COVER, ROCKER (STARBOARD)
  • 1
    13469 COVER, ROCKER (PORT)
    COVER, ROCKER (PORT)
  • 2
    13468 CAP, OIL FILLER
    CAP, OIL FILLER
  • 3
    16-728091 STUD, ROCKER COVER
    STUD, ROCKER COVER
  • 4
    12-20553 WASHER, ROCKER COVER STUD
    WASHER, ROCKER COVER STUD
  • 5
    11-8267089 NUT, ROCKER COVER STUD
    NUT, ROCKER COVER STUD
  • 6
    27-44204 GASKET, ROCKER VALVE COVER
    GASKET, ROCKER VALVE COVER
  • 7
    99948 ROD, VALVE PUSH
    ROD, VALVE PUSH
  • 8
    87284 VALVE, EXHAUST (STANDARD)
    VALVE, EXHAUST (STANDARD)
  • 8
    883265 VALVE, EXHAUST (.015 O.S.)
    VALVE, EXHAUST (.015 O.S.)
  • 9
    97661 VALVE, INLET (STANDARD)
    VALVE, INLET (STANDARD)
  • 9
    97662 VALVE, INLET (.015 O.S.)
    VALVE, INLET (.015 O.S.)
  • 10
    1399-4217 SEAL, VALVE (INLET AND EXHAUST)
    SEAL, VALVE (INLET AND EXHAUST)
  • 11
    26-8M0050563 SEAL, INLET VALVE
    SEAL, INLET VALVE
  • 12
    24-48347 SPRING, VALVE (INLET AND EXHAUST)
    SPRING, VALVE (INLET AND EXHAUST)
  • 13
    N.S.S. SHIM, VALVE SPRING (GM #3731058)
    SHIM, VALVE SPRING (GM #3731058)
  • 14
    34518001 SHIELD, VALVE SPRING CAP
    SHIELD, VALVE SPRING CAP
  • 15
    48348 CAP, INLET VALVE
    CAP, INLET VALVE
  • 16
    11965 ROTATOR, VALVE SPRING - EXHAUST VALVE
    ROTATOR, VALVE SPRING - EXHAUST VALVE
  • 17
    28-547971 KEY, VALVE STEM
    KEY, VALVE STEM
  • 18
    35329 ARM, ROCKER VALVE
    ARM, ROCKER VALVE
  • 19
    35331 BALL UNIT, ROCKER VALVE ARM
    BALL UNIT, ROCKER VALVE ARM
  • 20
    11-34516 NUT, ROCKER VALVE ARM STUD
    NUT, ROCKER VALVE ARM STUD
  • 21
    938-7499 CYLINDER ASSEMBLY
    CYLINDER ASSEMBLY
  • 22
    16-34522 STUD, ROCKER VALVE ARM (.003 O.S.)
    STUD, ROCKER VALVE ARM (.003 O.S.)
  • 22
    16-34521 STUD, ROCKER VALVE ARM (.013 O.S.)
    STUD, ROCKER VALVE ARM (.013 O.S.)
  • 23
    27-75611001 GASKET, CYLINDER HEAD
    GASKET, CYLINDER HEAD
  • 24
    10-11968 BOLT, CYLINDER HEAD TO CYLINDER BLOCK (1-3/4")
    BOLT, CYLINDER HEAD TO CYLINDER BLOCK (1-3/4")
  • 25
    10-119671 BOLT, CYLINDER HEAD TO CYLINDER BLOCK (3")
    BOLT, CYLINDER HEAD TO CYLINDER BLOCK (3")
  • 26
    10-11966 BOLT, CYLINDER HEAD TO CYLINDER BLOCK (3-3/4")
    BOLT, CYLINDER HEAD TO CYLINDER BLOCK (3-3/4")
