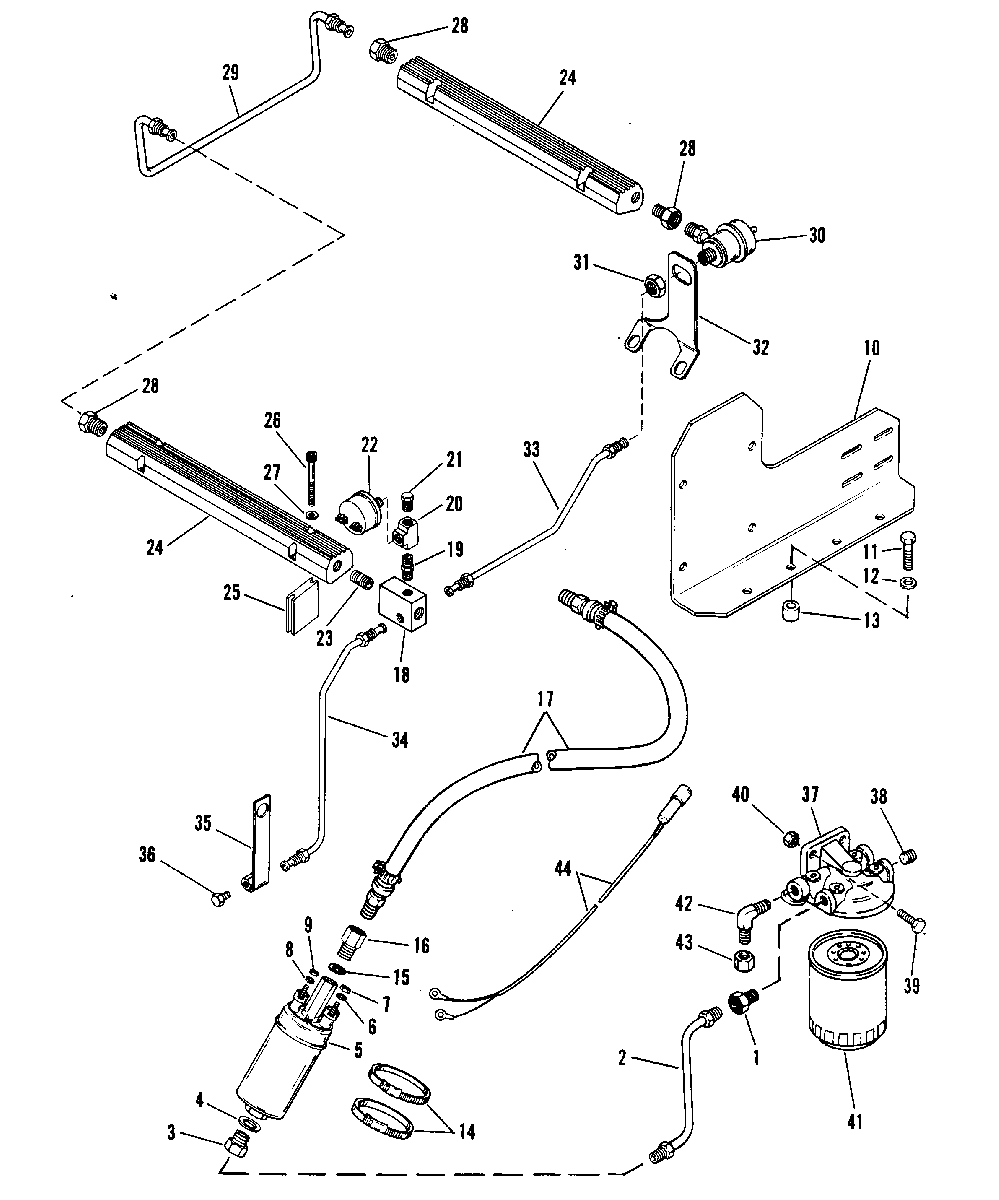

FUEL SYSTEMS для Mercruiser - 320 (EFI) GM 350 V-8 1987 0A543604 THRU 0B157602

  • №
    Артикул
    Название
  • 1
    22-33821 CONNECTOR, FUEL LINE
    CONNECTOR, FUEL LINE
  • 2
    32-15937 FUEL LINE, FILTER TO PUMP
    FUEL LINE, FILTER TO PUMP
  • 3
    22-14384 CONNECTOR, FUEL LINE TO FUEL PUMP
    CONNECTOR, FUEL LINE TO FUEL PUMP
  • 4
    12-14470 WASHER, FUEL LINE CONNECTOR
    WASHER, FUEL LINE CONNECTOR
  • 5
    14351 FUEL PUMP
    FUEL PUMP
  • 6
    12-847883 WASHER, FUEL PUMP STUD
    WASHER, FUEL PUMP STUD
  • 7
    11-401385 NUT, FUEL PUMP STUD (5 MM)
    NUT, FUEL PUMP STUD (5 MM)
  • 8
    12-20670 WASHER, FUEL PUMP STUD
    WASHER, FUEL PUMP STUD
  • 9
    11-400632 NUT, FUEL PUMP STUD (4 MM)
    NUT, FUEL PUMP STUD (4 MM)
  • 10
    15938 BRACKET, FILTER AND FUEL PUMP
    BRACKET, FILTER AND FUEL PUMP
  • 11
    10-42113 SCREW, BRACKET
    SCREW, BRACKET
  • 12
    12-26168 WASHER, BRACKET SCREW
    WASHER, BRACKET SCREW
  • 13
    23-90523 SPACER, BRACKET SCREW
    SPACER, BRACKET SCREW
  • 14
    54-93384 CLAMP, FUEL PUMP
    CLAMP, FUEL PUMP
  • 15
    12-22886 WASHER, FUEL LINE CONNECTOR
    WASHER, FUEL LINE CONNECTOR
  • 16
    22-14383 CONNECTOR, FUEL LINE TO FUEL PUMP
    CONNECTOR, FUEL LINE TO FUEL PUMP
  • 17
    32-15939A1 FUEL LINE (4')
    FUEL LINE (4')
  • 18
    22-14382A1 FUEL FITTING ASSEMBLY
    FUEL FITTING ASSEMBLY
  • 19
    22-32876 NIPPLE
    NIPPLE
  • 20
    22-52930 TEE
    TEE
  • 21
    16516 TANK VALVE
    TANK VALVE
  • 22
    87-14355 SWITCH, OIL PRESSURE
    SWITCH, OIL PRESSURE
  • 23
    22-14475 NIPPLE
    NIPPLE
  • 24
    135161 FUEL RAIL
    FUEL RAIL
  • 25
    135181 SUPPORT, FUEL RAIL
    SUPPORT, FUEL RAIL
  • 26
    10-13684 SCREW, FUEL RAIL
    SCREW, FUEL RAIL
  • 27
    12-30164 WASHER, FUEL RAIL SCREW
    WASHER, FUEL RAIL SCREW
  • 28
    22-33821 CONNECTOR
    CONNECTOR
  • 29
    32-13601 FUEL LINE
    FUEL LINE
  • 30
    12026 REGULATOR, FUEL PRESSURE
    REGULATOR, FUEL PRESSURE
  • 31
    12026 NUT, FUEL PRESSURE REGULATOR
    NUT, FUEL PRESSURE REGULATOR
  • 32
    14302 BRACKET, REGULATOR
    BRACKET, REGULATOR
  • 33
    32-14474 FUEL LINE
    FUEL LINE
  • 34
    32-14473 FUEL LINE
    FUEL LINE
  • 35
    22-14472 FITTING (90 DEGREES)
    FITTING (90 DEGREES)
  • 36
    22-36382 PLUG
    PLUG
  • 37
    89876A3 BASE, FUEL FILTER
    BASE, FUEL FILTER
  • 38
    22-73379 PIPE PLUG, BASE
    PIPE PLUG, BASE
  • 39
    10-26065 SCREW, BASE
    SCREW, BASE
  • 40
    11-82670911 NUT, BASE SCREW
    NUT, BASE SCREW
  • 41
    35-802893Q01 FUEL FILTER
    FUEL FILTER
  • 42
    22-69395 FITTING (90 DEGREES)
    FITTING (90 DEGREES)
  • 43
    22-79484 CAP, FITTING
    CAP, FITTING
  • 44
    84-16278A1 HARNESS ASSEMBLY, FUEL PUMP
    HARNESS ASSEMBLY, FUEL PUMP
