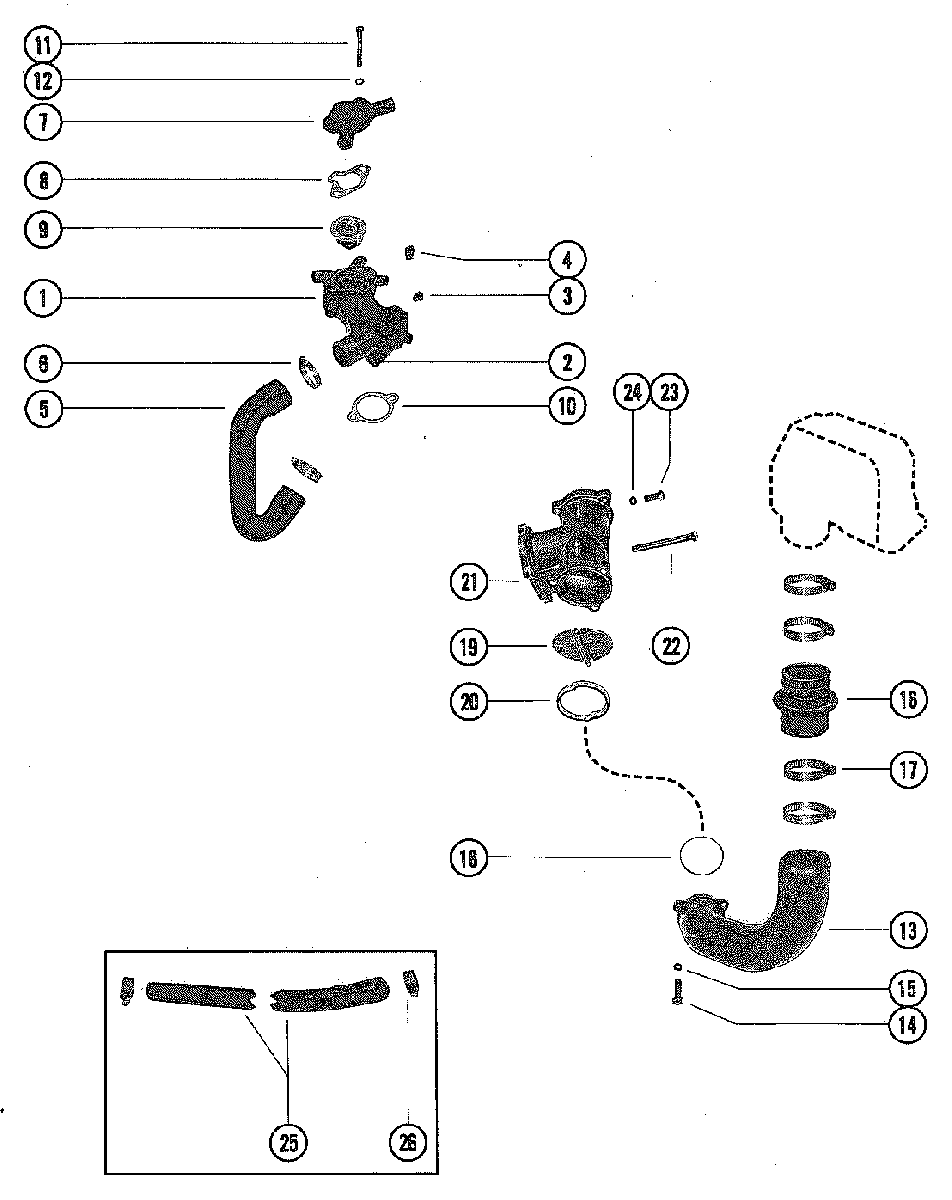

THERMOSTAT HOUSING для Mercruiser - 250 (2 BBL.) GM 350 V-8 1977 4768000 THRU 4908849

  • №
    Артикул
    Название
  • 1
    78984A08 THERMOSTAT HOUSING ASSEMBLY
    THERMOSTAT HOUSING ASSEMBLY
  • 2
    23-47511 SLEEVE, THERMOSTAT HOUSING
    SLEEVE, THERMOSTAT HOUSING
  • 3
    22-47540 PLUG, THERMOSTAT HOUSING
    PLUG, THERMOSTAT HOUSING
  • 4
    22-416223 PLUG, THERMOSTAT HOUSING
    PLUG, THERMOSTAT HOUSING
  • 5
    32-33189 HOSE, THERMOSTAT HOUSING TO WATER PUMP
    HOSE, THERMOSTAT HOUSING TO WATER PUMP
  • 6
    54-815504228 CLAMP, HOSE TO THERMOSTAT HOUSING AND WATER PUMP
    CLAMP, HOSE TO THERMOSTAT HOUSING AND WATER PUMP
  • 7
    47441A1 COVER, THERMOSTAT HOUSING
    COVER, THERMOSTAT HOUSING
  • 8
    27-488181 GASKET, THERMOSTAT HOUSING (UPPER)
    GASKET, THERMOSTAT HOUSING (UPPER)
  • 9
    8M0089715 THERMOSTAT (143 )
    THERMOSTAT (143 )
  • 10
    27-530451 GASKET, THERMOSTAT HOUSING TO MANIFOLD (LOWER)
    GASKET, THERMOSTAT HOUSING TO MANIFOLD (LOWER)
  • 11
    10-60410 SCREW, THERMOSTAT HOUSING ATTACHING (4 1/4")
    SCREW, THERMOSTAT HOUSING ATTACHING (4 1/4")
  • 12
    13-35048 LOCKWASHER, THERMOSTAT HOUSING SCREW
    LOCKWASHER, THERMOSTAT HOUSING SCREW
  • 13
    73738A4 ELBOW, EXHAUST
    ELBOW, EXHAUST
  • 14
    10-60992 SCREW, EXHAUST ELBOW TO EXHAUST SEPARATOR (1 1/4")
    SCREW, EXHAUST ELBOW TO EXHAUST SEPARATOR (1 1/4")
  • 15
    13-35048 LOCKWASHER, EXHAUST ELBOW SCREW
    LOCKWASHER, EXHAUST ELBOW SCREW
  • 16
    70981A3 BELLOWS, EXHAUST ELBOW
    BELLOWS, EXHAUST ELBOW
  • 17
    54-815504456 CLAMP, BELLOWS (SMALL)
    CLAMP, BELLOWS (SMALL)
  • 17
    54-815504372 CLAMP, BELLOWS (LARGE)
    CLAMP, BELLOWS (LARGE)
  • 18
    25-35029 "O" RING, EXHAUST ELBOW TO TRANSOM PLATE
    "O" RING, EXHAUST ELBOW TO TRANSOM PLATE
  • 19
    60930 SHUTTER, WATER-EXHAUST SEPARATOR
    SHUTTER, WATER-EXHAUST SEPARATOR
  • 20
    60931 RETAINER, WATER SHUTTER
    RETAINER, WATER SHUTTER
  • 21
    59825A9 SEPARATOR, EXHAUST
    SEPARATOR, EXHAUST
  • 22
    10-60835 SCREW, EXHAUST SEPARATOR TO GIMBAL HOUSING (5")
    SCREW, EXHAUST SEPARATOR TO GIMBAL HOUSING (5")
  • 23
    10-37612 SCREW, EXHAUST SEPARATOR TO GIMBAL HOUSING (1 1/4")
    SCREW, EXHAUST SEPARATOR TO GIMBAL HOUSING (1 1/4")
  • 24
    13-35048 LOCKWASHER, EXHAUST SEPARATOR SCREW
    LOCKWASHER, EXHAUST SEPARATOR SCREW
  • 25
    32-77479A2 HOSE ADAPTOR ASSEMBLY, THERMOSTAT HSG. TO TRANSOM
    HOSE ADAPTOR ASSEMBLY, THERMOSTAT HSG. TO TRANSOM
  • 26
    54-815504220 CLAMP, HOSE ADAPTOR
    CLAMP, HOSE ADAPTOR
